Thing Types ​

A Thing Type is a schema template that defines a category of devices. It describes the properties a device reports, the events it can emit, and the commands it accepts. Individual devices (Things) are registered against a Thing Type and inherit its structure.

When a Thing Type is created, Fleets automatically creates a default Thing Group for it, which contains all Things of that type. See Thing Groups for details on group management.

Create a Thing Type ​

  1. In your Fleets deployment, go to Device Management > Thing Types.
  2. Click + New Type. The New Type page opens.
  3. Fill in the basic fields:
    • Name (required): A unique identifier for this type within the deployment. Use a reverse-domain format for clarity, for example com.example.thermostat.
    • Version: Defaults to 1.0.0.
    • Description (optional).
    • Tags (optional).
  4. Define the schema by adding properties, events, and commands (see below). All sections are optional. You can leave them empty and add items later by editing the Thing Type.
  5. Click Confirm.

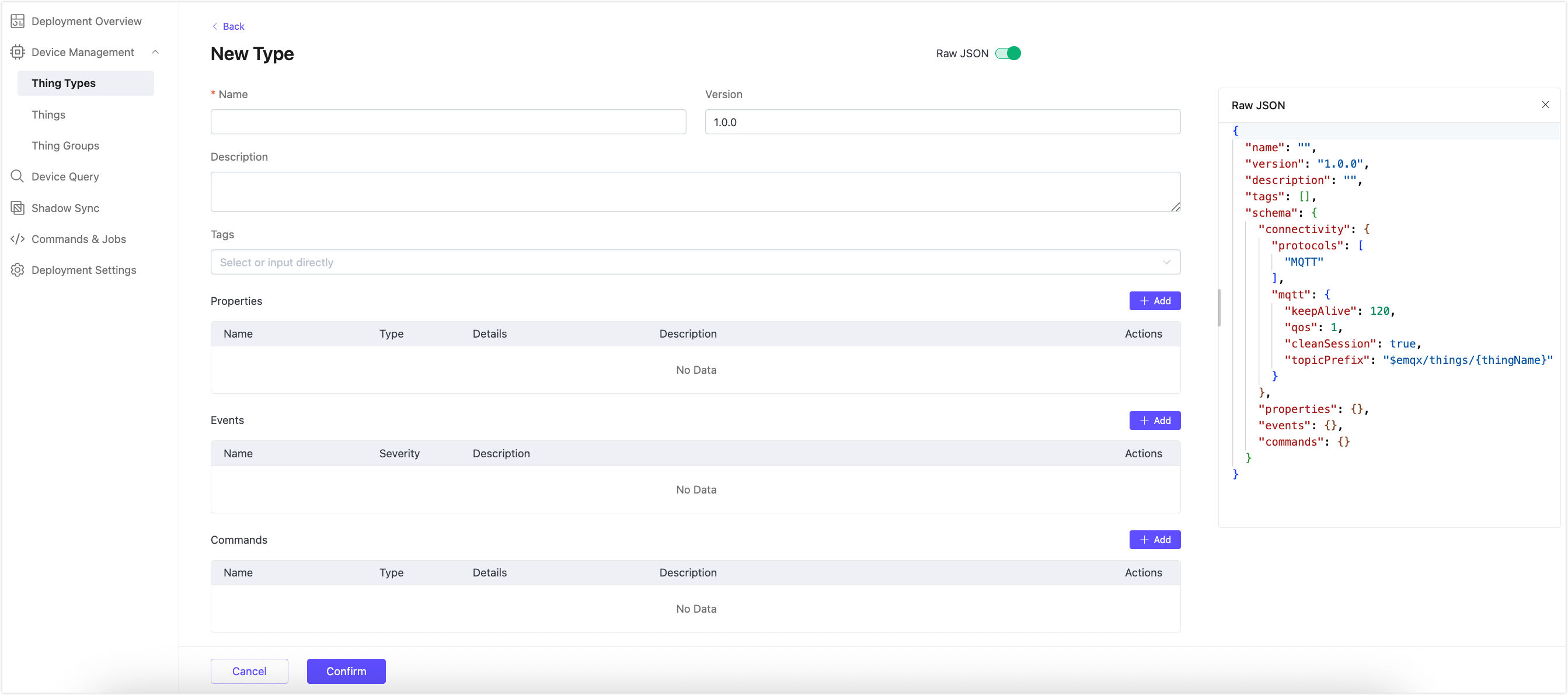

new_thing_type

Add a Property ​

Properties represent state variables that a device reports. A writable property can also be set from the cloud via Device Shadow.

  1. In the Properties section, click + Add.
  2. Fill in the fields:
    • Name: The property name.
    • Type: Select one of string, int, float, boolean, or enum.
    • Writable: Toggle on to allow cloud-side updates via shadow desired state.
    • Description (optional).
  3. For numeric types (int or float), expand Number constraints to set:
    • Unit (optional): The unit of measurement, for example °C or %.
    • Min / Max (optional): The allowed value range.
  4. Click Confirm.

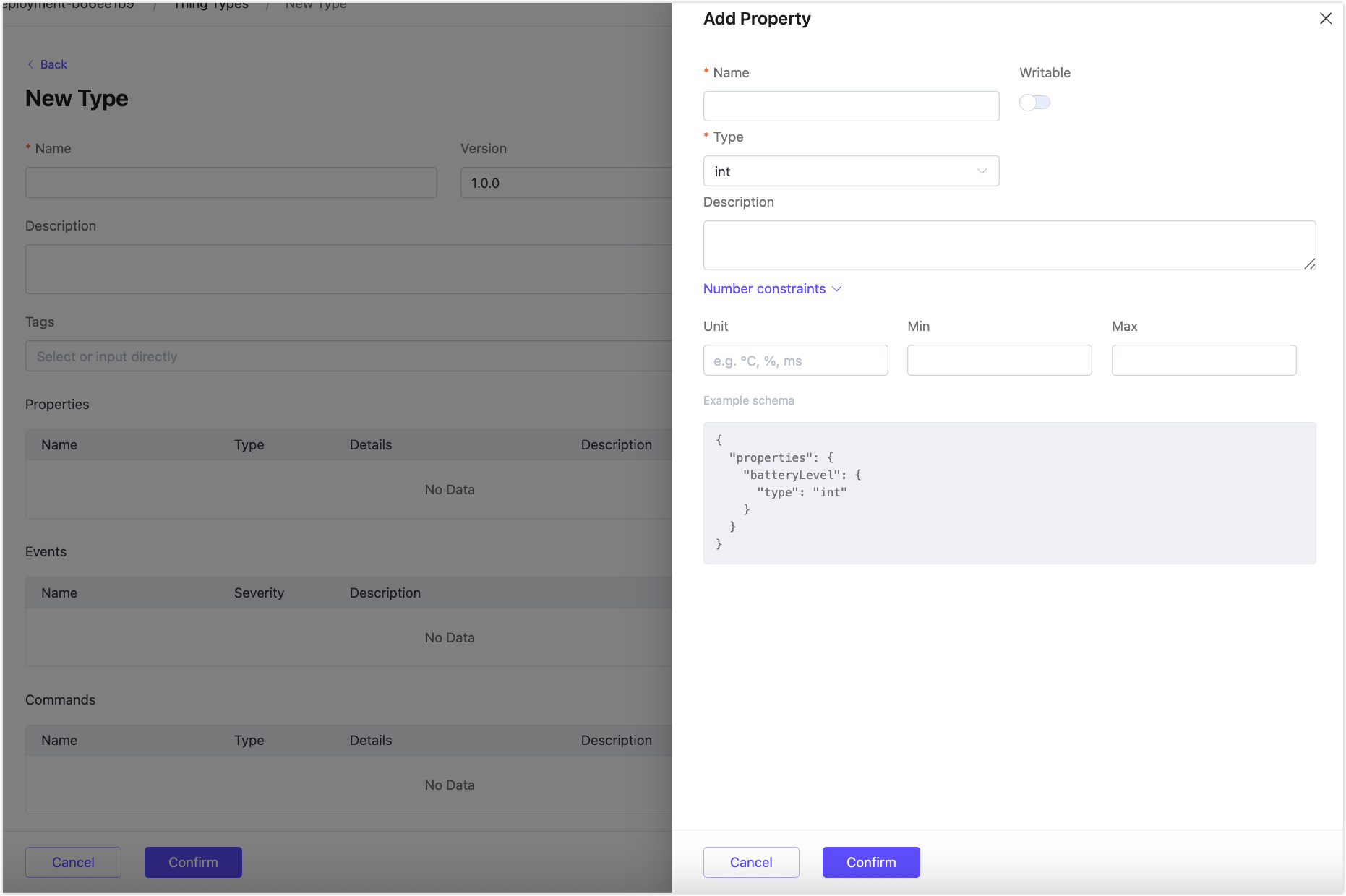

add_property

Add an Event ​

Events are named occurrences that a device can emit, such as an alarm or a fault condition.

  1. In the Events section, click + Add.
  2. Fill in the fields:
    • Name: The event name.
    • Severity: Select info, warn, or error. Defaults to warn.
    • Description (optional).
  3. Click Confirm.

Add a Command ​

Commands are actions that can be sent to a device for execution.

  1. In the Commands section, click + Add.
  2. Fill in the fields:
    • Name: The command name.
    • Type: sync (real-time, with a configurable timeout).
    • Timeout (ms): How long Fleets waits for a device response. Defaults to 5000.
    • Description (optional).
  3. To add input parameters, click + Add in the Input section. In the Add Field dialog, enter a Name and select a Type (string, int, float, boolean, or enum).
  4. To add output parameters, click + Add in the Output section and fill in the same fields.
  5. Click Confirm.

Raw JSON ​

Toggle Raw JSON in the upper right to view the full schema as a JSON object while editing. The panel updates in real time as you add properties, events, and commands.

Import a Thing Type ​

You can import a Thing Type from a JSON file to reuse schemas across deployments or environments.

  1. Click Import in the upper right of the Thing Types page.
  2. Click Download Template to get a sample JSON file showing the expected format.
  3. Edit the template with your schema, then click Select File to choose the file.
  4. Click Import.

If a Thing Type with the same name already exists, the import returns an error.

View a Thing Type ​

Click a Thing Type name in the list to open its detail page. The detail page shows the basic fields and the full schema (properties, events, and commands) in read-only mode. Click the edit icon in the upper right to open the Edit Type page.

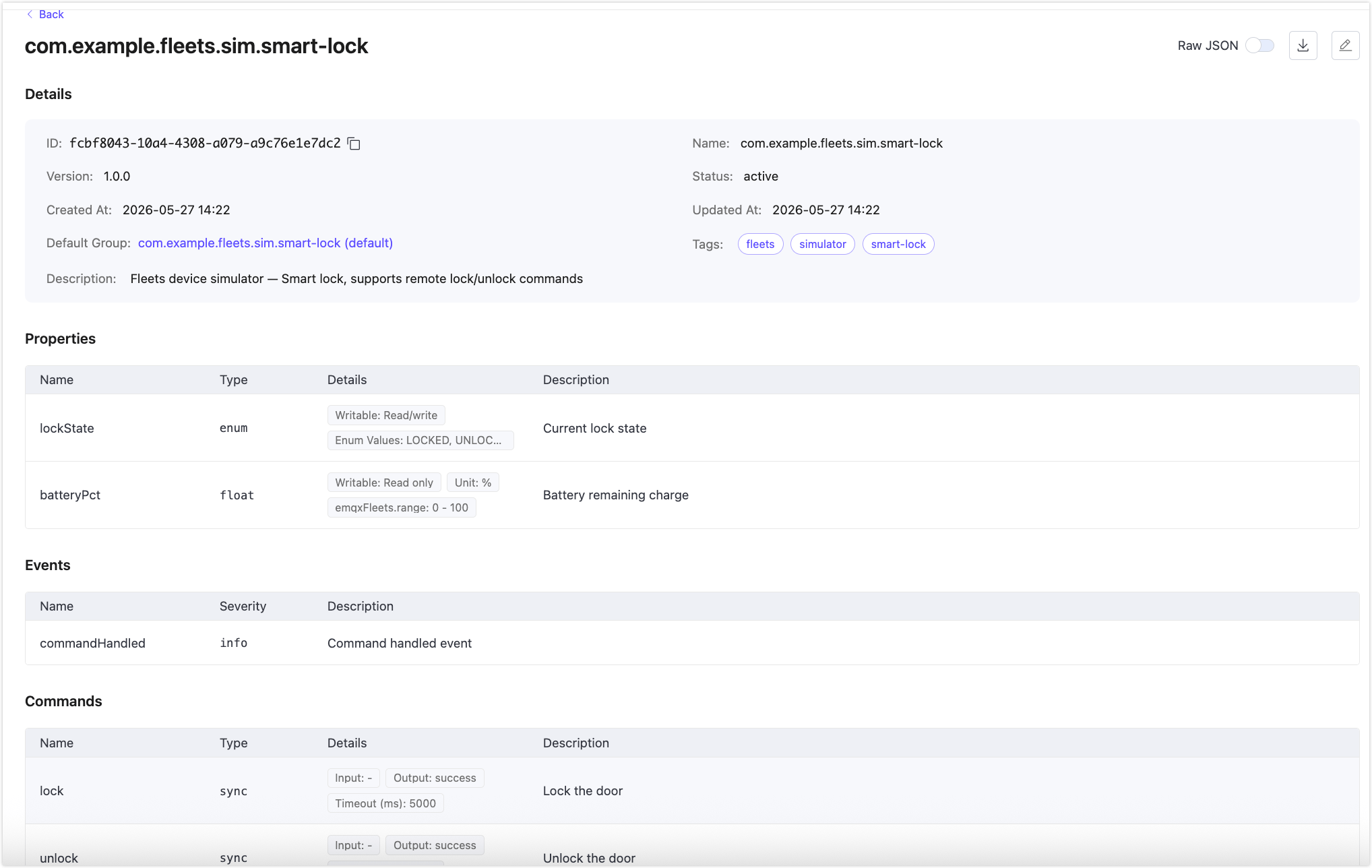

thing_type_details

Export a Thing Type ​

To export a Thing Type as a JSON file, click the export icon in the Actions column. The file can be used to import the same schema into another deployment.

Update a Thing Type ​

To edit the basic fields (name, version, description, or tags):

  1. In the Thing Types list, click the edit icon in the Actions column, or open the detail page and click the edit icon in the upper right.
  2. Modify the fields.
  3. Click Save.

To update the schema (add or remove properties, events, or commands), open the Edit Type page and use the + Add buttons or the delete icon next to each item.

Important Notice

Updating a Thing Type schema does not automatically update the shadow state or properties of existing Things. Changes apply to Things registered after the update.

Delete a Thing Type ​

  1. In the Thing Types list, click the delete icon in the Actions column.
  2. Confirm the deletion.

A Thing Type cannot be deleted if it has registered Things. Delete or reassign all associated Things first.

Deleting a Thing Type also deletes its default Thing Group.

Next Steps ​
