# Bridge device data to Pulsar using the Data Integrations

Note

This feature is not available in Standard Plan

In this article, we will simulate the temperature and humidity data, and report these data to EMQX Cloud via the MQTT protocol, and then we will use EMQX Cloud Data Integrations to bridge the data to Pulsar.

Before you start, you will need to complete the following:

  • A deployment (EMQX Cluster) has been created on EMQX Cloud.

  • For Professional Plan users: Please complete Peering Connection Creation first, all IPs mentioned below refer to the internal network IP of the resource.(Professional Plan with a NAT gateway can also use public IP to connect to resources)

# Pulsar Configuration

  1. Install Pulsar with Docker

    docker run -d \
      --name pulsar \
      -p 6650:6650 \
      -p 8080:8080 \
      -v $PWD/data:/pulsar/data \
      apachepulsar/pulsar:latest \
      bin/pulsar standalone

    1
    2
    3
    4
    5
    6
    7
  2. Start consume

    docker exec -it pulsar bash bin/pulsar-client consume temp_hum -s sub

    1

# Data Integrations Configuration

Go to Deployment Details and click on Data Integrations on the left menu bar.

  1. Create Pulsar Resource

    Click on Pulsar under the Data Forward.

    pulsar

    Fill in the information of the pulsar you have just created and click Test. If there is an error, you should check if the configuration is correct. Then click on New to create Pulsar resource.

    create resource

  2. Create Rule

    Choose the Pulsar resource under Configured Resources, click on New Rule and enter the following rule to match the SQL statement. In the following rule, we read the time when the message was reported up_timestamp, client ID, payload via temp_hum/emqx topic. Also, we can read temperature and humidity from this topic.

    SELECT
    TIMESTAMP AS up_timestamp, clientid AS client_id, payload.temp AS temp, payload.hum AS hum
    FROM
    "temp_hum/emqx"

    1
    2
    3
    4

    You can use SQL Test to see the result

    pulsar_new_rule

  3. Add Action

    Click on the Next action in the bottom to enter action view. Select the resource created in the first step, select Data forward - Data bridge to Pulsar as Action Type, and setup Pulsar Topic to temp_hum.

    rule_action Click on Confirm to create action.

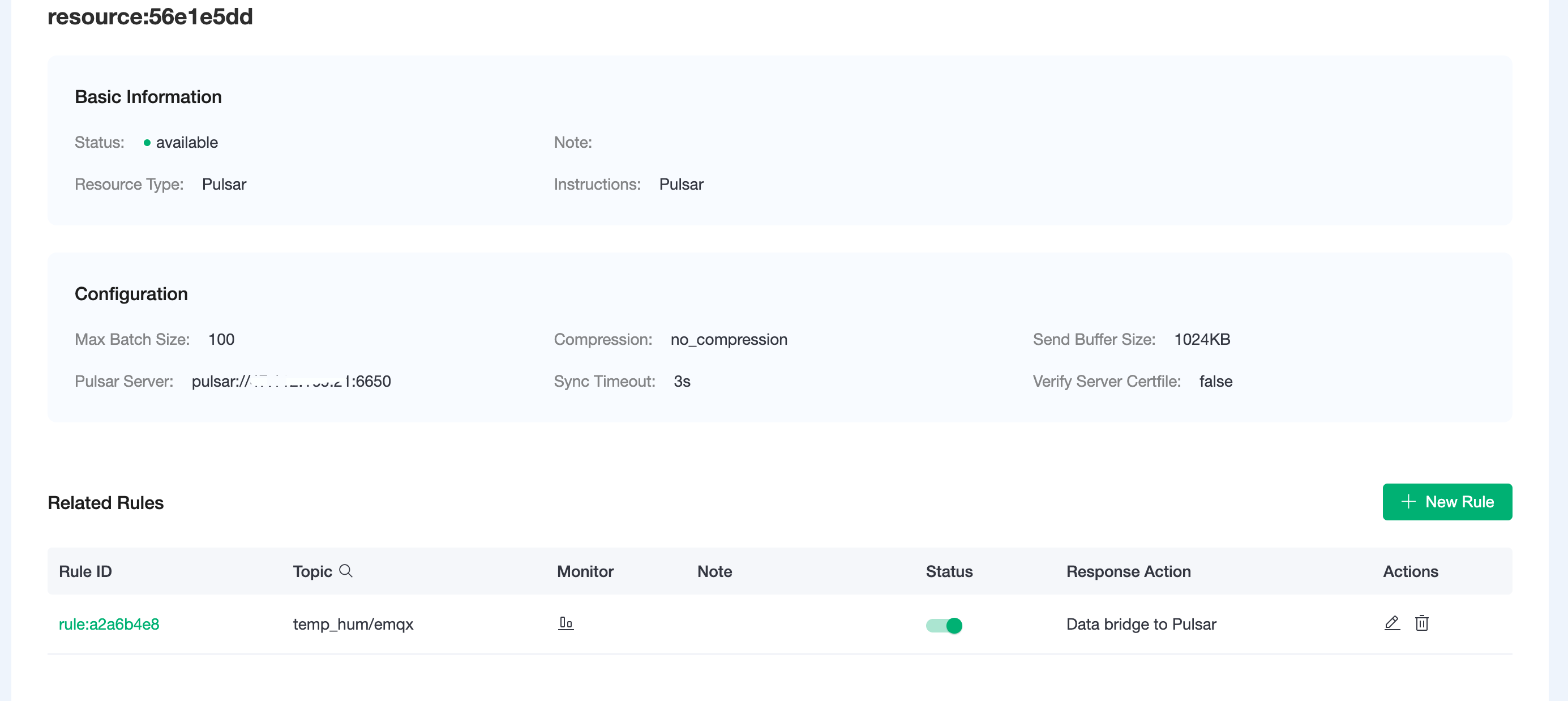

  4. View Resource Detail

    Click on the resource to see the detail.

    pulsar_resource_detail

  5. Check Rules Monitoring

    Click the monitor icon of rule to see the metrics

    view monitor

# Test

  1. Use MQTT X (opens new window) to simulate reporting temperature and humidity data

    You need to replace broker.emqx.io with the deployment connection address you have created and add the client-side authentication information in the EMQX Dashboard. MQTTX

    • topic: temp_hum/emqx
    • payload:
      {
         "temp": 18,
         "hum": 54
      }

      1
      2
      3
      4
  2. View data bridge results

    We can see the pulsar consume has already got message.

    pulsar
