# Save device data to MongoDB using the Rule Engine

In this article, we will simulate the temperature and humidity data, and publish these data to EMQ X Cloud via the MQTT protocol, and then we will use the EMQ X Cloud rule engine to store the data to MongoDB.

Before you start, you will need to complete the following:

  • A deployment (EMQ X Cluster) has been created on EMQ X Cloud.

  • For professional deployment users: Please complete the creation of a VPC Peering Connection first. All IPs mentioned below refer to the resource's intranet IP.

  • For basic deployment users: No VPC Peering Connection is required. All IPs mentioned below refer to the resource's public IP.

# MongoDB Configuration

  1. Pull the newest version of MongoDB mirror

    docker pull mongo:latest
  2. Run Mongo Container

    docker run -itd --name mongo -p 27017:27017 mongo --auth
  3. Execute Container

    docker exec -it mongo mongo admin
  4. Create user and set up the password

    db.createUser({ user:'root',pwd:'public',roles:[ { role:'userAdminAnyDatabase', db: 'admin'},"readWriteAnyDatabase"]});
  5. Connect by using the user information above

    db.auth('root', 'public')

    You will get the same result by following the steps above. create resource

  6. Create a new database

    Use emqx
  7. Insert data into temp_hum collection and view the result.

     db.temp_hum.insert({up_timestamp: 34256, client_id: 1, temp: 20, hum: 33})

    create resource

# EMQ X Cloud Rule Engine Configuration

Select Rule Engine from the left menu bar to edit rule engine configuration.

  1. Create MongoDB Resource

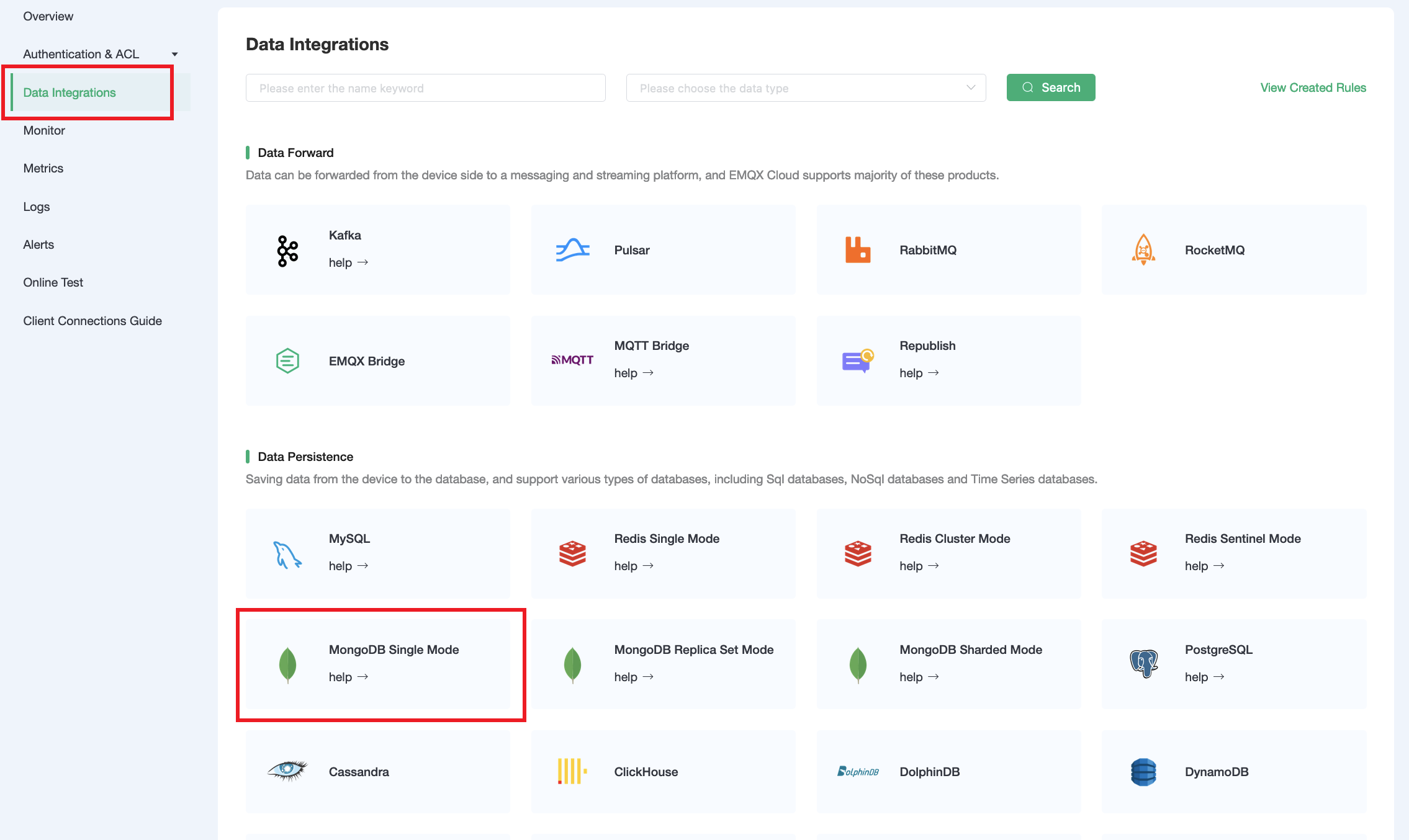

    Click on Rule Engine on the left menu bar and click on + New button to create a new resource.

    create resource

    Then fill in the information regarding the MongoDB you choose to store the data. You could always test if the database configuration you entered is correct before confirm to add the resource. If you get an error message after clicking the Test button, make sure to double-check the input information and retry.

    create resource

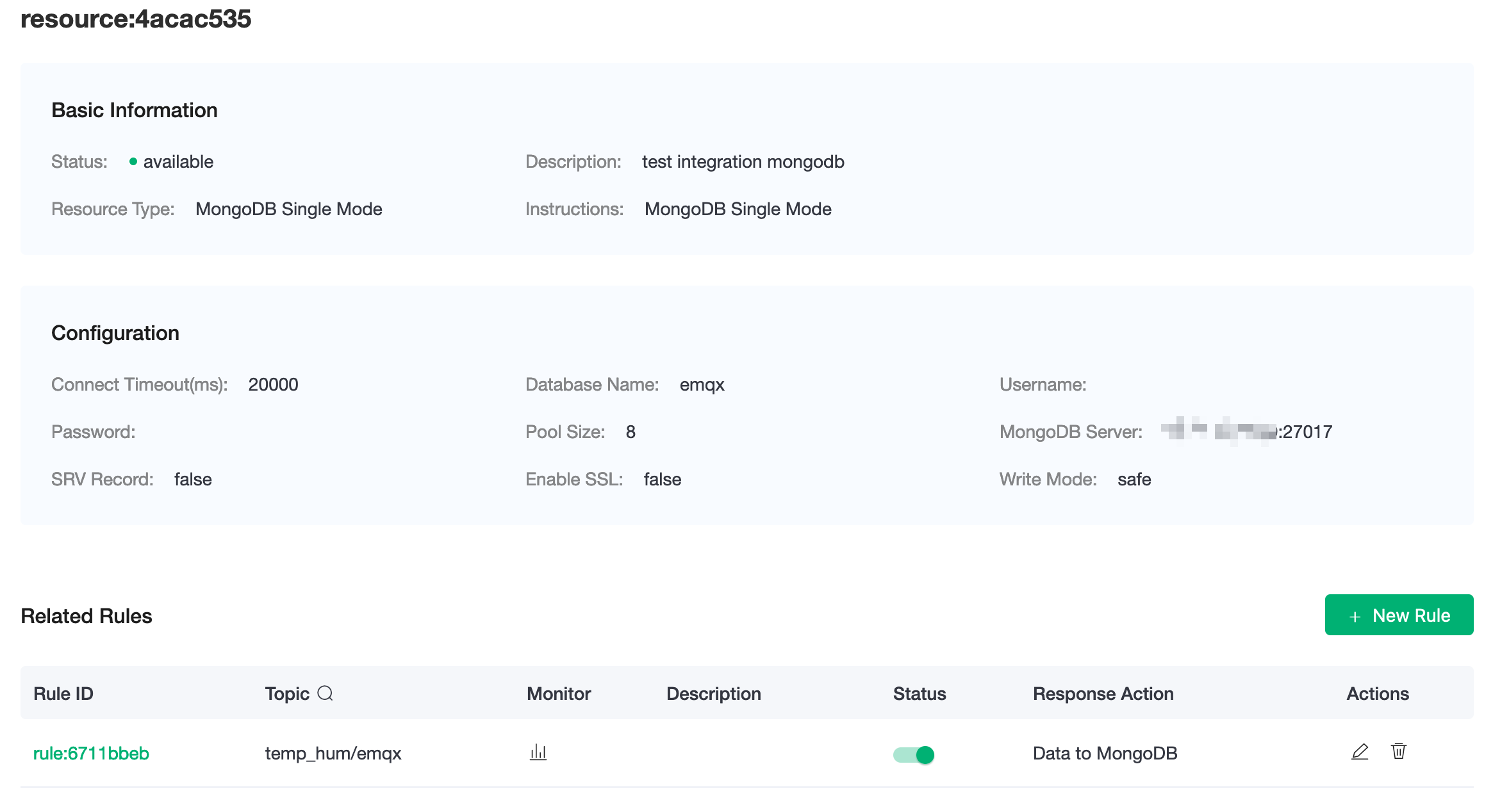

    If the configuration test is passed, click on confirm to finish creating resource.

  2. Create Rule

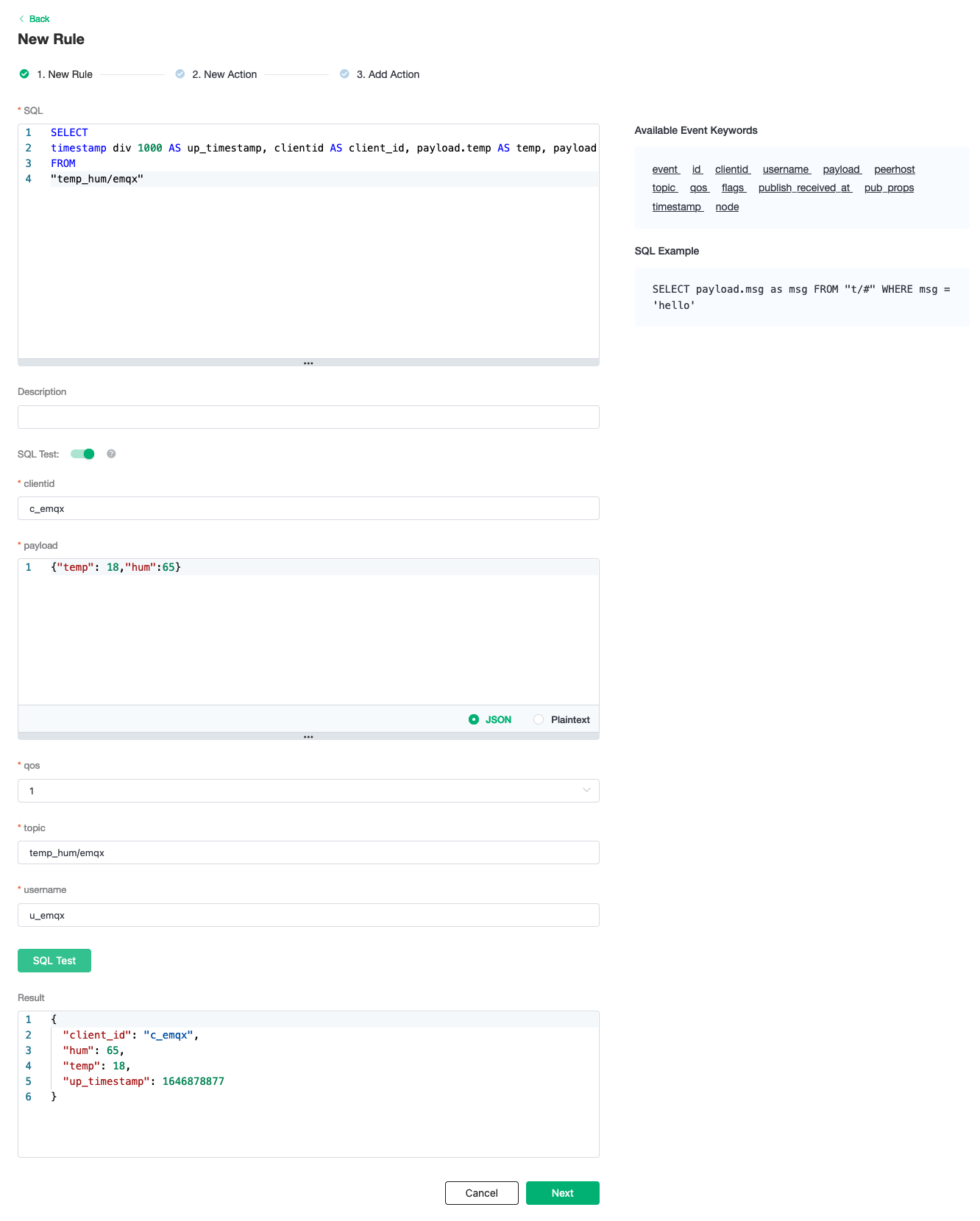

    Now we need to create a rule for the rule engine. Click on Rule Engine on the left menu bar and click on + New button to create a new Rule.

    In the following rule, we read the timestamp, client ID, payload via temp_hum/emqx topic.

    timestamp as up_timestamp, clientid as client_id, payload.temp as temp, payload.hum as hum

    rule engine

  3. Rule Test

    You should always test the SQL ahead to make sure it's functioning as you expected.

    rule engine

  4. Add Action

    After inputting the SQL command, it's time to create the response actions.

    Towards the bottom of the page, in the Response Action section, click on the + Add action button.


  5. Click on Confirm to finish creating a Rule. You could always come back to edit you rules and add more actions.

    rule list

  6. Check Rules Monitoring

    view monitor

# Test

  1. Use MQTT X (opens new window) to simulate publishing temperature and humidity data

    You need to replace broker.emqx.io with the deployment connection address you have created and add the client-side authentication information in the EMQ X Dashboard. MQTTX

  2. View stored results
