Integrate with MongoDB Atlas

MongoDB Atlas is a multi-cloud database service by the same people that build MongoDB. Atlas simplifies deploying and managing your databases while offering the versatility you need to build resilient and performant global applications on the cloud providers of your choice.

In this article, we will simulate the temperature and humidity data, and publish these data to EMQX Cloud via the MQTT protocol, and then we will use the EMQX Cloud Data Integrations to store the data to MongoDB Atlas.

Before you start, you will need to complete the following:

  • A deployment (EMQX Cluster) has been created on EMQX Cloud.
  • For Professional Plan users: Please complete Peering Connection Creation first, all IPs mentioned below refer to the internal network IP of the resource.(Professional Plan with a NAT gateway can also use public IP to connect to resources).
  • For BYOC Plan users: Please establish a peering connection between the VPC where BYOC is deployed and the VPC where the resources are located. All IPs mentioned below refer to the internal IP of the resources. If you need to access the resources via public IP addresses, please configure a NAT gateway in your public cloud console for the VPC where BYOC is deployed.

MongoDB Atlas Configuration

If you are new to MongoDB Atlas, we recommend that you follow the MongoDB Atlas help documentation to create it.

  1. Create a version of MongoDB Atlas that supports VPC peering. create_mongo

  2. Create username and password for database authentication.

    create_mongo_auth

  3. Select VPC Peering for network type.

    network_vpc

  4. Populate the EMQX Cloud VPC information into the peer connection page of MongoDB Atlas, and you can get the peering ID for further use.

    vpc_peering_1vpc_peering_2

  5. Once you have obtained the Peering ID and VPC ID, add your MongoDB Atlas VPC information to the EMQX Cloud console.

    vpc_peering_3

  6. Until the status is available, indicating that the VPC peer connection has been successfully created.

    vpc_peering_status

  7. Get the connection address of MongoDB Atlas instance.

    connection_info_1connection_info_2

Data Integrations Configuration

Go to Deployment Details and click on Data Integrations on the left menu bar.

  1. Create MongoDB Atlas Resource

    Click on MongoDB Replica Set Mode under the Data Persistence.

    data_integration

    Fill in the information you have just created and click Test. If there is an error, you should check if the database configuration is correct. Then click on New to create MongoDB Atlas resource

    create resource

  2. Create Rule

    Choose the MongoDB Atlas resource under Configured Resources, click on New Rule and enter the following rule to match the SQL statement. In the following rule we read the time up_timestamp when the message is reported, the client ID, the message body (Payload) from the temp_hum/emqx topic and the temperature and humidity from the message body respectively.

    sql
    SELECT
       timestamp div 1000 AS up_timestamp,
       clientid AS client_id,
       payload.temp AS temp,
       payload.hum AS hum

    FROM
       "temp_hum/emqx"

    rule_1rule_2

  3. Create Action

    Click on the Next button at the bottom to enter action view. Select the resource created in the first step, select Data Persistence - Data to MongoDB Atlas for Action Type and enter the collection of your Mongodb Atlas.

    mongo_action

    Click on Confirm to create action.

Test

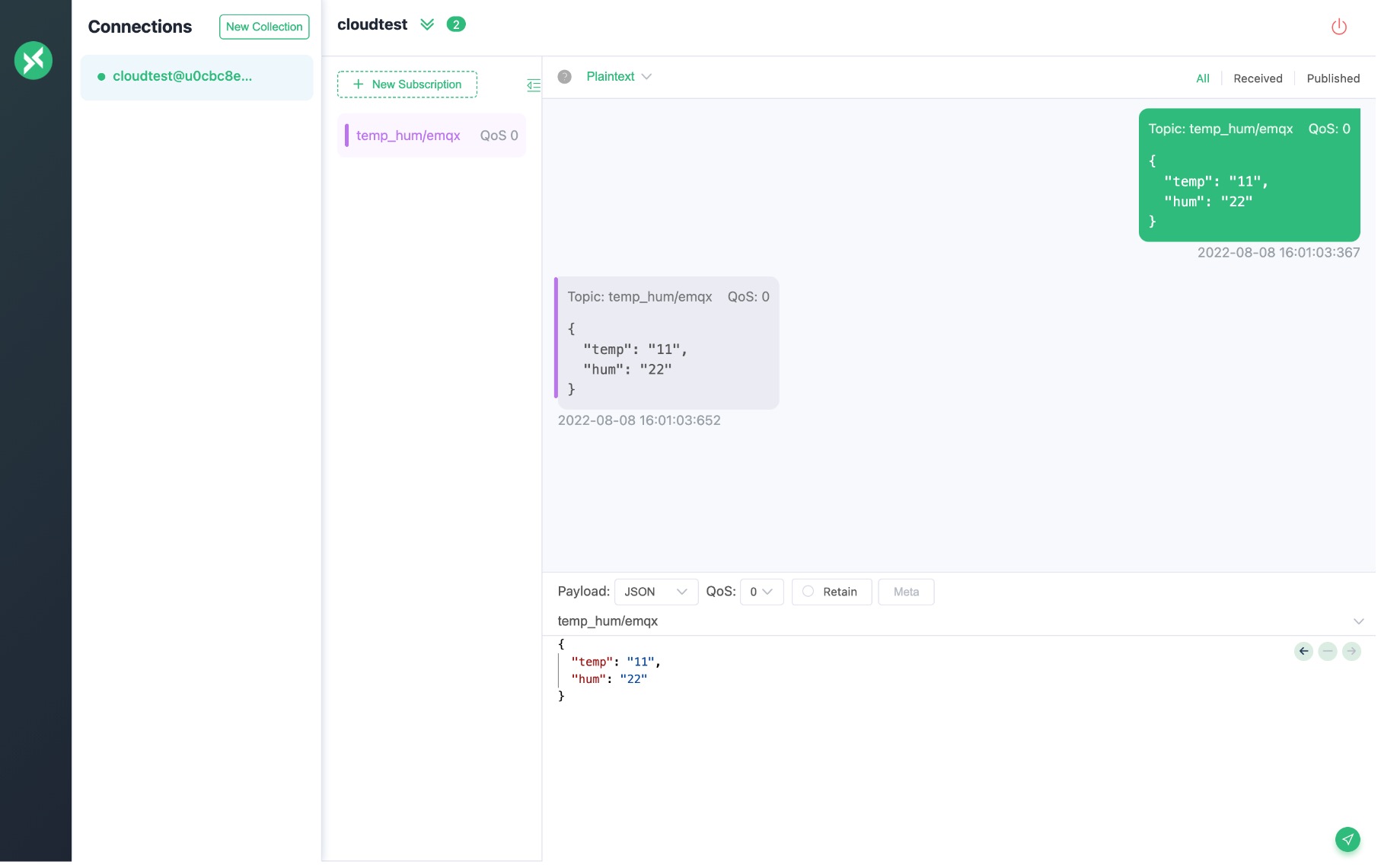

  1. Use MQTTX to simulate publishing temperature and humidity data

    You need to replace broker.emqx.io with the deployment connection address you have created and add the client-side authentication information in the EMQX Cloud console.

    MQTTX

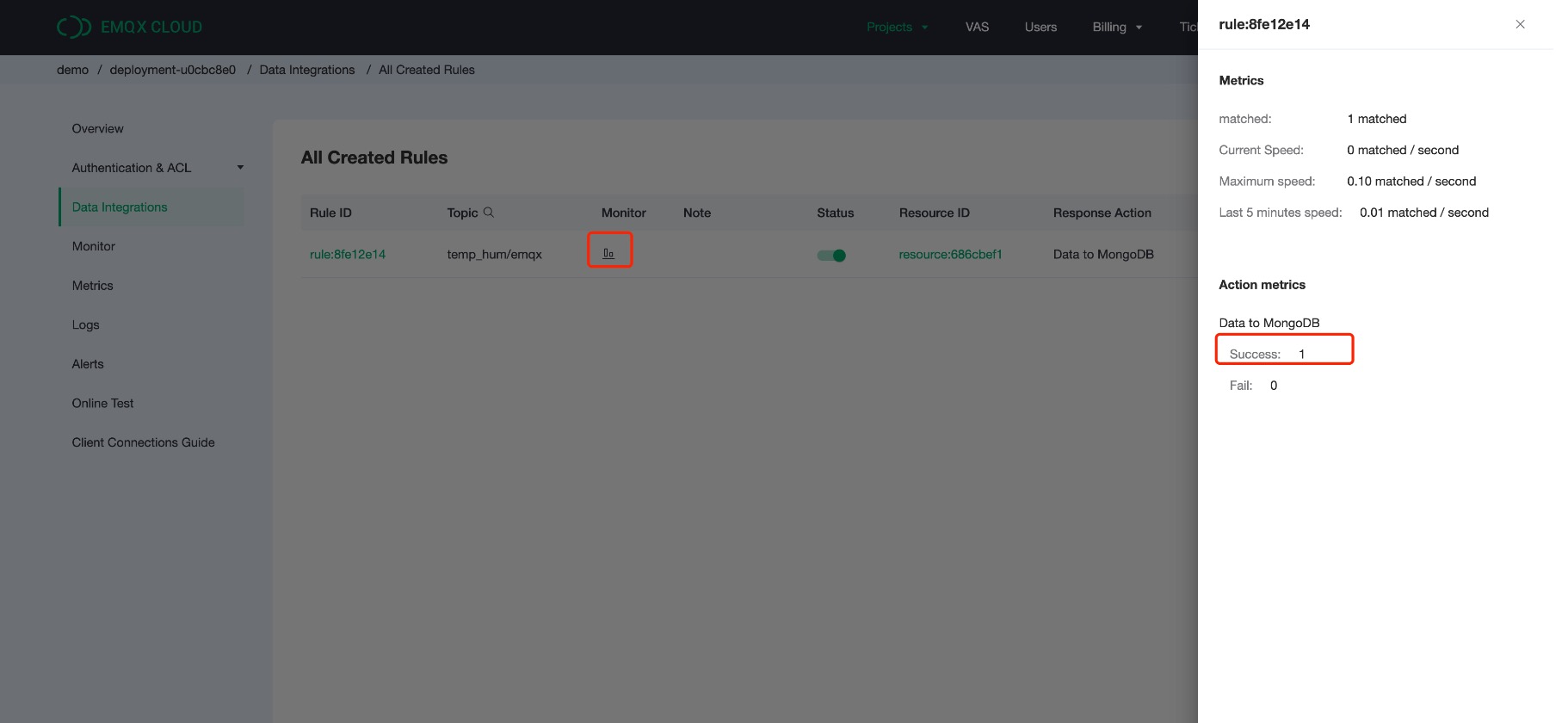

  2. View rule monitor

    Check the rule monitoring and add one to the "Success" number.

    rule_monitor

  3. View stored results

    bash
    db.temp_hum.find()

    mongo
