# Save device data to MySQL using the Data Integrations

In this article, we will simulate the temperature and humidity data, and report these data to EMQX Cloud via the MQTT protocol, and then we will use EMQX Cloud Data Integrations to dump the data to MySQL.

Before you start, you will need to complete the following:

  • Deployments have already been created on EMQX Cloud (EMQX Cluster).
  • For Professional Plan users: Please complete Peering Connection Creation first, all IPs mentioned below refer to the internal network IP of the resource.(Professional Plan with a NAT gateway can also use public IP to connect to resources)

# MySQL Configuration

  1. Install MySQL with Docker

    docker run -d --restart=always \
        --name mysql \
        -p 3306:3306 \
        -e MYSQL_ROOT_PASSWORD=public \
        mysql/mysql-server:5.7

    1
    2
    3
    4
    5
  2. Create a database

    docker exec -it mysql mysql -uroot -ppublic
    CREATE DATABASE emqx;
    USE emqx;

    1
    2
    3
  3. Create table

    Use the following SQL command to create temp_hum table, and this table will be used for storing the temperature and humidity data reported by devices.

    CREATE TABLE `temp_hum` (
    `id` int(11) unsigned NOT NULL AUTO_INCREMENT,
    `up_timestamp` timestamp NULL DEFAULT NULL,
    `client_id` varchar(32) DEFAULT NULL,
    `temp` float unsigned DEFAULT NULL,
    `hum` float unsigned DEFAULT NULL,
    PRIMARY KEY (`id`),
    KEY `up_timestamp_client_id` (`up_timestamp`,`client_id`)
    ) ENGINE=InnoDB AUTO_INCREMENT=26 DEFAULT CHARSET=utf8mb4;

    1
    2
    3
    4
    5
    6
    7
    8
    9
  4. For professional deployment, set up to allow EMQX cluster IP segments to access the database (optional). To get the deployment segments go to Deployment Details → View VPC Peering Connections Information to replicate the deployment VPC CIDR.

      # Professional Deployment CIDR: 10.11.x.%
      GRANT ALL PRIVILEGES ON *.* TO root@'10.11.30.%' IDENTIFIED BY 'public' WITH GRANT OPTION;

      # Basic Deployment CIDR: 123.xxx.xxx.xxx
      GRANT ALL PRIVILEGES ON *.* TO root@'%' IDENTIFIED BY 'public' WITH GRANT OPTION;

    1
    2
    3
    4
    5
  5. Insert test data and view data

      INSERT INTO temp_hum(up_timestamp, client_id, temp, hum) VALUES (FROM_UNIXTIME(1603963414), 'temp_hum-001', 19.1, 55);

      SELECT * FROM temp_hum;

    1
    2
    3

# Data Integrations Configuration

Go to Deployment Details and click on Data Integrations on the left menu bar.

  1. Create MySQL Resource

    Click on MySQL under the Data Persistence.

    mysql

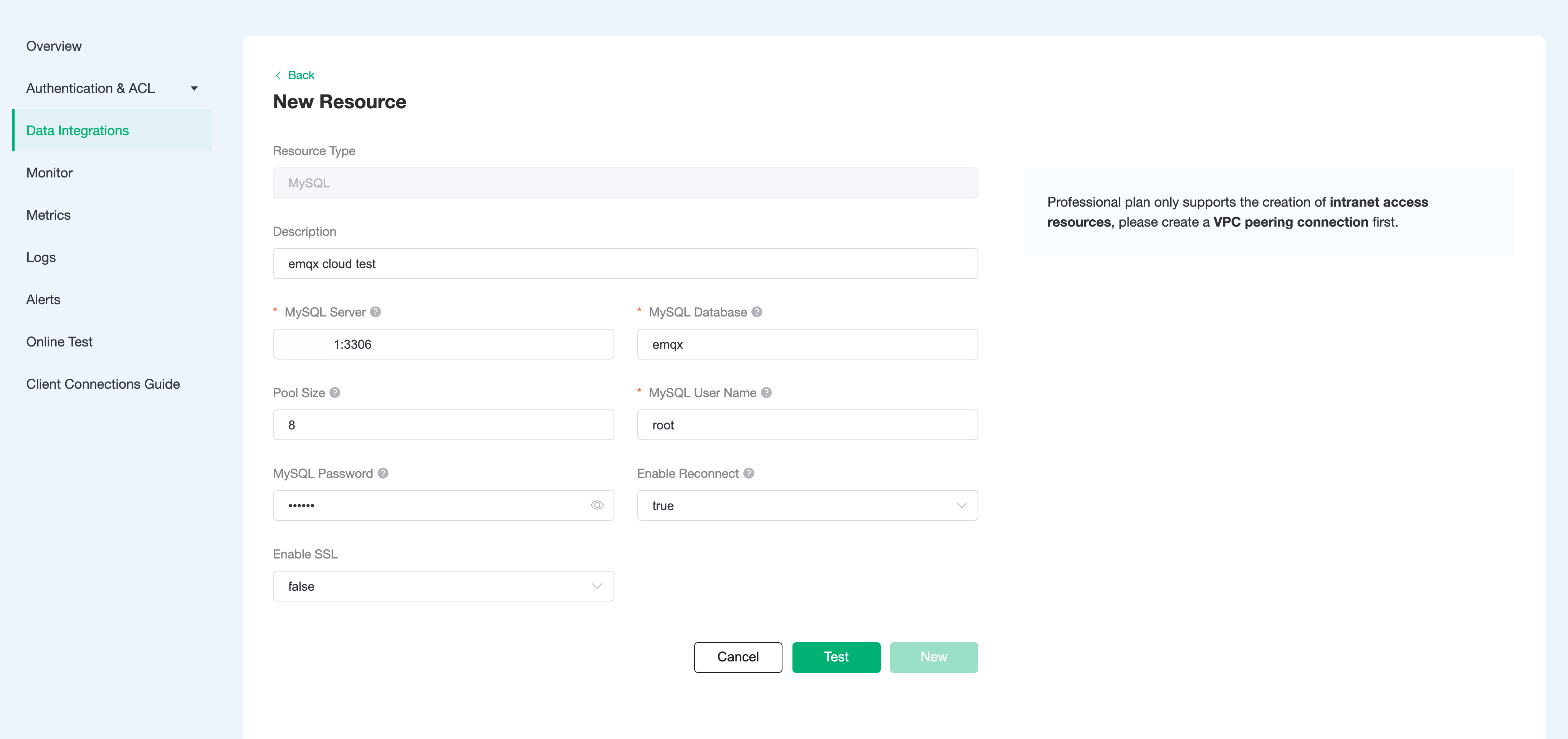

    Fill in the information of the mysql database you have just created and click Test. If there is an error, you should check if the database configuration is correct. Then click on New to create MySQL resource.

    create resource

  2. Create Rule

    Choose the MySQL resource under Configured Resources, click on New Rule and enter the following rule to match the SQL statement. In the following rule, we read the time when the message was reported up_timestamp, client ID, payload via temp_hum/emqx topic. Also, we can read temperature and humidity from this topic.

    SELECT
    timestamp AS up_timestamp, clientid AS client_id, payload.temp AS temp, payload.hum AS hum
    FROM
    "temp_hum/emqx"

    1
    2
    3
    4

    mysql_new_rule

    You can use SQL Test to see the result

    mysql_new_rule

  3. Add Action

    Click on the Next action in the bottom to enter action view. Select the resource created in the first step, select Data Persistence - Data to MySQL as Action Type, and enter the following data to insert into the SQL template.

    INSERT INTO temp_hum(up_timestamp, client_id, temp, hum) VALUES (FROM_UNIXTIME(${up_timestamp}/1000), ${client_id}, ${temp}, ${hum})

    1

    rule_action Click on Confirm to create action.

  4. View Resource Detail

    Click on the resource to see the detail.

    mysql_resource_detail

  5. Check Rules Monitoring

    Click the monitor icon of rule to see the metrics

    view monitor

# Test

  1. Use MQTT X (opens new window) to simulate reporting temperature and humidity data

    You need to replace broker.emqx.io with the deployment connection address you have created and add the client-side authentication information in the EMQX Dashboard.

    • topic: temp_hum/emqx

    • payload:

      {
         "temp": "20.1",
         "hum": "57"
      }

      1
      2
      3
      4

      MQTTX

  2. View data dump results

    select * from temp_hum order by up_timestamp desc limit 10;

    1

    mysql
