# Save device data to TDengine using the Data Integrations

TDengine (opens new window) is an open source big data platform designed and optimized by TOS Data (opens new window) for IoT, Telematics, Industrial Internet, IT O&M, and other applications.In addition to the core 10x faster time-series database functionality, it also provides caching, data subscription, streaming computing and other features to minimise the complexity of R & D and O & M.

In this article, we will simulate temperature & humidity data and report it to EMQX Cloud via the MQTT protocol, and then use the EMQX Cloud data integration to save the data into TDengine.

Before you start, you need to complete the following operations:

  • Deployments have already been created on EMQX Cloud (EMQX Cluster).
  • For Professional Plan users: Please complete Peering Connection Creation first, all IPs mentioned below refer to the internal network IP of the resource.(Professional Plan with a NAT gateway can also use public IP to connect to resources)

# TDengine configuration

  1. Install TDengine

    # EMQX currently supports TDengine 2.x, not 3.x yet
    docker run --name tdengine -d -p 6030:6030 -p 6035:6035 -p 6041:6041 -p 6030-6040:6030-6040/udp tdengine/tdengine:2.0.16.0

    1
    2
  2. New database

    docker exec -it tdengine bash
    taos
    create database emqx;
    use emqx;

    1
    2
    3
    4
  3. New table

    Use the following SQL statement to create temp_hum table. This table will be used to save the temperature & humidity data of device data.

"topic" is a reserved keyword of TDengine. Using "topic" as the field name will cause the table build to fail.

CREATE TABLE temp_hum (
ts timestamp,
client_id NCHAR(64),
mqtt_topic NCHAR(255),
temp BINARY(1024),
hum BINARY(1024)
);
1
2
3
4
5
6
7

# EMQX Cloud Data Integrations configuration

Go to your deployment and click on the Data Integrations menu bar on the left.

  1. New Resource

    Click on Data Integrations on the left menu bar → Resources, click on New Resource and drop down to select the TDengine resource type. Fill in the information from the newly created TDengine database: the default user name is root, and the default password is taosdata. TDengine does not configure the database name in the resource, please configure it in SQL. If there is an error, you should promptly check whether the database configuration is correct. data integrations create resource

  2. Fill in rule

    Click Data Integration on the left menu bar, find the configured resource, click New Rule, and then enter the following rule to match the SQL statement

    SELECT

    now_timestamp('millisecond')  as ts,
    clientid as client_id,
    topic as mqtt_topic,
    payload.temp as temp,
    payload.hum as hum

    FROM

    "temp_hum/emqx"

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11

    create rule create rule

  3. Add a response action

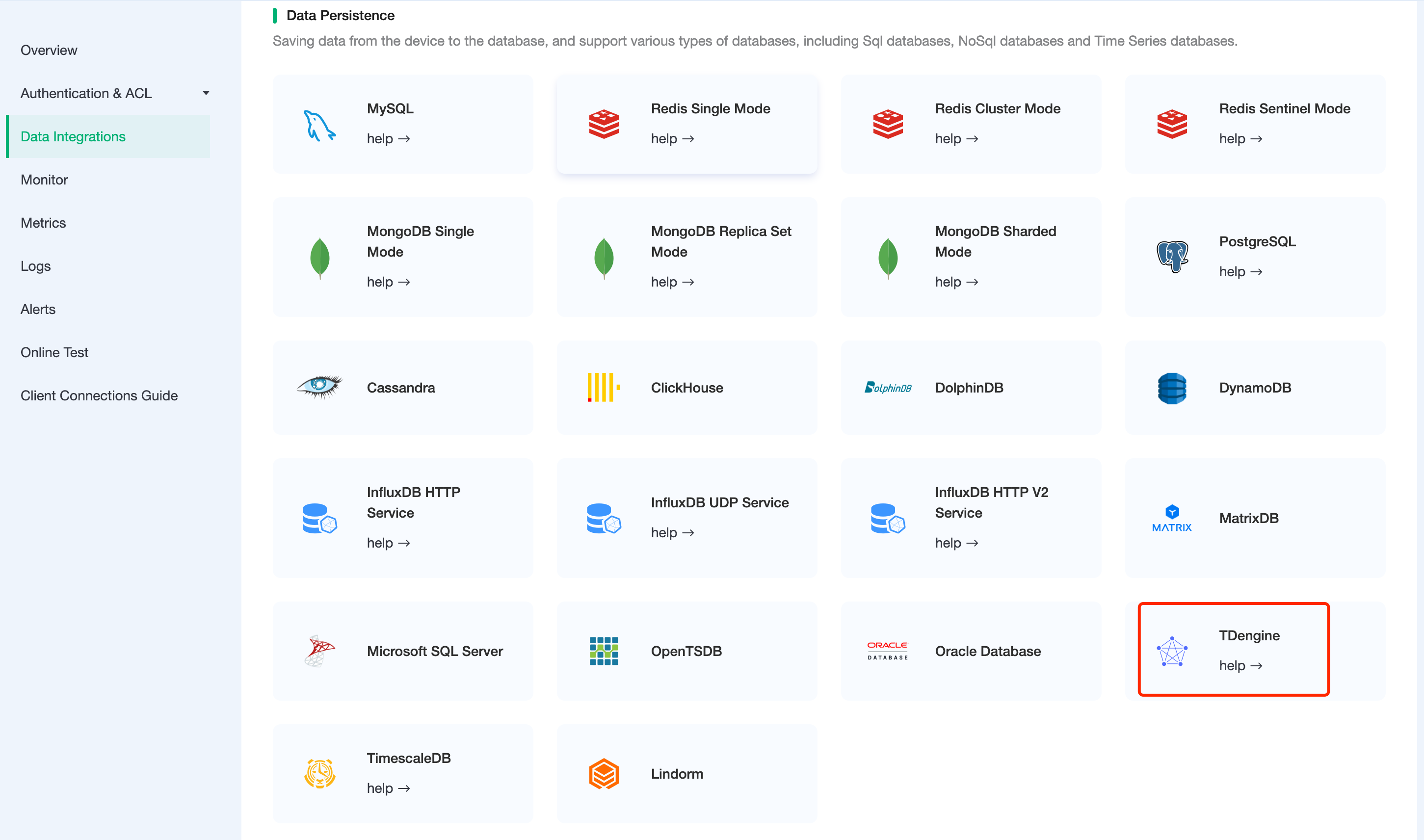

    Click Next, select the resource created in the first step, drop down and select Action Type → Data Persistence → Data to TDengine, Enter the following data to the SQL template. You need to specify the database name in SQL, and the character type should be enclosed in single quotes, click Confirm.

    insert into emqx.temp_hum(ts, client_id, mqtt_topic, temp, hum) values (${ts}, '${client_id}', '${mqtt_topic}', '${temp}', '${hum}')

    1

    tdengine action

# Test

  1. Use MQTT X (opens new window) to connect the deployment

    You need to replace broker.emqx.io with the created deployment connection address, and add client authentication information to the EMQX Cloud Dashboard.

    mqttx_rusult

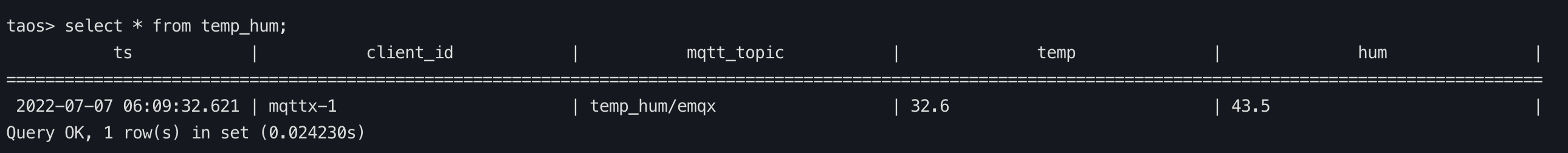

  2. View the data saving results

    select * from temp_hum;

    1

    result

3.View rules monitoring

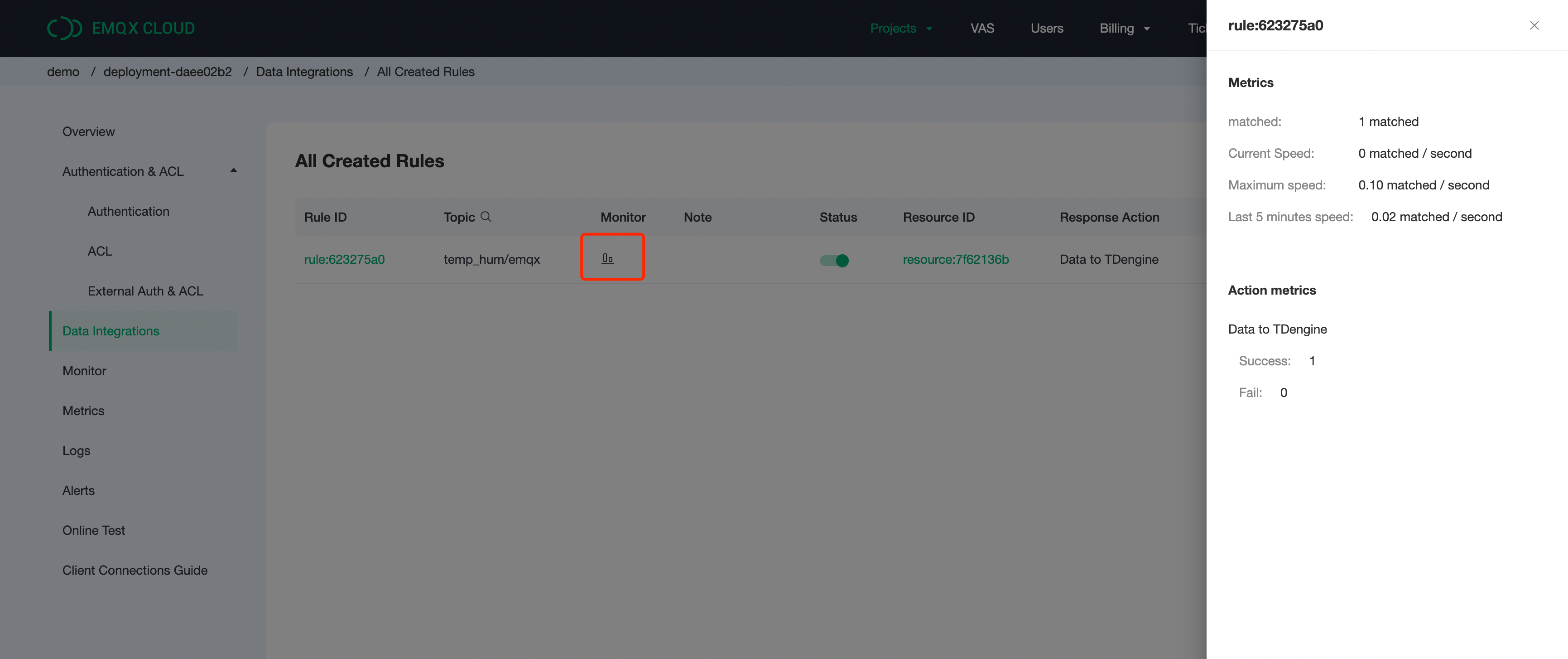

Check the rule monitoring and add one to the number of success.

monitor
