This page introduces how to use the data integrations feature in EMQX Cloud to ingest data into Timescale Cloud. In the following demonstrations, you can simulate how to send temperature and humidity data to EMQX Cloud and then ingest the data into Timescale Cloud by confiuring the data integration in EMQX Cloud.

Before you start, you need to complete the following:

  • A deployment (EMQX Cluster) has been created on EMQX Cloud.
  • For Professional Plan users: Please complete Peering Connection Creation first, all IPs mentioned below refer to the internal network IP of the resource.(Professional Plan with a NAT gateway can also use public IP to connect to resources).
  • For BYOC Plan users: Please establish a peering connection between the VPC where BYOC is deployed and the VPC where the resources are located. All IPs mentioned below refer to the internal IP of the resources. If you need to access the resources via public IP addresses, please configure a NAT gateway in your public cloud console for the VPC where BYOC is deployed.

Create a Timescale Cloud Service

This section introduces how to create a service in Timescale Cloud and connect to the service.

  1. Log in to Timescale Cloud and you will be navigated to the Create a service page.

  2. On the Create a service page, select a region from the drop-down list of the Region field. Click Create service at the bottom of the page.

    TIP

    It is better to select a region that is close to the region of the EMQX Cloud.

    timescale_cloud_create_service_1

  3. After the service is created, you can follow the instructions on this page to connect to your service. Or, you can follow the steps below to connect to your service. Store your Username and Password properly.

    TIP

    You can also download the cheatsheet for further use.

    timescale_cloud_create_service_3

  4. Install psql using the commands below.

    For macOS:

    bash
    brew doctor
    brew update
    brew install libpq

    For Linux:

    bash
    sudo apt-get update
    sudo apt-get install postgresql-client
  5. In the psql terminal, run the following command to connect to your database.

    bash
    psql -x "postgres://{YOUR_USERNAME_HERE}:{YOUR_PASSWORD_HERE}@{YOUR_HOSTNAME_HERE}:{YOUR_PORT_HERE}/{YOUR_DB_HERE}"
  6. Use the following SQL statement to create a new table temp_hum . This table will be used to save the temperature and humidity data reported by devices.

    sql
    CREATE TABLE temp_hum (
        up_timestamp   TIMESTAMPTZ       NOT NULL,
        client_id      TEXT              NOT NULL,
        temp           DOUBLE PRECISION  NULL,
        hum            DOUBLE PRECISION  NULL
    );

    SELECT create_hypertable('temp_hum', 'up_timestamp');
  7. Insert test data and view it.

    sql
    INSERT INTO temp_hum(up_timestamp, client_id, temp, hum) values (to_timestamp(1603963414), 'temp_hum-001', 19.1, 55);

    select * from temp_hum;

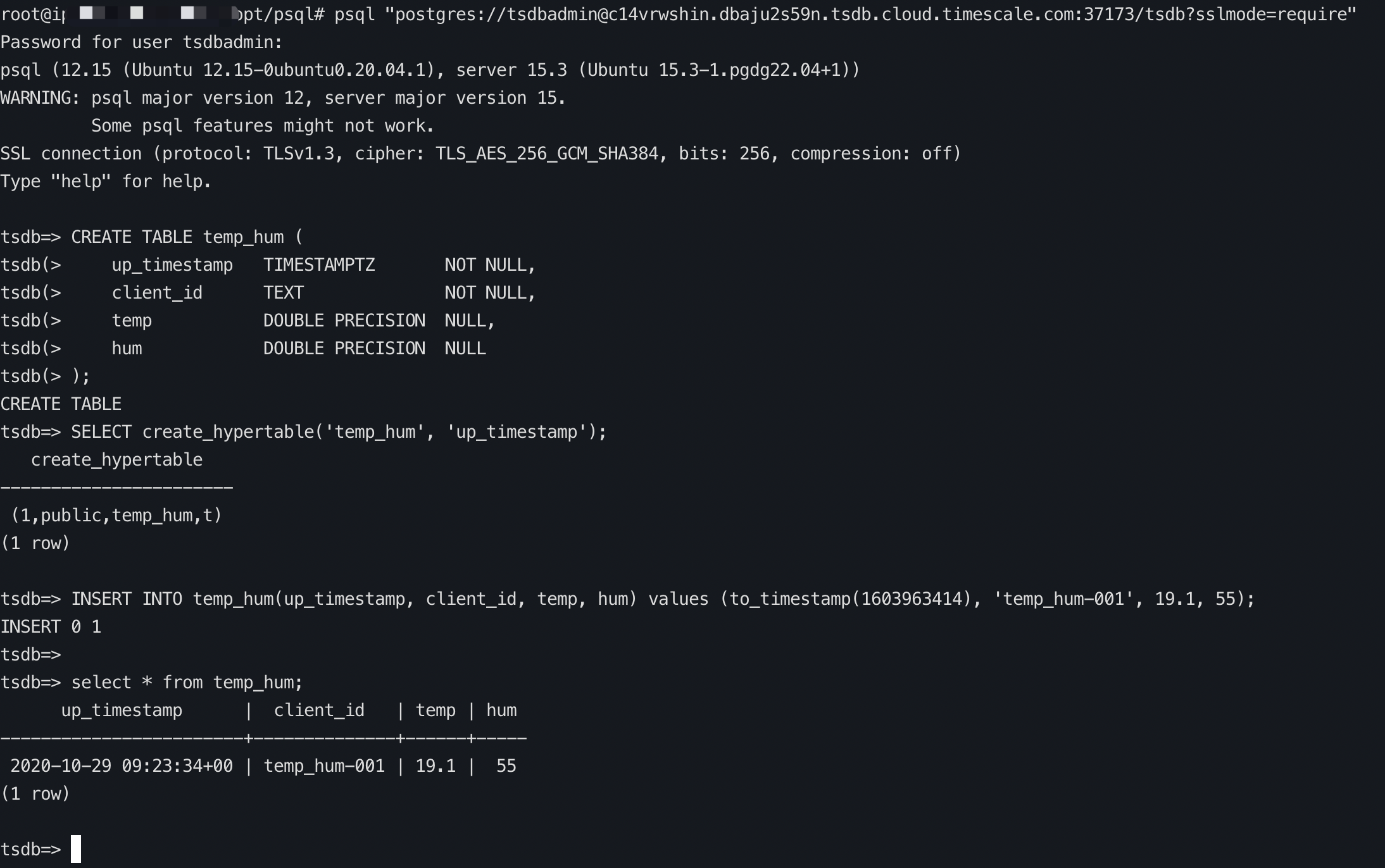

    timescale_cloud_create_service_5

  8. After you connect to your service, you can click I stored my password, go to service overview. On the overview page, you can see your connection information.

    timescale_cloud_create_service_4

Configure Data Integrations in EMQX Cloud

This section provides instructions on how to configure a Timescale data integration in EMQX Cloud Console using the service you created in Timescale Cloud to save data from the device to the Timescale.

  1. Sign in to your Cloud Console and go to the deployment details page.

  2. Click Data Integrations from the left navigation menu. Under Data Persistence, click TimescaleDB.

    timescale_cloud

  3. Fill in the Timescaledb connection information you get in Create a Timescale Cloud Service. Set the Pool Size to 1. Click Test to test the connection.

    • If the connection fails, you need to check if the database configuration is correct.
    • If the connection is successful, click New to create a TimescaleDB resource.

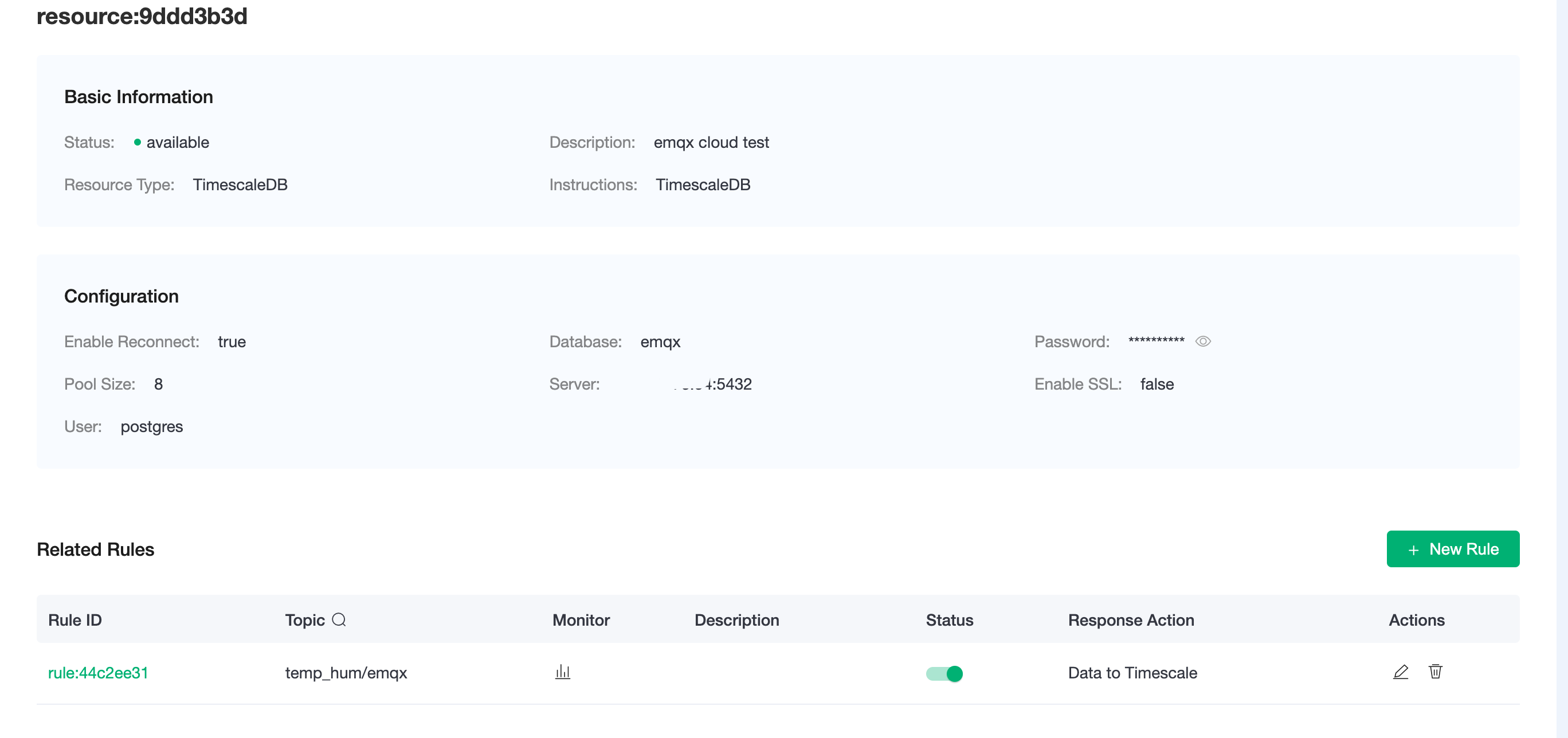

    timescale_cloud_resource

  4. Under Configured Resources, select the TimescaleDB resource. Click New Rule and enter the following rule to match the SQL statement. The SELECT part of the rule includes the following fields:

    • up_timestamp: The real time when the message is sent.
    • client ID: The ID of the device that sends the message.
    • Payload: The payload of the message on topic temp_hum/emqx, which contains the temperature and humidity data.
    sql
    SELECT
    timestamp div 1000 AS up_timestamp, clientid AS client_id, payload.temp AS temp, payload.hum AS hum
    FROM
    "temp_hum/emqx"

    timescale_cloud_rule_1

  5. Enable SQL Test by clicking the toogle switch. Fill in the required fields and click SQL Test to test if the rule works.

    You should get the expected result as shown in the screenshot.

    timescale_cloud_rule_2

  6. Click the Next button at the bottom to create an action. Select the resource created before from the drop-down list. In SQL Template, enter the following data to insert them into the SQL template.

    sql
    INSERT INTO temp_hum(up_timestamp, client_id, temp, hum) VALUES (to_timestamp(${up_timestamp}), ${client_id}, ${temp}, ${hum})

    timescale_cloud_action

  7. Click Confirm to create the action. You will be prompted to add another rule if needed. Otherwise, you can click View Details.

  8. On the details page, you can see the rule sql and the associated action.

    TIP

    You can also see all created rules by clicking Data Integrations -> View Created Rules.

    timescale_cloud_rule_details

  9. Click the icon in the Monitor column to see the detailed metrics of the rule.

    timescale_cloud_rule_monitor

Test Data Integration

This section demonstrates how to use MQTTX to simulate temperature and humidity data reporting and test if the data integration work properly.

  1. Start the MQTTX. In connection information, replace broker.emqx.io with the created deployment connection address. Add client authentication information in the EMQX Cloud Console.

  2. In MQTTX, send messages containing the temperature and huminidy data in the payload.

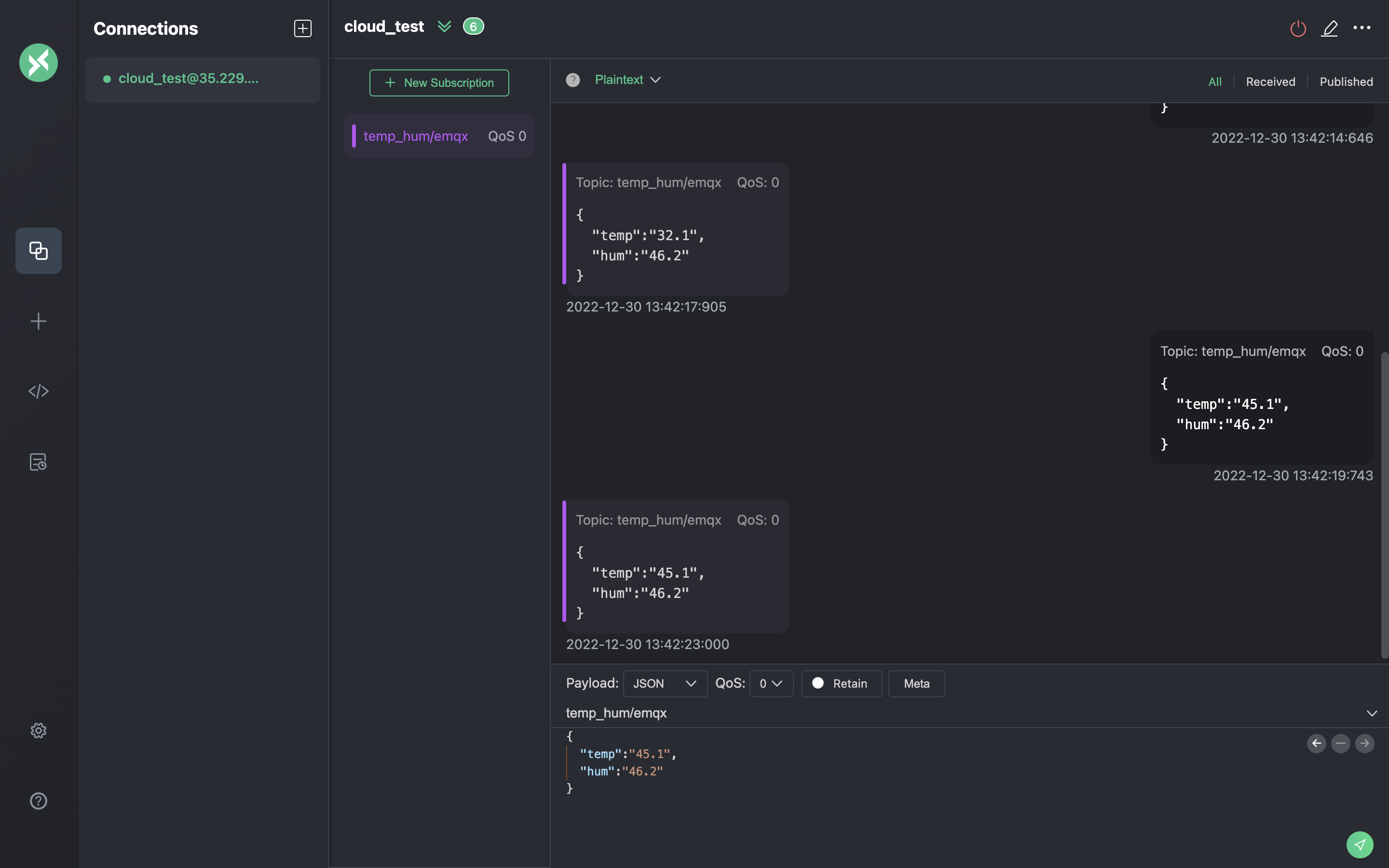

    timescale_cloud_mqttx

  3. View metrics of the rule in the EMQX Cloud Console. The number of incoming message shown in Success should be added by 1 after a message is sent.

    timescale_cloud_monitor_result

  4. In the psql terminal, use the command below to view data ingested into the Timescale database.

    sql
    select * from temp_hum order by up_timestamp desc limit 10;

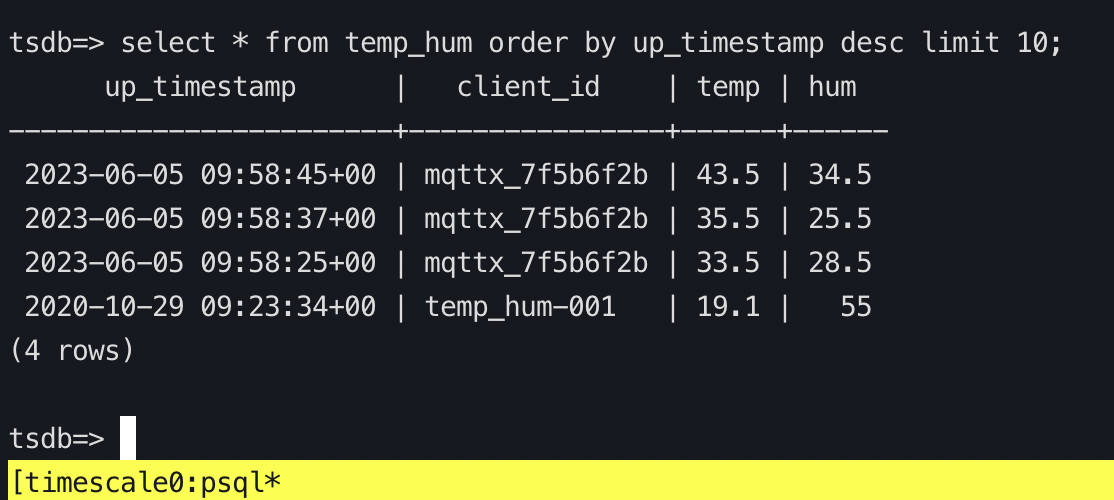

    timescale_cloud_result
