集成 WebHook
在本文中我们将模拟温湿度数据并通过 MQTT 协议上报到 EMQX Cloud,然后使用 EMQX Cloud 数据集成将数据转存到 WebHook。
在开始之前,您需要完成以下操作:
- 已经在 EMQX Cloud 上创建部署(EMQX 集群)。
- 对于专业版部署用户:请先完成 对等连接的创建,下文提到的 IP 均指资源的内网 IP。(专业版部署若开通 NAT 网关也可使用公网 IP 进行连接)
- 对于基础版用户:无需完成对等连接,下文提到的 IP 均指资源的公网 IP。
- 对于 BYOC 部署用户:请首先为 BYOC 部署所在的 VPC 与资源所在的 VPC 之间建立对等连接。注:下文提到的 IP 均指资源的内网 IP。如需通过公网地址访问资源,请首先在您的公有云控制台中为 BYOC 部署所在 VPC 配置 NAT 网关。
您可以查看视频教程进一步了解。
创建 Web 服务器
创建一个简易的 Web 服务器。
pythonfrom http.server import HTTPServer, BaseHTTPRequestHandler class SimpleHTTPRequestHandler(BaseHTTPRequestHandler): def do_GET(self): self.send_response(200) self.end_headers() self.wfile.write(b'Hello, world!') def do_POST(self): content_length = int(self.headers['Content-Length']) body = self.rfile.read(content_length) print("Received POST request with body: " + str(body)) self.send_response(201) self.end_headers() httpd = HTTPServer(('0.0.0.0', 8080), SimpleHTTPRequestHandler) httpd.serve_forever()
from http.server import HTTPServer, BaseHTTPRequestHandler class SimpleHTTPRequestHandler(BaseHTTPRequestHandler): def do_GET(self): self.send_response(200) self.end_headers() self.wfile.write(b'Hello, world!') def do_POST(self): content_length = int(self.headers['Content-Length']) body = self.rfile.read(content_length) print("Received POST request with body: " + str(body)) self.send_response(201) self.end_headers() httpd = HTTPServer(('0.0.0.0', 8080), SimpleHTTPRequestHandler) httpd.serve_forever()
EMQX Cloud 数据集成配置
创建资源

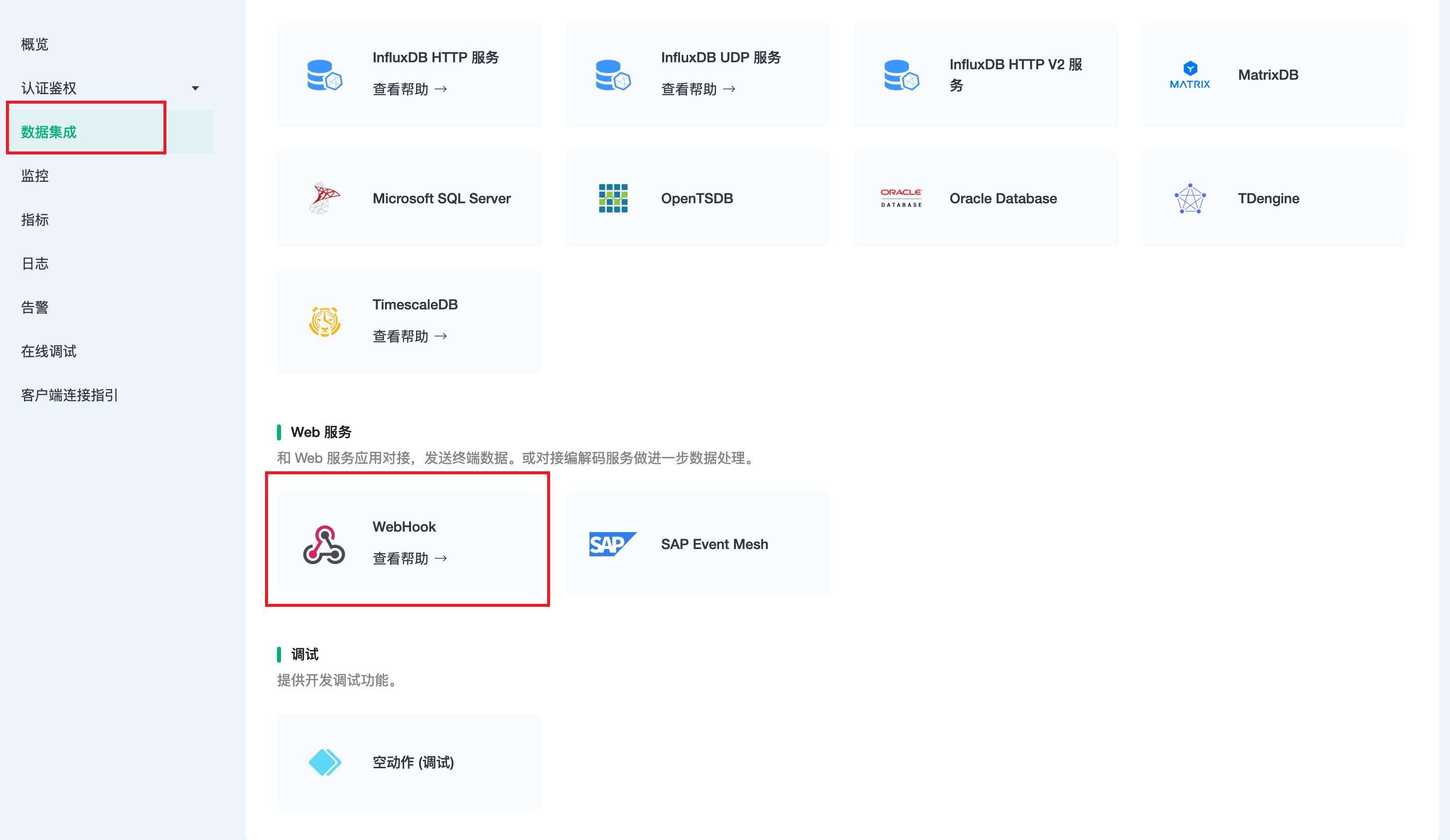

点击左侧菜单栏
数据集成
,在 Web 服务下找到 WebHook,点击新建资源。填入刚才创建好的 Web 服务信息,并点击测试,如果出现错误应及时检查数据库配置是否正确。
创建规则
资源创建后点击新建规则,然后输入如下规则匹配 SQL 语句。在下面规则中我们从
temp_hum/emqx
主题读取消息上报时间up_timestamp
、客户端 ID、消息体(Payload),并从消息体中分别读取温度和湿度。sqlSELECT timestamp as up_timestamp, clientid as client_id, payload.temp as temp, payload.hum as hum FROM "temp_hum/emqx"
SELECT timestamp as up_timestamp, clientid as client_id, payload.temp as temp, payload.hum as hum FROM "temp_hum/emqx"
我们可以使用
SQL 测试
来测试查看结果新建响应动作
点击下一步来到动作界面,选择第一步创建好的资源,动作类型选择
数据转发 - 发送数据到 Web 服务
,Body
设为以下内容,点击确认。消息内容模板:
{"up_timestamp": ${up_timestamp}, "client_id": ${client_id}, "temp": ${temp}, "hum": ${hum}}
{"up_timestamp": ${up_timestamp}, "client_id": ${client_id}, "temp": ${temp}, "hum": ${hum}}
查看资源详情
动作创建完以后,返回列表点击资源可以查看详情
查看规则监控
测试
使用 MQTTX 模拟温湿度数据上报
需要将 broker.emqx.io 替换成已创建的部署连接地址,并添加客户端认证信息。
topic:
temp_hum/emqx
payload:
json{ "temp": "27.5", "hum": "41.8" }
{ "temp": "27.5", "hum": "41.8" }
查看数据转发结果
