Command line interface

EMQ X Broker provides the management command line of ./bin/emqx_ctl for users to manage, configure and query EMQ X Broker.

status command

Query the running status of EMQ X Broker:

$ ./bin/emqx_ctl status
Node 'emqx@127.0.0.1' is started
emqx v4.0.0 is running

mgmt command

The mgmt command can query the application.

Command	Description
mgmt list	List application
mgmt insert <AppId> <Name>	Add an application that can access to the HTTP API
mgmt update <AppId> <status>	Update applications that can access to the HTTP API
mgmt lookup <AppId>	Get application details that can access to the HTTP API
mgmt delete <AppId>	Remove applications that can access to the HTTP API

mgmt list

List application

$ ./bin/emqx_ctl mgmt list
app_id: 901abdba8eb8c, secret: MjgzMzQ5MjM1MzUzMTc4MjgyMjE3NzU4ODcwMDg0NjQ4OTG, name: hello, desc: , status: true, expired: undefined

mgmt insert <AppId> <Name>

Add the HTTP API application:

$ ./bin/emqx_ctl mgmt insert dbcb6e023370b world
AppSecret: MjgzMzQ5MjYyMTY3ODk4MjA5NzMwODExODMxMDM1NDk0NDA

mgmt update <AppId> <status>

Update the HTTP API application:

$ ./bin/emqx_ctl mgmt update dbcb6e023370b stop
update successfully.

mgmt lookup <AppId>

Get application details of the HTTP API:

$ ./bin/emqx_ctl mgmt lookup dbcb6e023370b
app_id: dbcb6e023370b
secret: MjgzMzQ5MjYyMTY3ODk4MjA5NzMwODExODMxMDM1NDk0NDA
name: world
desc: Application user
status: stop
expired: undefined

mgmt delete <AppId>

Remove the HTTP API application:

$ ./bin/emqx_ctl mgmt delete dbcb6e023370b
ok

broker command

The broker command queries basic server information, startup time, statistics data and performance data.

Command	Description
broker	Query EMQ X Broker description, version, start time
broker stats	Statistics of Connection, Session, Topic, Subscription, Route
broker metrics	Query MQTT Packet and Message Statistics

Query basic information of EMQ X Broker, including version, startup time, etc .:

$ ./bin/emqx_ctl broker
sysdescr  : EMQ X Broker
version   : 4.0.0
uptime    : 4 minutes, 52 seconds
datetime  : 2020-02-21 09:39:58

broker stats

Query statistics of connections, topics, subscriptions, routes between server and client :

$ ./bin/emqx_ctl broker stats
actions.count                 : 5
actions.max                   : 5
channels.count                : 0
channels.max                  : 0
connections.count             : 0
connections.max               : 0
resources.count               : 0
resources.max                 : 0
retained.count                : 3
retained.max                  : 3
routes.count                  : 0
routes.max                    : 0
rules.count                   : 0
rules.max                     : 0
sessions.count                : 0
sessions.max                  : 0
suboptions.count              : 0
suboptions.max                : 0
subscribers.count             : 0
subscribers.max               : 0
subscriptions.count           : 0
subscriptions.max             : 0
subscriptions.shared.count    : 0
subscriptions.shared.max      : 0
topics.count                  : 0
topics.max                    : 0

broker metrics

Query server traffic (Bytes), MQTT Packets, messages sending and receiving statistics:

$ ./bin/emqx_ctl broker metrics
actions.success               : 0
bytes.received                : 0
bytes.sent                    : 0
client.auth.anonymous         : 0
client.authenticate           : 0
client.check_acl              : 0
client.connack                : 0
client.connect                : 0
client.connected              : 0
client.disconnected           : 0
client.subscribe              : 0
client.unsubscribe            : 0
delivery.dropped              : 0
delivery.dropped.expired      : 0
delivery.dropped.no_local     : 0
delivery.dropped.qos0_msg     : 0
delivery.dropped.queue_full   : 0
delivery.dropped.too_large    : 0
messages.acked                : 0
messages.delayed              : 0
messages.delivered            : 0
messages.dropped              : 0
messages.dropped.expired      : 0
messages.dropped.no_subscriber: 0
messages.forward              : 0
messages.publish              : 0
messages.qos0.received        : 0
messages.qos0.sent            : 0
messages.qos1.received        : 0
messages.qos1.sent            : 0
messages.qos2.received        : 0
messages.qos2.sent            : 0
messages.received             : 0
messages.retained             : 3
messages.sent                 : 0
packets.auth.received         : 0
packets.auth.sent             : 0
packets.connack.auth_error    : 0
packets.connack.error         : 0
packets.connack.sent          : 0
packets.connect.received      : 0
packets.disconnect.received   : 0
packets.disconnect.sent       : 0
packets.pingreq.received      : 0
packets.pingresp.sent         : 0
packets.puback.inuse          : 0
packets.puback.missed         : 0
packets.puback.received       : 0
packets.puback.sent           : 0
packets.pubcomp.inuse         : 0
packets.pubcomp.missed        : 0
packets.pubcomp.received      : 0
packets.pubcomp.sent          : 0
packets.publish.auth_error    : 0
packets.publish.dropped       : 0
packets.publish.error         : 0
packets.publish.received      : 0
packets.publish.sent          : 0
packets.pubrec.inuse          : 0
packets.pubrec.missed         : 0
packets.pubrec.received       : 0
packets.pubrec.sent           : 0
packets.pubrel.missed         : 0
packets.pubrel.received       : 0
packets.pubrel.sent           : 0
packets.received              : 0
packets.sent                  : 0
packets.suback.sent           : 0
packets.subscribe.auth_error  : 0
packets.subscribe.error       : 0
packets.subscribe.received    : 0
packets.unsuback.sent         : 0
packets.unsubscribe.error     : 0
packets.unsubscribe.received  : 0
rules.matched                 : 0
session.created               : 0
session.discarded             : 0
session.resumed               : 0
session.takeovered            : 0
session.terminated            : 0

cluster command

The cluster command is used to manage a cluster of multiple EMQ X Broker nodes (processes):

Command	Description
cluster join <Node>	Join the cluster
`cluster leave	Leave the cluster
cluster force-leave <Node>	Remove nodes from the cluster
cluster status	Query cluster status

Example:

To demonstrate the cluster command in a better way, we first start two nodes on the local machine and create a cluster. To avoid port conflicts, we have adjusted the listening port of the emqx2 node. For example, the MQTT/TCP listening port was changed from the default 1883 to 2883. Please refer to Configuration Instructions and Configuration Items for details.

Start emqx1 :

$ cd emqx1 && ./bin/emqx start

Start emqx2 :

$ cd emqx2 && ./bin/emqx start

Use cluster join <Node> to combine two nodes into one cluster:

$ cd emqx2 && ./bin/emqx_ctl cluster join emqx1@127.0.0.1

Join the cluster successfully.
Cluster status: [{running_nodes,['emqx1@127.0.0.1','emqx2@127.0.0.1']}]

Query the cluster status in any node directory:

$ ./bin/emqx_ctl cluster status
Cluster status: [{running_nodes,['emqx2@127.0.0.1','emqx1@127.0.0.1']}]

Cluster message routing test: The MQTT command line tool uses the emqtt client developed by the EMQ X team.

# emqx1 node (port 1883) subscribed topic x
$ ./bin/emqtt sub -t x -q 1 -p 1883
Client emqtt-a7de8fffbe2fbeb2fadb sent CONNECT
Client emqtt-a7de8fffbe2fbeb2fadb subscribed to x

# Published message to emqx2 node (port 2883)
$ ./bin/emqtt pub -t x -q 1 -p 2883 --payload hello
Client emqtt-0898fa447676e17479a5 sent CONNECT
Client emqtt-0898fa447676e17479a5 sent PUBLISH (Q1, R0, D0, Topic=x, Payload=...(5 bytes))
Client emqtt-0898fa447676e17479a5 sent DISCONNECT

# received a message by emqx1 node (port 1883)
$ ./bin/emqtt sub -t x -q 1 -p 1883
hello

emqx2 nodes leave the cluster:

$ cd emqx2 && ./bin/emqx_ctl cluster leave

emqx2 node is forced to leave the cluster, and you need to perform operations on nodes other than the target node under the cluster:

$ cd emqx1 && ./bin/emqx_ctl cluster force-leave emqx2@127.0.0.1

It is Noted that EMQ X Broker does not support joining a node that is already in a cluster to another cluster. That is because this will cause the data of the two clusters to be inconsistent. However, it supports nodes that have joined the cluster to join another cluster after leaving the cluster.

acl command

Reload acl rule:

$ ./bin/emqx_ctl acl reload
ok

clients command

The clients command can query the connected MQTT clients.

Command	Description
clients list	List all client connections
clients show <ClientId>	Query the client with the specified ClientId
clients kick <ClientId>	Kick out the client with the specified ClientId, and the connection and session will be terminated together.

clients list

List all client connections:

$ ./bin/emqx_ctl clients list
Client (mosqsub/43832-airlee.lo, username=test1, peername=127.0.0.1:62135, clean_start=true, keepalive=60, session_expiry_interval=0, subscriptions=0, inflight=0, awaiting_rel=0, delivered_msgs=0, enqueued_msgs=0, dropped_msgs=0, connected=true, created_at=1582249657, connected_at=1582249657)
Client (mosqsub/44011-airlee.lo, username=test2, peername=127.0.0.1:64961, clean_start=true, keepalive=60, session_expiry_interval=0, subscriptions=0, inflight=0, awaiting_rel=0, delivered_msgs=0, enqueued_msgs=0, dropped_msgs=0, connected=true, created_at=1582249657, connected_at=1582249657, disconnected_at=1582249702)
    ...

Return the properties of the Client object:

Name	Description
username	Username
peername	Client IP and port
clean_start	MQTT Clean Start
keepalive	MQTT KeepAlive
session_expiry_interval	Session expiration interval
subscriptions	Current subscriptions
inflight	Total number of QoS 1 and QoS 2 messages currently being issued
awaiting_rel	Number of QoS2 messages waiting for the client to send PUBREL
delivered_msgs	Number of messages forwarded by EMQ X Broker to this client (including retransmissions)
enqueued_msgs	Current length of message queue
dropped_msgs	Number of messages dropped after the message queue reached the maximum length
connected	Whether online
created_at	Session creation timestamp
connected_at	Client connection timestamp
disconnected_at	Client disconnection timestamp (appears only if the disconnection also retains the session)

clients show <ClientId>

Query the client with the specified ClientId:

$ ./bin/emqx_ctl clients show "mosqsub/43832-airlee.lo"
Client (mosqsub/43832-airlee.lo, username=test1, peername=127.0.0.1:62747, clean_start=false, keepalive=60, session_expiry_interval=7200, subscriptions=0, inflight=0, awaiting_rel=0, delivered_msgs=0, enqueued_msgs=0, dropped_msgs=0, connected=true, created_at=1576479557, connected_at=1576479557)

clients kick <ClientId>

Kick out the client with the specified ClientId:

$ ./bin/emqx_ctl clients kick "clientid"
ok

routes command

The routes command is used to query routing information.

In EMQ X Broker, route refers to the mapping of topics to nodes, which is used to route messages between multiple nodes.

Command	Description
routes list	List all routes
routes show <Topic>	Query the route of the specified topic

routes list

List all routes:

$ ./bin/emqx_ctl routes list
t2/# -> emqx2@127.0.0.1
t/+/x -> emqx2@127.0.0.1,emqx@127.0.0.1

routes show <Topic>

Query the route with the specified topic:

$ ./bin/emqx_ctl routes show t/+/x
t/+/x -> emqx2@127.0.0.1,emqx@127.0.0.1

subscriptions command

The subscriptions command queries the subscription table of the message server.

Command	Description
subscriptions list	List all subscriptions
subscriptions show <ClientId>	Query the subscription of the specified ClientId client
subscriptions add <ClientId> <Topic> <QoS>	Add static subscriptions manually
subscriptions del <ClientId> <Topic>	Delete static subscriptions manually

subscriptions list

List all subscriptions:

$ ./bin/emqx_ctl subscriptions list
mosqsub/91042-airlee.lo -> t/y:1
mosqsub/90475-airlee.lo -> t/+/x:2

subscriptions show <ClientId>

Query certain client's subscription:

$ ./bin/emqx_ctl subscriptions show 'mosqsub/90475-airlee.lo'
mosqsub/90475-airlee.lo -> t/+/x:2

subscriptions add <ClientId> <Topic> <QoS>

Add subscription relationship manually:

$ ./bin/emqx_ctl subscriptions add 'mosqsub/90475-airlee.lo' '/world' 1
ok

subscriptions del <ClientId> <Topic>

Delete subscription relationship manually:

$ ./bin/emqx_ctl subscriptions del 'mosqsub/90475-airlee.lo' '/world'
ok

plugins command

The plugins command is used to load, unload, and query plugin applications. EMQ X Broker extends authentication and customization through plugins. The plugin configuration is located in the directory of etc/plugins/ .

Command	Description
plugins list	List all plugins
plugins load <Plugin>	Load plugins
plugins unload <Plugin>	Unload plugins
plugins reload <Plugin>	Reload plugins

When the configuration file changesand it needs to take effect immediately, you can execute the emqx_ctl reload <Plugin \> command, even if the plugin is not running when the configuration is modified. You should use this command instead of emqx_ctl load <Plugin\> . Because emqx_ctl load <Plugin \> does not compile the new configuration file.

plugins list

List all plugins:

$ ./bin/emqx_ctl plugins list
Plugin (emqx_auth_clientid, version=v4.0.0, description=EMQ X Authentication with ClientId/Password, active=false)
Plugin (emqx_auth_http, version=v4.0.0, description=EMQ X Authentication/ACL with HTTP API, active=false)
Plugin (emqx_auth_jwt, version=v4.0.0, description=EMQ X Authentication with JWT, active=false)
Plugin (emqx_auth_ldap, version=v4.0.0, description=EMQ X Authentication/ACL with LDAP, active=false)
Plugin (emqx_auth_mongo, version=v4.0.0, description=EMQ X Authentication/ACL with MongoDB, active=false)
Plugin (emqx_auth_mysql, version=v4.0.0, description=EMQ X Authentication/ACL with MySQL, active=false)
Plugin (emqx_auth_pgsql, version=v4.0.0, description=EMQ X Authentication/ACL with PostgreSQL, active=false)
Plugin (emqx_auth_redis, version=v4.0.0, description=EMQ X Authentication/ACL with Redis, active=false)
Plugin (emqx_auth_username, version=v4.0.0, description=EMQ X Authentication with Username and Password, active=false)
Plugin (emqx_bridge_mqtt, version=v4.0.0, description=EMQ X Bridge to MQTT Broker, active=false)
Plugin (emqx_coap, version=v4.0.0, description=EMQ X CoAP Gateway, active=false)
Plugin (emqx_dashboard, version=v4.0.0, description=EMQ X Web Dashboard, active=true)
Plugin (emqx_delayed_publish, version=v4.0.0, description=EMQ X Delayed Publish, active=false)
Plugin (emqx_lua_hook, version=v4.0.0, description=EMQ X Lua Hooks, active=false)
Plugin (emqx_lwm2m, version=v4.0.0, description=EMQ X LwM2M Gateway, active=false)
Plugin (emqx_management, version=v4.0.0, description=EMQ X Management API and CLI, active=true)
Plugin (emqx_plugin_template, version=v4.0.0, description=EMQ X Plugin Template, active=false)
Plugin (emqx_psk_file, version=v4.0.0, description=EMQX PSK Plugin from File, active=false)
Plugin (emqx_recon, version=v4.0.0, description=EMQ X Recon Plugin, active=true)
Plugin (emqx_reloader, version=v4.0.0, description=EMQ X Reloader Plugin, active=false)
Plugin (emqx_retainer, version=v4.0.0, description=EMQ X Retainer, active=true)
Plugin (emqx_rule_engine, version=v4.0.0, description=EMQ X Rule Engine, active=true)
Plugin (emqx_sn, version=v4.0.0, description=EMQ X MQTT SN Plugin, active=false)
Plugin (emqx_statsd, version=v4.0.0, description=Statsd for EMQ X, active=false)
Plugin (emqx_stomp, version=v4.0.0, description=EMQ X Stomp Protocol Plugin, active=false)
Plugin (emqx_web_hook, version=v4.0.0, description=EMQ X Webhook Plugin, active=false)

Plugin properties:

Name	Description
version	Plugin version
description	Plugin description
active	Whether loaded

plugins load <Plugin>

Load plugin:

$ ./bin/emqx_ctl plugins load emqx_lua_hook
Plugin emqx_lua_hook loaded successfully.

plugins unload <Plugin>

Unload plugin:

$ ./bin/emqx_ctl plugins unload emqx_lua_hook
Plugin emqx_lua_hook unloaded successfully.

plugins reload <Plugin>

Reload plugin:

$ ./bin/emqx_ctl plugins reload emqx_lua_hook
Plugin emqx_lua_hook reloaded successfully.

vm command

The vm command is used to query information of Erlang virtual machine load, memory, process, and IO.

Command	Description
vm	Equivalent to vm all
vm all	Query all VM information
vm load	Query VM load
vm memory	Query VM memory
vm process	Query the number of VM Erlang processes
vm io	Query maximum file handle of VM io
vm ports	Query the port of a VM

vm all

Query all VM information, including load, memory, number of Erlang processes, etc .:

$ ./bin/emqx_ctl vm all
cpu/load1               : 4.22
cpu/load5               : 3.29
cpu/load15              : 3.16
memory/total            : 99995208
memory/processes        : 38998248
memory/processes_used   : 38938520
memory/system           : 60996960
memory/atom             : 1189073
memory/atom_used        : 1173808
memory/binary           : 100336
memory/code             : 25439961
memory/ets              : 7161128
process/limit           : 2097152
process/count           : 315
io/max_fds              : 10240
io/active_fds           : 0
ports/count             : 18
ports/limit             : 1048576

vm load

Query VM load:

$ ./bin/emqx_ctl vm load
cpu/load1               : 2.21
cpu/load5               : 2.60
cpu/load15              : 2.36

vm memory

Query VM memory:

$ ./bin/emqx_ctl vm memory
memory/total            : 23967736
memory/processes        : 3594216
memory/processes_used   : 3593112
memory/system           : 20373520
memory/atom             : 512601
memory/atom_used        : 491955
memory/binary           : 51432
memory/code             : 13401565
memory/ets              : 1082848

vm process

Query the number of Erlang processes and their limits:

$ ./bin/emqx_ctl vm process
process/limit           : 2097152
process/count           : 314

vm io

Query the number of file descriptors and their limits:

$ ./bin/emqx_ctl vm io
io/max_fds              : 10240
io/active_fds           : 0

vm ports

Query the number of occupied ports and their limits:

$ ./bin/emqx_ctl vm ports
ports/count           : 18
ports/limit           : 1048576

mnesia command

Query the mnesia database system status.

log command

The log command is used to set the log level. Visit Documentation of logger for more information in detail.

Command	Description
log set-level <Level>	Set the primary log level and all Handlers log levels
log primary-level	Check the primary log level
log primary-lelvel <Level>	Set the primary log level
log handlers list	View all Hanlders currently installed
log handlers set-level <HandlerId> <Level>	Set the log level with the specified Hanlder

The levels of the logs from low to high are: debug | info | notice | warning | error | critical | alert | emergency. The lower the log level, the more logs the system outputs, and the more system resources it consumes. To improve system performance, the default primary log level is error.

log set-level <Level>

Set the primary log level and all Handlers log levels

$ ./bin/emqx_ctl log set-level debug
debug

log primary-level

View the primary log level:

$ ./bin/emqx_ctl log primary-level
debug

log primary-level <Level>

Set the primary log level:

$ ./bin/emqx_ctl log primary-level info
info

log handlers list

View all Hanlders currently installed:

$ ./bin/emqx_ctl log handlers list
LogHandler (id=emqx_logger_handler, level=debug, destination=unknown)
LogHandler (id=file, level=debug, destination=log/emqx.log)
LogHandler (id=default, level=debug, destination=console)

log handlers set-level <HandlerId> <Level>

Set the log level with the specified Hanlder:

$ ./bin/emqx_ctl log handlers set-level emqx_logger_handler error
error

trace command

The trace command is used to trace a client or topic, and print log information to a file. For details, see Log and Trace.

Command	Description
trace list	List all started traces
trace start client <ClientId> <File> [<Level>]	Start client trace and store logs of specified level to a file
trace stop client <ClientId>	Stop Client trace
trace start topic <Topic> <File> [<Level>]	Start Topic trace and store logs of specified level to a file
trace stop topic <Topic>	Stop Topic trace

trace start client <ClientId> <File> [ <Level> ]

Start client trace:

$ ./bin/emqx_ctl log primary-level debug
debug

$ ./bin/emqx_ctl trace start client clientid log/clientid_trace.log
trace clientid clientid successfully

$ ./bin/emqx_ctl trace start client clientid2 log/clientid2_trace.log error
trace clientid clientid2 successfully

trace stop client <ClientId>

Stop client trace:

$ ./bin/emqx_ctl trace stop client clientid
stop tracing clientid clientid successfully

trace start topic <Topic> <File> [ <Level> ]

Start Topic trace:

$ ./bin/emqx_ctl log primary-level debug
debug

$ ./bin/emqx_ctl trace start topic topic log/topic_trace.log
trace topic topic successfully

$ ./bin/emqx_ctl trace start topic topic2 log/topic2_trace.log error
trace topic topic2 successfully

trace stop topic <Topic>

Stop Topic trace:

$ ./bin/emqx_ctl trace topic topic off
stop tracing topic topic successfully

trace list

List all started traces:

$ ./bin/emqx_ctl trace list
Trace (clientid=clientid2, level=error, destination="log/clientid2_trace.log")
Trace (topic=topic2, level=error, destination="log/topic2_trace.log")

listeners

The listeners command is used to query the active TCP service listeners.

Command	Description
listeners	Query active TCP Service Listeners
listeners stop <Proto> <Port>	Stop listener port, support mqtt: ssl, mqtt: tcp, http: dashboard, http: management, mqtt: ws, mqtt: wss protocol

listeners list

Query the active TCP service listeners

$ ./bin/emqx_ctl listeners
listener on mqtt:ssl:8883
    acceptors       : 16
    max_conns       : 102400
    current_conn    : 0
    shutdown_count  : []
listener on mqtt:tcp:0.0.0.0:1883
    acceptors       : 8
    max_conns       : 1024000
    current_conn    : 0
    shutdown_count  : []
listener on mqtt:tcp:127.0.0.1:11883
    acceptors       : 4
    max_conns       : 1024000
    current_conn    : 2
    shutdown_count  : []
listener on http:dashboard:18083
    acceptors       : 2
    max_conns       : 512
    current_conn    : 0
    shutdown_count  : []
listener on http:management:8081
    acceptors       : 2
    max_conns       : 512
    current_conn    : 0
    shutdown_count  : []
listener on mqtt:ws:8083
    acceptors       : 2
    max_conns       : 102400
    current_conn    : 0
    shutdown_count  : []
listener on mqtt:wss:8084
    acceptors       : 2
    max_conns       : 16
    current_conn    : 0
    shutdown_count  : []

listener parameter description:

Name	Description
acceptors	TCP Acceptor pool
max_conns	Maximum allowed connections
current_conns	Current connections
shutdown_count	Statistics of connection shutdown reasons

listeners stop <Proto> <Port>

Stop listener port:

$ ./bin/emqx_ctl listeners stop mqtt:tcp 0.0.0.0:1883
Stop mqtt:tcp listener on 0.0.0.0:1883 successfully.

recon command

The recon command of EMQ X Broker is based on the Erlang Recon library, which is used to help DevOps staff to diagnose problems in the production node, and ordinary users do not need to care. The recon command will consume some performance, so, please use it with caution.

Command	Description
recon memory	recon_alloc:memory/2
recon allocated	recon_alloc:memory (allocated_types, current/max)
recon bin_leak	recon:bin_leak (100)
recon node_stats	recon:node_stats_print(10, 1000)
recon remote_load Mod	recon:remote_load (Mod)
recon proc_count Attr N	recon:proc_count(Attr, N)

Visit Documentation for recon for more information.

retainer command

Command	Description
retainer info	Show the number of retained messages
retainer topics	Display all topics of currently stored retained messages
retainer clean	Clean all retained messages
retainer clean <Topic>	Clean retained messages with the specified topic

retainer info

Show the number of retained messages:

$ ./bin/emqx_ctl retainer info
retained/total: 3

retainer topics

Show all topics of currently stored retained messages:

$ ./bin/emqx_ctl retainer topics
$SYS/brokers/emqx@127.0.0.1/version
$SYS/brokers/emqx@127.0.0.1/sysdescr
$SYS/brokers

retainer clean

Clear all retained messages:

$ ./bin/emqx_ctl retainer clean
Cleaned 3 retained messages

retainer clean <Topic>

Clear the retained messages with the specified topic:

$ ./bin/emqx_ctl retainer clean topic
Cleaned 1 retained messages

admins command

It is used to create and delete administrator's accounts and reset the administrator's password.

Command	Description
admins add <Username> <Password> <Tags>	Create admin account
admins passwd <Username> <Password>	Reset admin password
admins del <Username>	Delete admin account

admins add <Username> <Password> <Tags>

Create admin account:

$ ./bin/emqx_ctl admins add root public test
ok

admins passwd <Username> <Password>

Reset admin password:

$ ./bin/emqx_ctl admins passwd root private
ok

admins del <Username>

Delete admin account:

$ ./bin/emqx_ctl admins del root
ok

Rule engine command

rules command

Command	Description
rules list	List all rules
rules show <RuleId>	Show a rule
rules create <sql> <actions> [-d [<descr>]]	Create a rule
rules delete <RuleId>	Delete a rule

rules create

Create a new rule with the following parameter:

• <sql>: rule SQL
• <actions>: Action list in JSON format
• -d <descr>: Optional, rule description

Example

## Create a test rule to simply print the content of all messages sent to the 't / a' topic
$ ./bin/emqx_ctl rules create \
  'select * from "t/a"' \
  '[{"name":"inspect", "params": {"a": 1}}]' \
  -d 'Rule for debug'

Rule rule:9a6a725d created

The above example creates a rule with the ID rule:9a6a725d. There is only one action in the action list with the name inspect, and the action parameters are {" a ": 1}.

rules list

List all current rules:

$ ./bin/emqx_ctl rules list

rule(id='rule:9a6a725d', for='['t/a']', rawsql='select * from "t/a"', actions=[{"metrics":...,"name":"inspect","params":...}], metrics=..., enabled='true', description='Rule for debug')

rules show

Query rules:

## Query rule with RuleID 'rule:9a6a725d'
$ ./bin/emqx_ctl rules show 'rule:9a6a725d'

rule(id='rule:9a6a725d', for='['t/a']', rawsql='select * from "t/a"', actions=[{"metrics":...,"name":"inspect","params":...}], metrics=..., enabled='true', description='Rule for debug')

rules delete

Delete rule:

## Delete rule with RuleID 'rule:9a6a725d'
$ ./bin/emqx_ctl rules delete 'rule:9a6a725d'

ok

rule-actions command

Command	Description
rule-actions list	List actions
rule-actions show <ActionId>	Show a rule action

TIP

Actions can be built-in by EMQ X Broker (called system built-in actions) or be written by EMQ X Broker plugins, but cannot be added or removed through the CLI/API.

rule-actions show

Query action:

## Query action named 'inspect'
$ ./bin/emqx_ctl rule-actions show 'inspect'

action(name='inspect', app='emqx_rule_engine', types=[], title ='Inspect (debug)', description='Inspect the details of action params for debug purpose')

rule-actions list

List eligible actions:

## List all current actions
$ ./bin/emqx_ctl rule-actions list

action(name='data_to_rabbit', app='emqx_bridge_rabbit', types=[bridge_rabbit], title ='Data bridge to RabbitMQ', description='Store Data to Kafka')
action(name='data_to_timescaledb', app='emqx_backend_pgsql', types=[timescaledb], title ='Data to TimescaleDB', description='Store data to TimescaleDB')
...

resources command

Command	Description
resources create <type> [-c [<config>]] [-d [<descr>]]	Create a resource
resources list [-t <ResourceType>]	List resources
resources show <ResourceId>	Show a resource
resources delete <ResourceId>	Delete a resource

resources create

Create a new resource with the following parameters:

• type: resource type

• -c config: Configuration in JSON format

• -d descr: Optional, description of the resource

  $ ./bin/emqx_ctl resources create 'web_hook' -c '{"url": "http://host-name/chats"}' -d 'forward msgs to host-name/chats'

  Resource resource:a7a38187 created

resources list

List all current resources:

$ ./bin/emqx_ctl resources list

resource(id='resource:a7a38187', type='web_hook', config=#{<<"url">> => <<"http://host-name/chats">>}, status=#{is_alive => false}, description='forward msgs to host-name/chats')

List resources of a certain type:

$ ./bin/emqx_ctl resources list --type='web_hook'

resource(id='resource:a7a38187', type='web_hook', config=#{<<"url">> => <<"http://host-name/chats">>}, status=#{is_alive => false}, description='forward msgs to host-name/chats')

resources show

Query resource:

$ ./bin/emqx_ctl resources show 'resource:a7a38187'

resource(id='resource:a7a38187', type='web_hook', config=#{<<"url">> => <<"http://host-name/chats">>}, status=#{is_alive => false}, description='forward msgs to host-name/chats')

resources delete

Delete resource:

$ ./bin/emqx_ctl resources delete 'resource:a7a38187'

ok

resource-types command

Command	Description
resource-types list	List all resource-types
resource-types show <Type>	Show a resource-type

TIP

Resource type can be built-in by EMQ X Broker (called system built-in resource type) or be written by EMQ X Broker plugins, but cannot be added or removed through the CLI/API

resource-types list

List all current resource types:

./bin/emqx_ctl resource-types list

resource_type(name='backend_mongo_rs', provider='emqx_backend_mongo', title ='MongoDB Replica Set Mode', description='MongoDB Replica Set Mode')
resource_type(name='backend_cassa', provider='emqx_backend_cassa', title ='Cassandra', description='Cassandra Database')
...

resource-types show

Query resource type:

$ ./bin/emqx_ctl resource-types show backend_mysql

resource_type(name='backend_mysql', provider='emqx_backend_mysql', title ='MySQL', description='MySQL Database')

Status, statistical indicators and alerts related to the rules engine

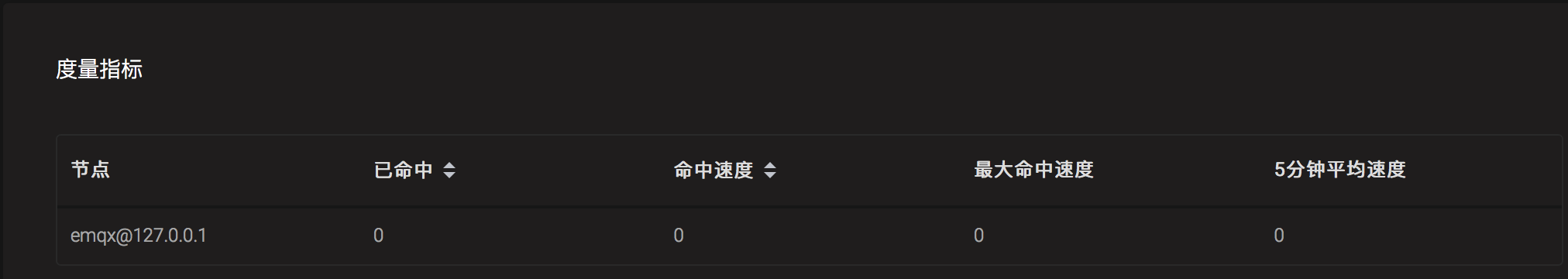

Rule status and statistical indicators

• Hits: number of rule hits (match succeed for rule SQL),
• Hit Speed: Speed of rule hits (times/second)
• Maximum hit speed: Peak value of hit speed (times/second)
• 5 minute average speed: Average hit speed in 5 minutes (times/second)

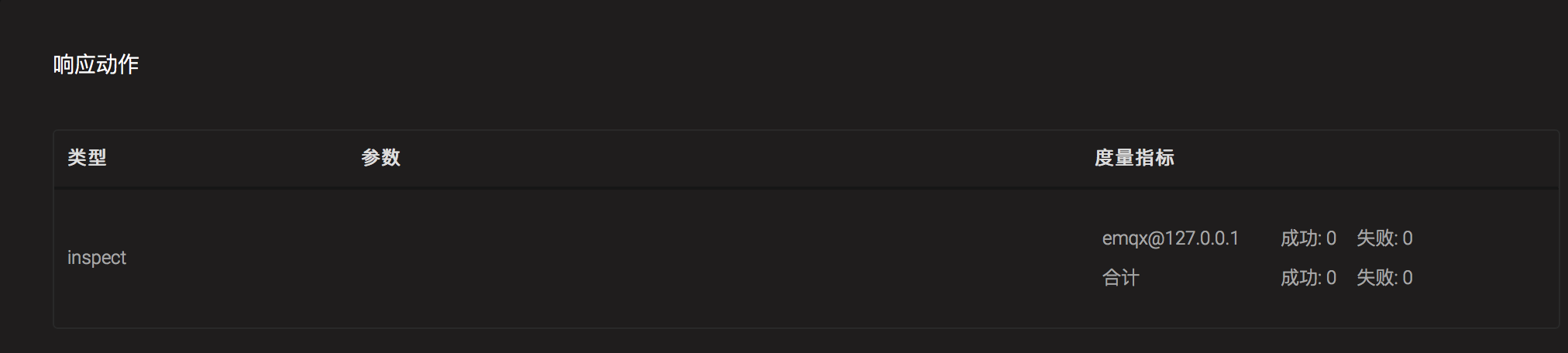

Action status and statistical indicators

• Success: Number of successful actions
• Failure: Number of failed actions

Resource status and alerts

• Available: Resources available
• Unavailable: resources unavailable (e.g. database connection shutdown)
