Features List

• Full MQTT V3.1 / V3.1.1 and V5.0 protocol specification support
  • QoS0, QoS1, QoS2 message support
  • Persistent conversation and offline message support
  • Retained message support
  • Last Will message support
• TCP / SSL connection support
• MQTT / WebSocket / SSL support
• HTTP message publishing interface support
• $SYS/# system theme support
• Client online status query and subscription support
• Client ID or IP address authentication support
• User name and password authentication support
• LDAP authentication
• Redis, MySQL, PostgreSQL, MongoDB, HTTP authentication integration
• Browser cookie authentication
• Access control (ACL) based on client ID, IP address, user name
• Multi-server node cluster (Cluster)
• Support manual, mcast, dns, etcd, k8s and other cluster discovery methods
• Automatic network partition healing
• Message rate limit
• Connection rate limit
• Configure nodes by partition
• Multi-server node bridge (Bridge)
• MQTT Broker bridge support
• Stomp protocol support
• MQTT-SN protocol support
• CoAP protocol support
• Stomp/SockJS support
• Delay Publish ($delay/topic)
• Flapping detection
• Blacklist support
• Shared subscription($share/<group>/topic)
• TLS / PSK support
• Rule engine
  • No action (debug)
  • Message republish
  • Bridge data to MQTT Broker
  • Check (debug)
  • Send data to web service

The following are the unique features of EMQ X Enterprise

• Scalable RPC architecture: Separate Erlang's own cluster channel from EMQ X nodes data channel
• Data persistence
  • Redis stores subscription relationships, device online status, MQTT messages, retained messages, and publishes SUB/UNSUB events
  • MySQL stores subscription relationships, device online status, MQTT messages and retained messages
  • PostgreSQL stores subscription relationships, device online status, MQTT messages and retained messages
  • MongoDB stores subscription relationships, device online status, MQTT messages and retained messages
  • Cassandra stores subscription relationships, device online status, MQTT messages and retained messages
  • DynamoDB stores subscription relationships, device online status, MQTT messages and retained messages
  • InfluxDB stores MQTT timing messages
  • OpenTDSB stores MQTT timing messages
  • TimescaleDB stores MQTT timing messages
• Message bridge
  • Kafka bridge: EMQ X built-in Bridge directly forwards MQTT messages and device online and offline events to Kafka
  • RabbitMQ bridge: EMQ X built-in Bridge directly forwards MQTT messages and device online and offline events to RabbitMQ
  • Pulsar bridge: EMQ X built-in Bridge directly forwards MQTT messages and device online and offline events to Pulsar
  • RocketMQ bridge: EMQ X built-in Bridge directly forwards MQTT messages and device online and offline events to RocketMQ
• Rule engine
  • Message codec
  • Bridge data to Kafka
  • Bridge data to RabbitMQ
  • Bridge data to RocketMQ
  • Bridge data to Pulsar
  • Save data to PostgreSQL
  • Save data to MySQL
  • Save data to OpenTSDB
  • Save data to Redis
  • Save data to DynamoDB
  • Save data to MongoDB
  • Save data to InfluxDB
  • Save data to Timescale
  • Save data to Cassandra
• Schema Registry: provide data encoding and decoding capabilities for EMQ X events and messages

Function Description

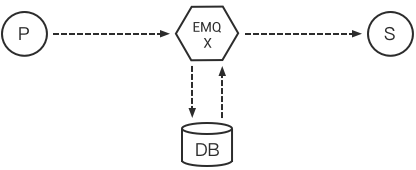

Message data storage

EMQ X Enterprise Version supports storing subscription relationships, MQTT messages, device status to Redis, MySQL, PostgreSQL, MongoDB, Cassandra, TimescaleDB, InfluxDB, DynamoDB, OpenTDSB databases:

For data storage related configuration, please refer to "Data Storage" chapter for details.

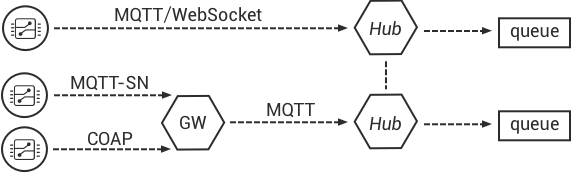

Message bridge and forward

EMQ X Enterprise version supports directly forwarding MQTT messages to RabbitMQ, Kafka, Pulsar, RocketMQ, MQTTBroker, which can be used as a million-level IoT access server (IoT Hub):

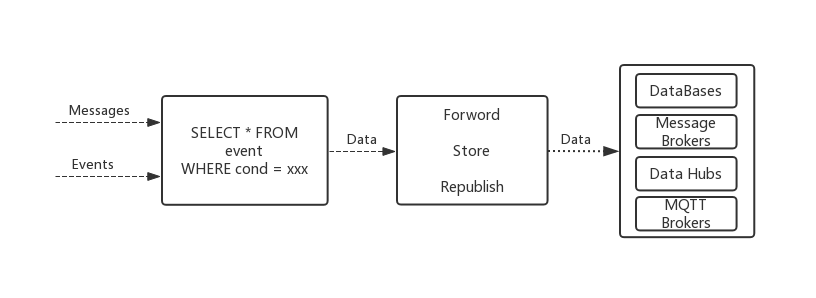

Rule engine

EMQ X rules engine can flexibly process messages and events.

EMQ X Enterprise version rules engine supports message re-publishing, bridging data to Kafka, Pulsar, RocketMQ, RabbitMQ, MQTT Broker, saving data to MySQL, PostgreSQL, Redis, MongoDB, DynamoDB, Cassandra, InfluxDB, OpenTSDB, TimescaleDB, and sending data to WebServer :

For the configuration of the rule engine, see the "Rules Engine" chapter for details.

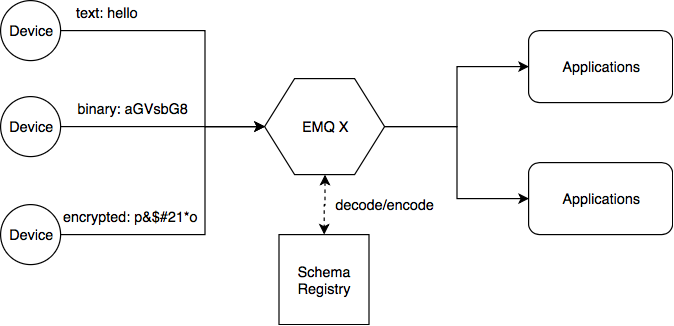

Schema Registry

Schema Registry Currently, three formats of codec are supported: Avro, Protobuf and custom encoding. Among them, Avro and Protobuf are data formats that depend on Schema. The encoded data is binary, and the decoded data is map format. The decoded data can be directly used by the rule engine and other plugins. The user-defined (3rd-party) codec service uses HTTP or TCP callback to make it closer to business needs.

For codec related configuration, please refer to "Codec" chapter for details.
