EMQX Edge Product Overview
Product Introduction

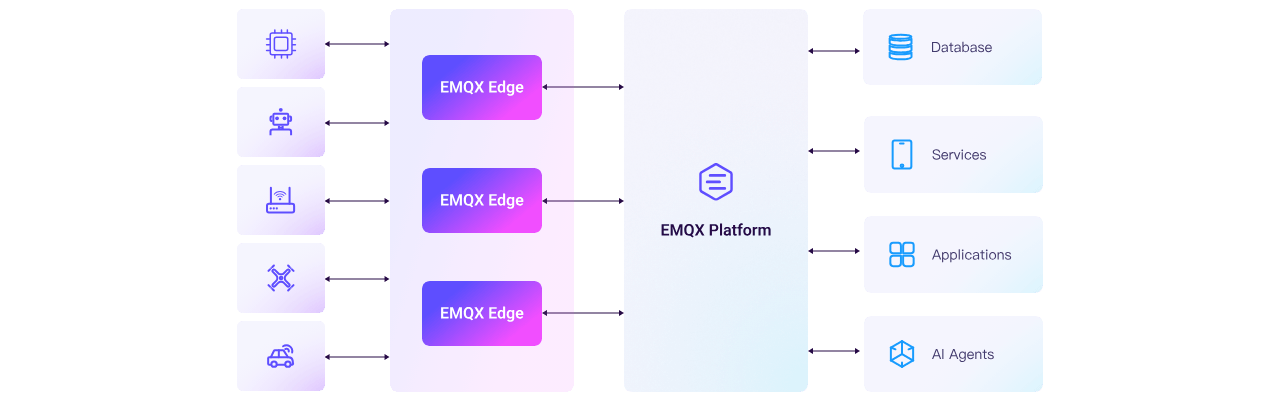

EMQX Edge is the enterprise edition of the open-source NanoMQ project, designed specifically for edge computing environments in IoT deployments. As a lightweight, high-performance MQTT broker, EMQX Edge serves as a data aggregation hub at the edge, seamlessly bridging local IoT devices with cloud-based MQTT brokers such as EMQX Enterprise, AWS IoT Core, and other cloud IoT platforms.
Built on the foundation of NanoMQ's proven architecture and enhanced with enterprise-grade features, EMQX Edge provides a robust, scalable solution for organizations requiring reliable edge-to-cloud data synchronization. The product's core strength lies in its advanced MQTT bridging capabilities, supporting TCP protocol to ensure optimal performance across diverse network conditions.
Product Advantages
Enterprise-Grade Management Console
- Web-based Dashboard: Intuitive web interface for centralized management and monitoring
- Real-time Monitoring: Comprehensive visibility into edge node performance, client connections, and message flows
- User Management: Secure access control with role-based permissions
- Operational Insights: Built-in Prometheus metrics export for integration with enterprise monitoring systems
Advanced MQTT Bridging Technology
- TCP Protocol Support: MQTT over TCP for optimal network performance
- Transparent Bridging: Automatic subscription forwarding for seamless edge-cloud communication
- QoS Priority Management: Enhanced message delivery guarantees with configurable quality of service
Edge-Optimized Performance
- Ultra-lightweight: Minimal memory footprint starting at 200KB
- Multi-core Optimization: Built-in Actor framework for efficient SMP utilization
- High Throughput: Capable of handling millions of messages per second
- Low Latency: Optimized for real-time edge computing requirements
Enterprise Security & Reliability
- Authentication & Authorization: Multiple authentication methods including username/password, HTTP
- Access Control: Flexible ACL policies for fine-grained permission management
- Network Resilience: Automatic reconnection and message queuing for unstable network conditions
Feature Matrix
| Feature Category | Feature | Description |
|---|---|---|
| Core MQTT Engine | MQTT 5.0/3.1.1 Compliance | Full protocol support with all standard MQTT features |
| QoS Management | Support for all MQTT QoS levels (0, 1, 2) | |
| Bridging & Connectivity | TCP Bridge | Traditional MQTT over TCP bridging |
| Transparent Bridging | Automatic subscription forwarding | |
| Message Persistence | Local storage with offline caching and retransmission | |
| Management & Operations | Web Dashboard | Intuitive web-based management interface |
| HTTP API | RESTful APIs for automation and integration | |
| Prometheus Metrics | Built-in metrics export for monitoring | |
| Security & Access Control | Authentication | Multiple auth methods (username/password, HTTP) |
| ACL Management | Fine-grained access control policies | |
| TLS/SSL Support | Encrypted communication channels | |
| Protocol Support | MQTT | Primary messaging protocol |
| WebSocket | Web-based client connectivity | |
| HTTP WebHook | Event-driven integration capabilities | |
| Performance & Scalability | Multi-threading | SMP optimization for multi-core systems |
| Actor Framework | Asynchronous I/O for high concurrency | |
| Memory Optimization | Minimal resource footprint |
Use Cases
Industrial IoT Edge Gateway
- Collect data from multiple industrial sensors and devices
- Bridge data to cloud-based MQTT brokers for centralized processing
- Provide local data persistence and offline capabilities
Smart City Infrastructure
- Aggregate data from distributed IoT sensors (traffic, environment, utilities)
- Bridge to cloud platforms for city-wide monitoring and analytics
- Ensure reliable data transmission across diverse network conditions
Retail & Commercial Buildings
- Connect building management systems and IoT devices
- Bridge operational data to cloud-based analytics platforms
- Maintain local data availability for critical operations
Transportation & Logistics
- Collect real-time data from fleet vehicles and cargo tracking devices
- Bridge location and sensor data to cloud platforms
- Ensure data continuity during network interruptions
Technical Specifications
- Platform Support: Linux, macOS, Windows (Linux recommended)
- Architecture: Single instance with multi-threading support
- Memory Requirements: 200KB minimum, scalable based on features
- Protocol Support: MQTT 3.1.1/5.0, WebSocket, HTTP
- Bridging Protocols: MQTT over TCP
- Authentication: Username/password, HTTP-based
- Security: TLS/SSL, ACL policies
- Monitoring: Prometheus metrics, comprehensive logging
- Management: Web dashboard, HTTP API, command-line tools
EMQX Edge combines the reliability of open-source NanoMQ with enterprise-grade management capabilities, making it the ideal choice for organizations seeking robust edge-to-cloud data synchronization solutions.
