Log Management

Download Logs

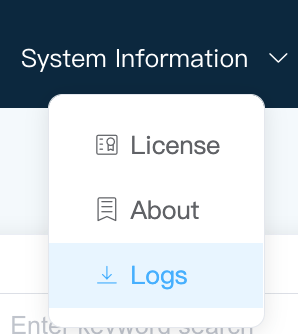

Neuron supports one-click download of all log filed on web pages in version 2.3, as shown below.

The log download function bundles the /neuron/build/logs folder into the neuron_logs.tar.gz file and downloads it to a web page. The file contains all the created driver and neuron log files. Directory-level examples of files are shown below.

• data-stream-processing.log: data processing configuration;
• dlt645.log: northbound application configuration;
• modbus-plus-tcp.log: southbound application configuration;
• neuron.log: log of Neuron.

Output Debug Log of Certain Node

Neuron supports the setting of printing debug logs of a node and automatically switching back to the default log level after approximately ten minutes. The Settings for each node are independent of each other.

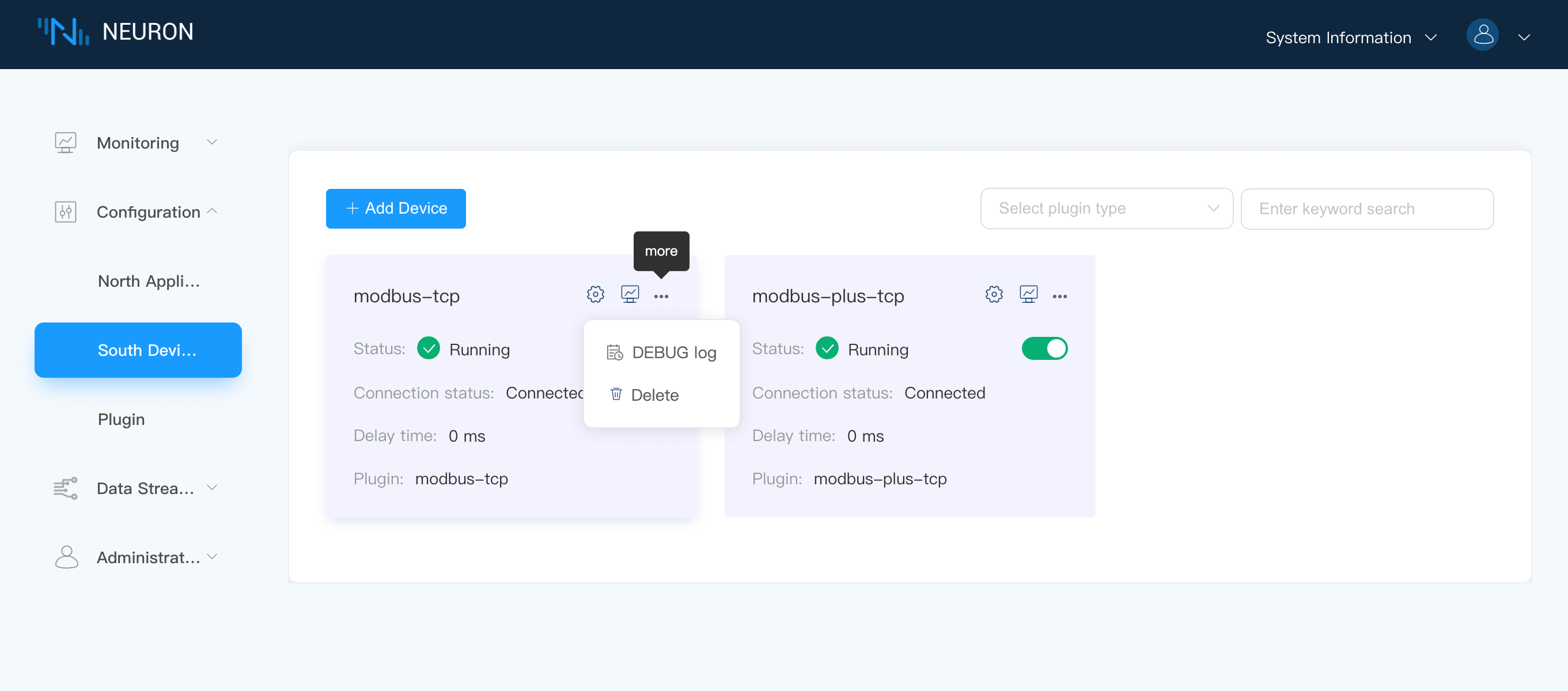

Each node's more operation button has a DEBUG log operation button, as shown below.

When you click this button, a prompt like the one below appears.

In this case, the node starts to print debug logs. You can download the logs about ten minutes later to view the logs of the node, or view the logs under /build/logs.

TIP

When the node debug log is printed, the neuron log will also be printed, and the default log level will be automatically switched back after ten minutes.

zlog.conf

Explanation of the log configuration file. In addition, there is also dev.conf, which is used for development debugging, printing logs, and outputting them to the terminal. When launching Neuron, add --log parameter to call dev.conf

[global]

file perms = 666

[formats]

simple = "%d [%V] %f:%L %m%n"

[rules]

*.*     "./logs/%c.log", 50MB * 1 ~ "./logs/%c.#2s.log"; simple

The configuration file is divided into three sections: [global], [formats], [rules].

Global

file perms: specify the default access permissions when creating a file.

• 600: only the owner has read and write permissions.
• 644: only the owner has read and write permissions, while group users and other users have only read permissions.
• 700: only the owner has read, write and execute permissions.
• 755: the owner has read, write and execute permissions, while group users and other users have only read and execute permissions.
• 711: the owner has read, write and execute permissions, while group users and other users have only execute permissions.
• 666: all users have read and write permissions for the file.
• 777: all users have read, write and execute permissions.

Formats

Conversion format string: Conversion format string is similar to C's printf function. It is possible to customize the format of the logs. The method is as follows: specify the name of the format with format_name, replace 'your format' with your own custom format, which should be enclosed in quotes.

format_name = "your format"

• %d, print the log time;
• %V, log level, in uppercase;
• %f, source code file name;
• %L, source code line number;
• %m, user log, the log entered by the user from the zlog function;
• %n, newline character.

Rules

Rules describe how logs are filtered, formatted, and outputted. Grammar:

(category).(level) (output),(options, optional); (format name, optional)

category

Classification levels.

Summary	Configuration file rule classification	Matching code classification	Non-matching code classification
*Match all	*.*	aa，aa_bb，aa_cc，yy ...	NONE
Categories ending with _ match the current and subcategories.	aa_.*	aa, aa_bb, aa_cc, aa_bb_cc	xx, yy
Categories not ending with _ match the exact category name.	aa.*	aa	aa_bb, aa_cc, aa_bb_cc
!Match categories with no rules found.	!.*	xx	aa

level

zlog has six default levels: "DEBUG", "INFO", "NOTICE", "WARN", "ERROR", "FATAL". For example, *.DEBUG means any log level greater than or equal to DEBUG will be output.

Expression	Meaning
*.*	All levels
*.debug	Code internal level >= debug
*.=debug	Code internal level == debug
*.!debug	Code internal level != debug

(output),(options, optional);

[output],[options, optional];

Action	Output Field	Additional Options
Standard output	>stdout	N/A
Standard error output	>stderr	N/A
Syslog output	>syslog	Syslog facility (facility): LOG_USER (default), LOG_LOCAL [0-7] Required
Pipe output	|cat	N/A
File	"File path"	File rotation, 10M * 3 ～ "press.#r.log". For example, "./logs/%c.log", 50MB * 1 ~ "./logs/%c.#2s.log" means rotate every 50M, #2s means the length of the serial number is at least 2 digits, starting from 00.
Synchronous IO file	-"File path"	N/A
User-defined output	$name	"path" is used for record output, dynamic or static.

For example, only output logs to syslog.

[global]

file perms = 666

[formats]

simple = "%d [%V] %f:%L %m%n"

[rules]

*.*    	>syslog, LOG_LOCAL0; simple

(format name, optional)

[format name, optional]
