LLM Configuration
Device Agent uses the primary agent model to generate DeviceSpecs, understand chat requests, and call device commands. Configure at least one reachable primary agent model before starting the quick start.
Console Configuration

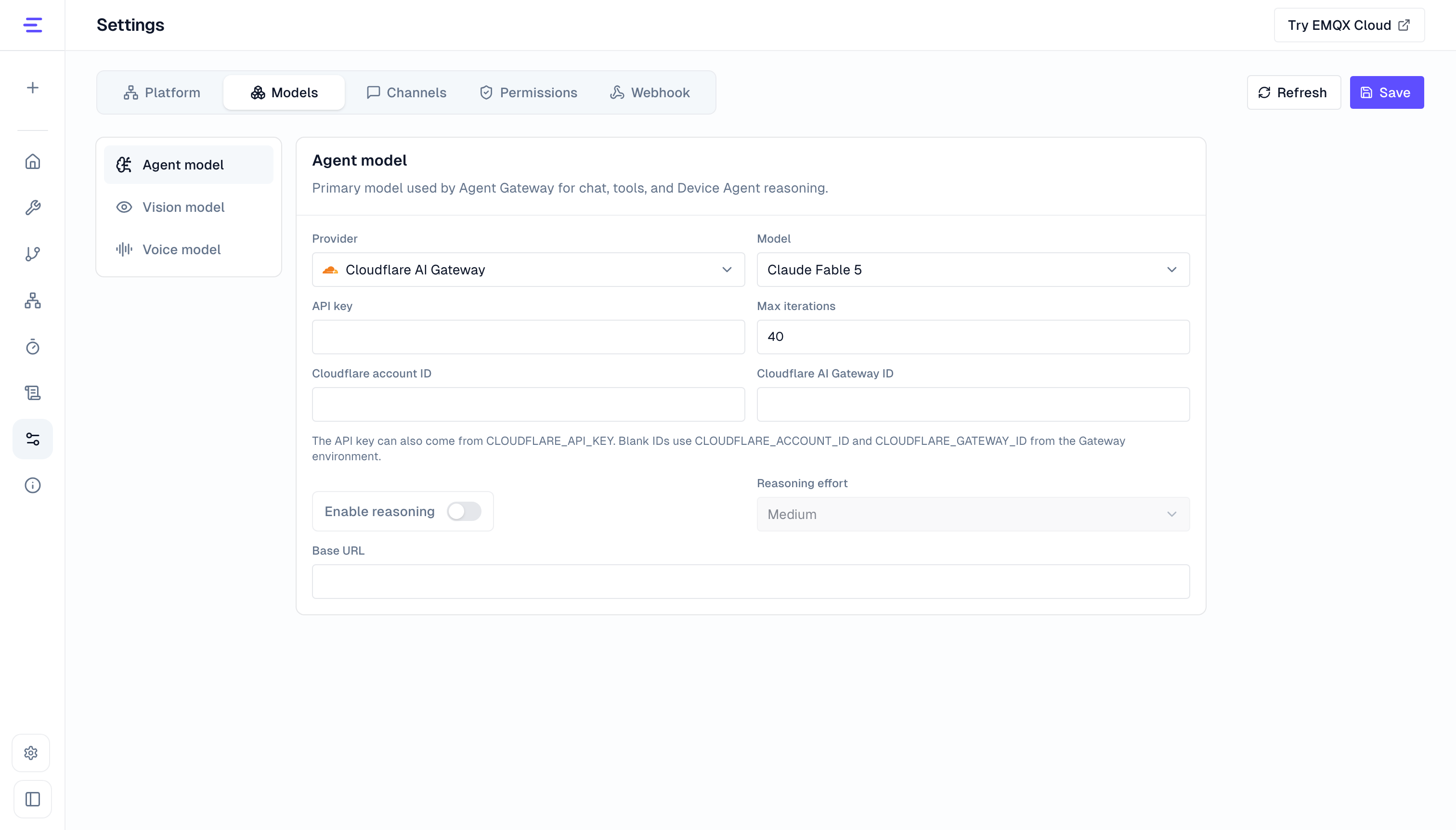

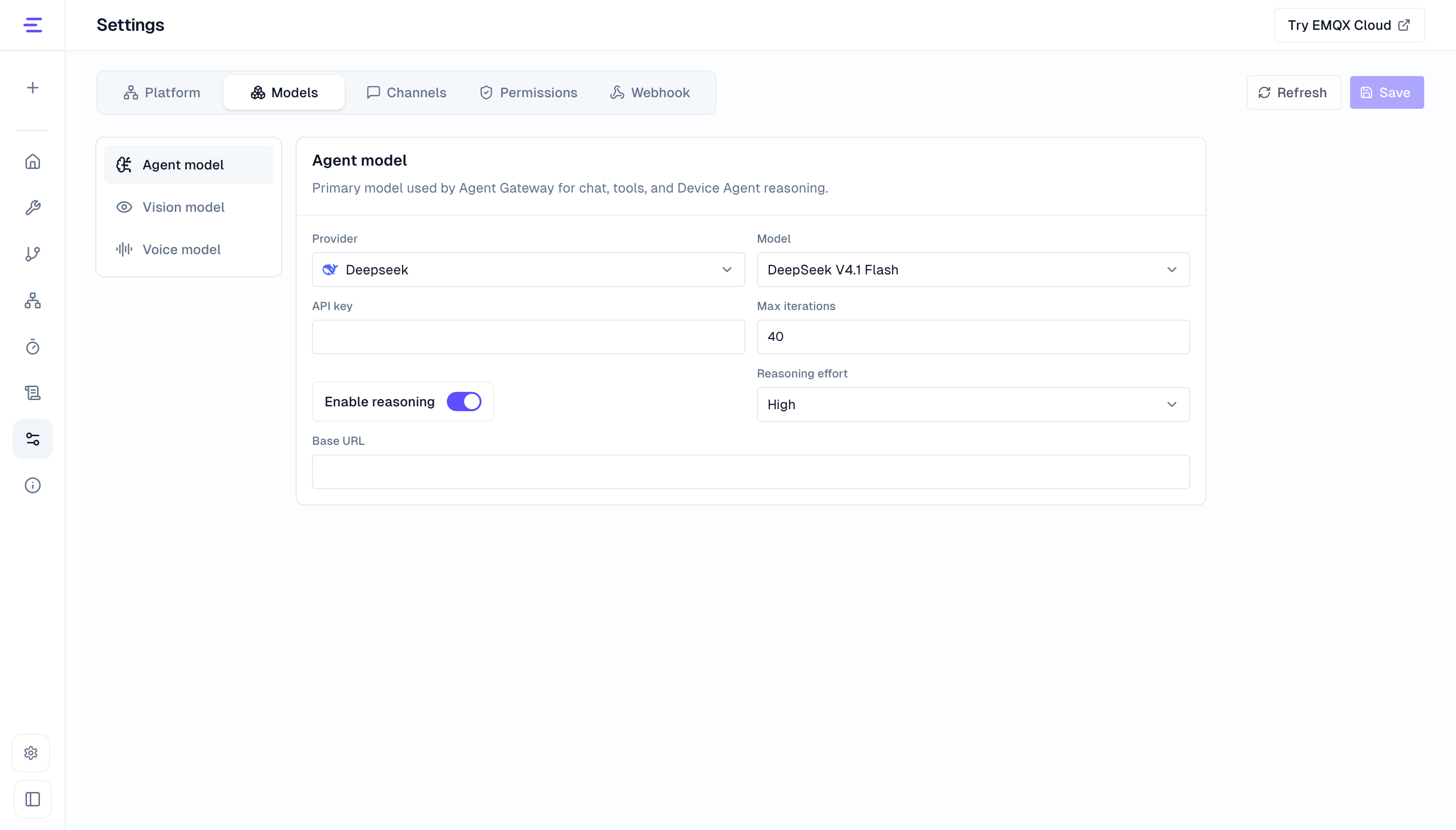

After Device Agent starts, open http://127.0.0.1:3000, go to Settings → Models, and configure the Agent model area:
| Field | Notes |
|---|---|
| Provider | Select the LLM provider. Common entries include openai, anthropic, qwen, kimi, ollama, and openai-compatible. |
| Model | Select or enter the model ID. Dropdown options come from the selected provider's available model list; custom entries such as openai-compatible allow manual model IDs. |
| API key | Enter the credential for the selected provider. |
| Base URL | Set this for custom OpenAI-compatible endpoints or local model services. openai-compatible usually requires it. ollama defaults to http://localhost:11434/v1 when left empty. |
| Max iterations | Maximum reasoning and tool-call iterations for one request. The default is usually enough. |
After saving, restart Agent Gateway before continuing if the page indicates that a restart is required.
LLM Providers
Available providers and models can change across versions and deployments. Use the list shown in Settings → Models as the source of truth.
Common entries include:
- OpenAI (
openai) - Anthropic (
anthropic) - Qwen / DashScope (
qwen) - Kimi (
kimi) - Ollama (
ollama) - OpenAI-compatible endpoint (
openai-compatible) - Google / Google Vertex (
google,google-vertex) - DeepSeek (
deepseek) - OpenRouter (
openrouter) - xAI (
xai) - Groq (
groq) - Mistral (
mistral) - Amazon Bedrock (
amazon-bedrock) - Azure OpenAI Responses (
azure-openai-responses) - Vercel AI Gateway (
vercel-ai-gateway) - GitHub Copilot (
github-copilot) - OpenCode (
opencode,opencode-go) - Codex (
openai-codex)
Common configuration patterns:
| Type | Example LLM_PROVIDER | Configuration |
|---|---|---|
| OpenAI | openai | Set OPENAI_API_KEY. Fill Base URL only when using a proxy or custom compatible endpoint. |
| Anthropic | anthropic | Set ANTHROPIC_API_KEY. |
| Other providers | google, deepseek, openrouter, xai, groq, mistral, and others | Select the provider and model in the console, then fill API key. For startup config, LLM_API_KEY can be used as the generic credential. |
| OpenAI-compatible endpoint | openai-compatible | Set a custom model ID, LLM_BASE_URL, and LLM_API_KEY. OPENAI_API_KEY can also provide the credential. |
| Qwen / DashScope | qwen | Set QWEN_API_KEY. Defaults to https://dashscope.aliyuncs.com/compatible-mode/v1. |
| Kimi | kimi | Set KIMI_API_KEY. OPENAI_API_KEY can also be used as a compatible credential. Defaults to https://api.moonshot.cn/v1. |
| Kimi Coding | kimi-coding | Set KIMI_API_KEY. |
| Ollama | ollama | Local model service. Defaults to http://localhost:11434/v1 and usually does not need an API key. |
| Codex | openai-codex | Uses a special auth flow. See the Codex section below. |
Common examples are openai / gpt-5.5, anthropic / claude-sonnet-4-6, qwen / qwen-plus, and ollama / llama3.2.
Codex Auth
openai-codex is not configured like a normal OpenAI API key. The recommended path is to sign in with the Codex CLI on the machine running Device Agent, then let Device Agent read the default ~/.codex/auth.json. You can also override it with either of the following options:
LLM_PROVIDER=openai-codex
LLM_MODEL=<codex-model-id>
OPENAI_CODEX_AUTH_FILE=/path/to/auth.jsonOr provide an access token directly:
LLM_PROVIDER=openai-codex
LLM_MODEL=<codex-model-id>
OPENAI_CODEX_ACCESS_TOKEN=...When openai-codex is selected in the console, the regular API key field acts as a Codex access token override. The Codex auth file field points to auth.json. If neither field is set, Device Agent tries the Codex CLI default auth file.
.env Configuration
Use .env for first startup, container deployment, or environments without UI access. Common examples are below.
OpenAI:
LLM_PROVIDER=openai
LLM_MODEL=gpt-5.5
OPENAI_API_KEY=sk-...Qwen:
LLM_PROVIDER=qwen
LLM_MODEL=qwen-plus
QWEN_API_KEY=sk-...OpenAI-compatible endpoint:
LLM_PROVIDER=openai-compatible
LLM_MODEL=your-model-id
LLM_BASE_URL=https://llm.example.com/v1
LLM_API_KEY=sk-...Ollama:
LLM_PROVIDER=ollama
LLM_MODEL=llama3.2
LLM_BASE_URL=http://localhost:11434/v1Codex:
LLM_PROVIDER=openai-codex
LLM_MODEL=<codex-model-id>
OPENAI_CODEX_AUTH_FILE=~/.codex/auth.jsonValues in .env are written into or used to override .device_agent/config.json at startup. To keep values saved from the console long-term, remove the matching .env variables or keep both places aligned.
Model Requirements
The quick start needs a model that can reliably generate structured output and perform tool calls. Use a model with tool-call support and at least an 8K context window. For longer device descriptions or conversations with more device state, use a 32K or larger context window.
Vision Model
The vision model is used for camera images, screenshots, and multimodal input analysis. You can skip it for a basic device-control quick start.
| Mode | Configuration | Notes |
|---|---|---|
| Auto | VISION_PROVIDER=auto | Default mode. Reuses the primary agent model when it supports image input. No separate API key is needed. |
| DashScope | VISION_PROVIDER=dashscope, VISION_MODEL=qwen-vl-plus or qwen-vl-max, VISION_API_KEY=... | Uses a separate Qwen VL model. Use this when the primary agent model does not support images, or when vision should be configured separately. |
The console Vision model area controls enablement, provider, model, API key, and timeout.
For all configuration sources and apply behavior, see Configuration.
