MQTT Client Attributes

Client attributes in EMQX provide a mechanism that allows developers to define and set additional attributes for MQTT clients based on the requirements of different application scenarios. These attributes are integral to enhancing authentication, authorization, data integration, and MQTT extension functionalities within EMQX, thereby facilitating flexible development. By leveraging client metadata, this feature also supports flexible templating for MQTT client identification, which is essential for personalized client configurations and streamlined authentication processes, enhancing the adaptability and efficiency of development efforts.

Workflow

The process of setting, storing, and using client attributes is as follows:

1. Set Client Attributes

When a client successfully connects to EMQX, EMQX triggers connection and authentication events, and during this process, client attributes are set based on predefined configurations.

2. Store and Destroy Client Attributes

Once set, the attributes are stored as key-value pairs in the client_attrs field of the client session. When the client session ends, these attributes are deleted.

For persistent sessions, when a client takes over, it will replace and overwrite the client attributes in the session. Besides this, there is no way to modify or delete client attributes.

3. Use Client Attributes

Other functionalities of EMQX allow the use of the ${client_attrs.NAME} placeholder in related configuration items, dynamically extracting attribute values to be used as part of their configuration or data.

Set Client Attributes

When a client successfully connects to EMQX, EMQX triggers connection and authentication events and sets client attributes based on predefined configurations. Currently, the following 2 methods are supported:

• Extracting from client metadata
• Setting during the client authentication process

Extract from Client Metadata

Through preset configurations, substrings are extracted and processed from client connection metadata such as usernames and client IDs and set as client attributes. This extraction happens before the authentication process, ensuring that the attributes are ready to be used in subsequent steps, such as used in the HTTP request body template or SQL template for composing authentication and authorization requests.

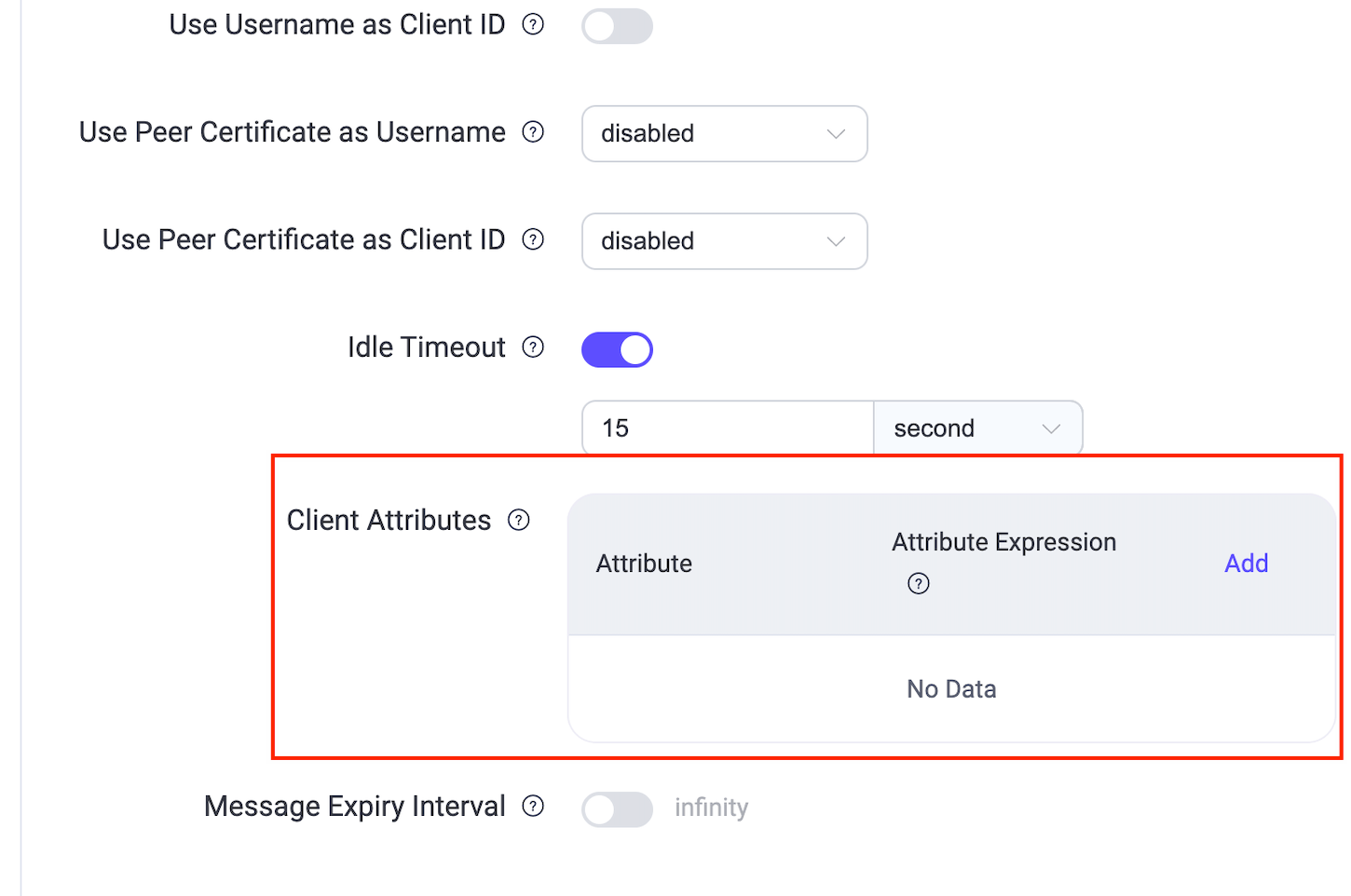

You can configure the client attribute functionality via the configuration file or Dashboard. To configure the attribute extraction via the Dashboard, click Management -> MQTT Settings. At Client Attributes, click Add to add the attribute name and attribute expression.

Where,

• Attribute is the name of the attribute.
• Attribute Expression is the configuration for extracting the attribute.

The attribute expression supports using Variform expressions and predefined functions to dynamically process values. For example:

• To extract the prefix of a client ID delimited by a dot: nth(1, tokens(clientid, '.'))
• To truncate part of the username: substr(username, 0, 5)

The corresponding configuration file is as follows:

mqtt {
    client_attrs_init = [
        {
            expression = "nth(1, tokens(clientid, '.'))"
            set_as_attr = clientid_prefix
        },
        {
            expression = "substr(username, 0, 5)"
            set_as_attr = sub_username
        }
    ]
}

The attribute expression supports the configuration of the following values:

• clientid: Client ID

• username: Username

• cn: CN field of the TLS certificate

• dn: DN field of the TLS certificate

• cert_san.dns: DNS names in the TLS client certificate

• cert_san.ip: IPv4 and IPv6 addresses in the TLS client certificate

• cert_san.email: Email addresses in the TLS client certificate

• cert_san.uri: URIs in the TLS client certificate

• user_property.*: Extracts attribute values from User-Property in the MQTT CONNECT packet, e.g., user_property.foo

• zone: The zone name inherited from MQTT listener

For detailed information about the client attributes configurations, see EMQX Enterprise Configuration Manual.

Initialize Client Attributes from Certificate Subject Alternative Names

Starting from EMQX Enterprise 6.3.0, mqtt.client_attrs_init expressions can extract subject alternative names (SANs) from a client certificate when the TLS connection terminates at EMQX. Each cert_san.* variable is an array. Use a Variform array function to select an entry, or join multiple entries into one client attribute.

For example, the following configuration sets client_attrs.san_dns to the first DNS name and client_attrs.san_dns_all to all DNS names separated by commas:

mqtt {
    client_attrs_init = [
        {
            expression = "nth(1, cert_san.dns)"
            set_as_attr = san_dns
        },
        {
            expression = "join_to_string(',', cert_san.dns)"
            set_as_attr = san_dns_all
        }
    ]
}

The cert_san.* variables are available only when initializing client attributes. To use a SAN value in authentication, authorization, or another supported feature, first save it as a client attribute and then reference it through ${client_attrs.NAME}.

If the certificate does not contain the requested SAN type, the corresponding variable is an empty array. When nth() selects an entry that does not exist, EMQX does not set the target client attribute. EMQX rejects the connection if an extracted SAN value contains non-printable control characters, such as carriage returns (\r) or line feeds (\n).

Important Notice

EMQX can extract SANs only when the TLS connection terminates at EMQX and the client presents its certificate to an EMQX TLS listener. Proxy Protocol v2 does not carry SAN information. If a load balancer terminates TLS, cert_san.* values are unavailable to EMQX. If the load balancer forwards the TLS connection to EMQX without terminating it, EMQX can still extract SANs from the client certificate.

Set During the Client Authentication Process

During the client authentication process, client attributes can be set based on information returned by the authenticator, currently supported:

• JWT Authentication: Set client attributes in the client_attrs field in the Token payload when issuing a Token.
• HTTP Authentication: Set client attributes in the client_attrs field in the successful HTTP response.

The key and value of the attributes must be string. This method allows for dynamic setting of attributes based on the results of authentication, adding flexibility in use.

Merge Authentication Data

When setting client attributes through both methods or using multiple authenticators, EMQX merges the attributes based on the attribute names and the order of settings:

• Attributes extracted from client metadata are overwritten by attributes set by the authenticators.
• When multiple authenticators set attributes in the authentication chain, later set attributes overwrite earlier ones.

Application of Client Attributes

In other EMQX functionalities, client attributes can be extracted using the ${client_attrs.NAME} placeholder and used as part of the configuration or data. Currently, it is only supported for client authentication and authorization, with more features to be opened in the future.

Client Authentication

Use authentication placeholders for SQL statements, query commands, or HTTP request bodies as dynamic parameters, for example:

# MySQL/PostgreSQL - Authentication query SQL
SELECT password_hash, salt, is_superuser FROM mqtt_user WHERE sn = ${client_attrs.sn} LIMIT 1

# HTTP - Authentication request Body
{
 "sn": "${client_attrs.sn}",
 "password": "${password}"
}

For specific usage, refer to the documentation for each authenticator.

TIP

Client authentication can only use attributes set from client metadata.

Client Authorization

Use data query placeholders and topic placeholders for SQL statements, query commands, and topics.

Example Scenario:

Client attributes such as role, productId, deviceId are set for each client. These attributes are used for authorization checks:

• role: Used to restrict client access rights, only allowing clients with the admin role to subscribe and publish management messages, such as topics matching admin/#.
• productId: Used to restrict clients to only subscribe to OTA messages applicable to the current product, like OTA/{productId}.
• deviceId: Used to restrict clients to only publish and subscribe to messages on topics belonging to themselves:
  • Publish: up/{productId}/{deviceId}
  • Subscribe: down/{productId}/{deviceId}

Use Authorization - Built-in Database to configure the following rules to implement:

Permission	Operation	Topic
Allow	Subscribe & Publish	${client_attrs.role}/#
Allow	Subscribe	OTA/${client_attrs.productId}
Allow	Publish	up/${client_attrs.productId}/${client_attrs.deviceId}
Allow	Subscribe	down/${client_attrs.productId}/${client_attrs.deviceId}

Compared to directly using static properties like client ID, this approach more flexibly manages client authorization. This flexibility allows for granular control of client access rights based on different roles, products, and devices.
