Auto Subscribe

Note

Auto Subscribe is an EMQX Enterprise feature.

Auto Subscribe is an extended MQTT feature supported by EMQX. With Auto Subscription enabled, users can set multiple EMQX rules. After a client is successfully connected to EMQX, EMQX will complete the subscription process for the client automatically, and the clients no longer need to send SUBSCRIBE requests.

Before EMQX 5.0, this feature is called Proxy Subscription.

Configure Auto Subscribe via Dashboard

  1. Open EMQX Dashboard. In the left navigation menu, click Management -> Auto Subscribe.

  2. On the Auto Subscribe page, click the + Add button at the upper right corner.

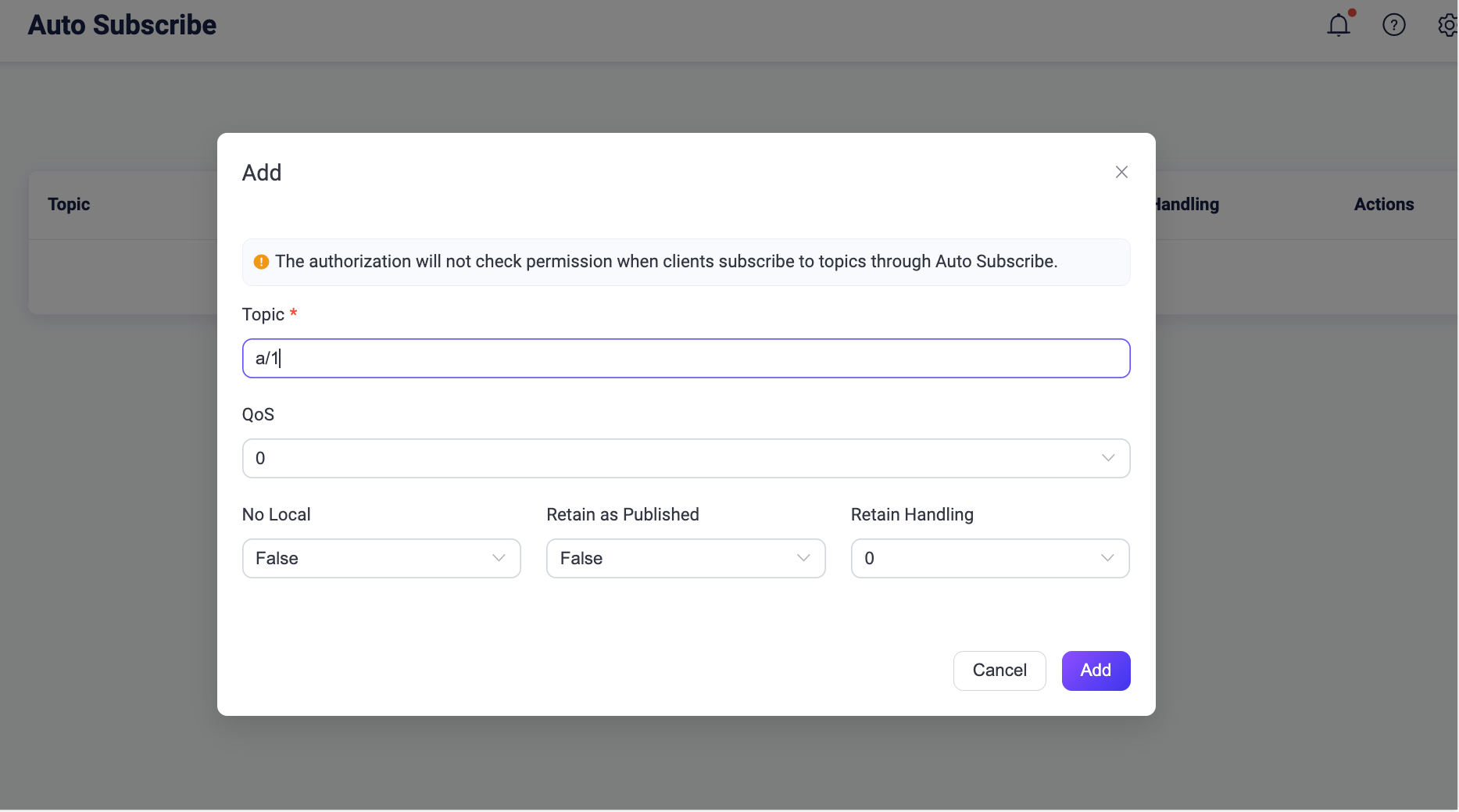

  3. In the pop-up dialog box, type the test topic a/1 in the Topic text box. Leave other settings as default.

    • Topic: Type the topic that is automatically subscribed to for the client.

    • QoS: Specify the quality of service of the topic. Options: 0, 1, and 2.

    • No local: Options: False or True.

    • Retain as Published: Specify if the message sent with the specified topic will be retained. Options: False or True.

    • Retained Handling: Options: 0, 1, and 2.

      config-auto-subscribe-dashboard

    Click the Add button on the dialogue box. The auto subscribe topic a/1 is created successfully.

    auto-sub-success

Now the auto subscription function is enabled. New subscribers will subscribe to the topic a/1 automatically once they are connected to the broker.

Try Auto Subscription Using MQTTX Desktop

The topic a/1 is configured as the auto-subscribe topic in Configure Auto Subscribe via Dashboard. The following procedure demonstrates how a client subscribes to the topic a/1 automatically once it is connected to the broker.

Prerequisite

Basic publishing and subscribing operations using MQTTX Desktop.

  1. Start EMQX and MQTTX Desktop. Click the New Connection to create a client connection as a publisher.

    • Enter Demo in the Name field.
    • Enter the localhost 127.0.0.1 in Host to use as an example in this demonstration.
    • Leave other settings as default and click Connect.

    TIP

    More detailed instructions on creating an MQTT connection are introduced in MQTTX Desktop.

    Configure-new-connection-general
  2. Create another MQTT client connection named Subscriber.

  3. Select client Demo in the Connections pane. Enter a/1 as the topic. Send a message to this topic.

    • The client Subscriber receives the message automatically without creating a new subscription.

    • The client Demo also receives the message as it is also a new connection.

      TIP

      In the publish/subscribe pattern, a client can be both sender and subscriber.

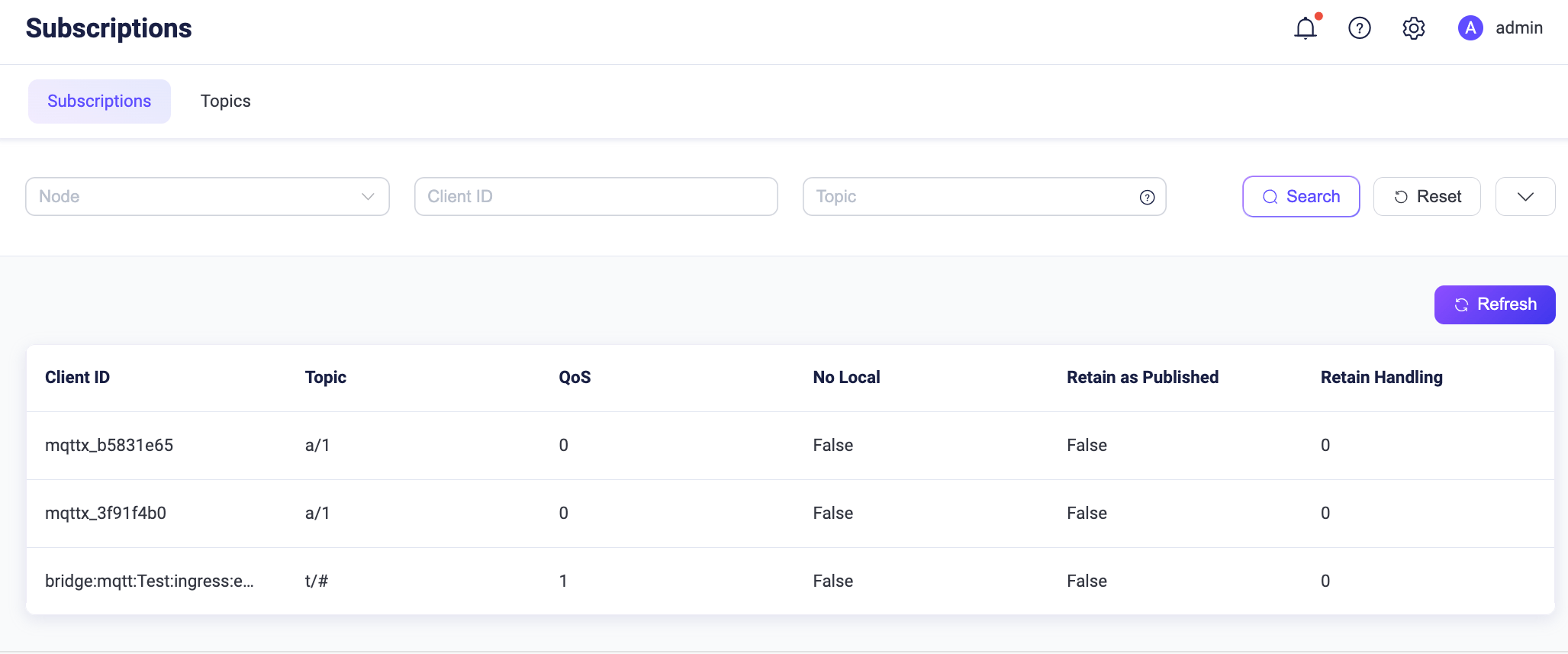

  4. Go to EMQX Dashboard. Click Monitoring -> Subscriptions from the left navigation menu. It shows two subscriptions automatically subscribe to the topic a/1.

    view-auto-sub-dashboard

Try Auto Subscription using MQTTX CLI

Prerequisite

Basic publishing and subscribing operations using MQTTX CLI

  1. Create a new connection with client ID as emqx_c.

    bash
    mqttx conn -i emqx_c
  2. Go to EMQX Dashboard. Click Monitoring ->Subscriptions in the left navigation menu. It shows the client emqx_c subscribes to the topic a/1.

    auto-sub-emqx_c
