Integrate with LDAP

Lightweight Directory Access Protocol (LDAP) is a protocol used to access and manage directory information. EMQX supports integrating with an LDAP server for authorization checks. The LDAP authorizer implements authorization checks by matching publish/subscription requests against lists of attributes stored in the LDAP server.

Prerequisite

• Knowledge about basic EMQX authorization concepts

LDAP Data Schema and Query

The LDAP authorizer checks the client authorization against the authorization data stored within the LDAP directory. An LDAP schema defines the structure and rules for organizing and storing the authorization data. The LDAP authorizer supports almost any storage schema. Here is a schema example for OpenLDAP:

attributetype ( 1.3.6.1.4.1.11.2.53.2.2.3.1.2.3.4.1 NAME ( 'mqttPublishTopic' 'mpt' )
	EQUALITY caseExactMatch
	SUBSTR caseExactSubstringsMatch
	SYNTAX 1.3.6.1.4.1.1466.115.121.1.15
	USAGE userApplications )
attributetype ( 1.3.6.1.4.1.11.2.53.2.2.3.1.2.3.4.2 NAME ( 'mqttSubscriptionTopic' 'mst' )
	EQUALITY caseExactMatch
	SUBSTR caseExactSubstringsMatch
	SYNTAX 1.3.6.1.4.1.1466.115.121.1.15
	USAGE userApplications )
attributetype ( 1.3.6.1.4.1.11.2.53.2.2.3.1.2.3.4.3 NAME ( 'mqttPubSubTopic' 'mpst' )
	EQUALITY caseExactMatch
	SUBSTR caseExactSubstringsMatch
	SYNTAX 1.3.6.1.4.1.1466.115.121.1.15
	USAGE userApplications )
attributetype ( 1.3.6.1.4.1.11.2.53.2.2.3.1.2.3.4.4 NAME ( 'mqttAclRule' 'mar' )
	EQUALITY caseExactMatch
	SUBSTR caseExactSubstringsMatch
	SYNTAX 1.3.6.1.4.1.1466.115.121.1.15
	USAGE userApplications )

objectclass ( 1.3.6.1.4.1.11.2.53.2.2.3.1.2.3.4 NAME 'mqttUser'
    SUP top
	STRUCTURAL
	MAY ( mqttPublishTopic $ mqttSubscriptionTopic $ mqttPubSubTopic $ mqttAclRule ) )

This schema introduces multi-valued attributes that specify authorization rules for different MQTT operations:

• mqttPublishTopic: Topics the client is allowed to publish to.
• mqttSubscriptionTopic: Topics the client is allowed to subscribe to.
• mqttPubSubTopic: Topics the client is allowed to both publish to and subscribe to.
• mqttAclRule: Fine-grained ACL rules in JSON format for advanced access control.

EMQX supports both simple topic whitelists (with wildcards) using the first three attributes, and more expressive rules through mqttAclRule. See Access Control List (ACL) for the ACL rule format.

Example LDIF Entries

Below is an example of LDAP authorization data specified in LDAP Data Interchange Format (LDIF) based on the given schema for OpenLDAP:

## create organization: emqx.io
dn:dc=emqx,dc=io
objectclass: top
objectclass: dcobject
objectclass: organization
dc:emqx
o:emqx,Inc.

## create organization unit: testdevice.emqx.io
dn:ou=testdevice,dc=emqx,dc=io
objectClass: top
objectclass:organizationalUnit
ou:testdevice

dn:uid=mqttuser0001,ou=testdevice,dc=emqx,dc=io
objectClass: top
objectClass: mqttUser
uid: mqttuser0001
## allows publishing to these 3 topics
mqttPublishTopic: mqttuser0001/pub/1
mqttPublishTopic: mqttuser0001/pub/+
mqttPublishTopic: mqttuser0001/pub/#
## allows subscribe to these 3 topics
mqttSubscriptionTopic: mqttuser0001/sub/1
mqttSubscriptionTopic: mqttuser0001/sub/+
mqttSubscriptionTopic: mqttuser0001/sub/#
## the underneath topics allow both publish or subscribe
mqttPubSubTopic: mqttuser0001/pubsub/1
mqttPubSubTopic: mqttuser0001/pubsub/+
mqttPubSubTopic: mqttuser0001/pubsub/#
mqttAclRule: [{"permission": "allow", "action": "pub", "topic": "mqttuser0001/complexrule/1"}]
mqttAclRule: {"permission": "allow", "action": "pub", "topic": "mqttuser0001/complexrule/#"}


dn:uid=mqttuser0002,ou=testdevice,dc=emqx,dc=io
objectClass: top
objectClass: mqttUser
uid: mqttuser0002
mqttPublishTopic: mqttuser0002/pub/#
mqttSubscriptionTopic: mqttuser0002/sub/1
mqttPubSubTopic: mqttuser0002/pubsub/#

The given example defines a multi-valued attribute for each action. Each attribute can repeat zero or more times, depending on how many topics are allowed for this action.

Example LDAP Server Configuration

To ensure your LDAP server loads the schema and data correctly, you need to include the schema file and LDIF entries in your server configuration. Below is an example slapd.conf file:

TIP

You can determine how and where LDAP authorization data is stored based on your business needs.

include         /usr/local/etc/openldap/schema/core.schema
include         /usr/local/etc/openldap/schema/cosine.schema
include         /usr/local/etc/openldap/schema/inetorgperson.schema
include         /usr/local/etc/openldap/schema/emqx.schema

TLSCACertificateFile  /usr/local/etc/openldap/cacert.pem
TLSCertificateFile    /usr/local/etc/openldap/cert.pem
TLSCertificateKeyFile /usr/local/etc/openldap/key.pem

database mdb
suffix "dc=emqx,dc=io"
rootdn "cn=root,dc=emqx,dc=io"
rootpw {SSHA}eoF7NhNrejVYYyGHqnt+MdKNBh4r1w3W

directory       /usr/local/etc/openldap/data

Configure LDAP Authorizer via Dashboard

You can use EMQX Dashboard to configure how to use LDAP for user authorization.

1. On EMQX Dashboard, click Access Control -> Authorization on the left navigation menu to enter the Authorization page.

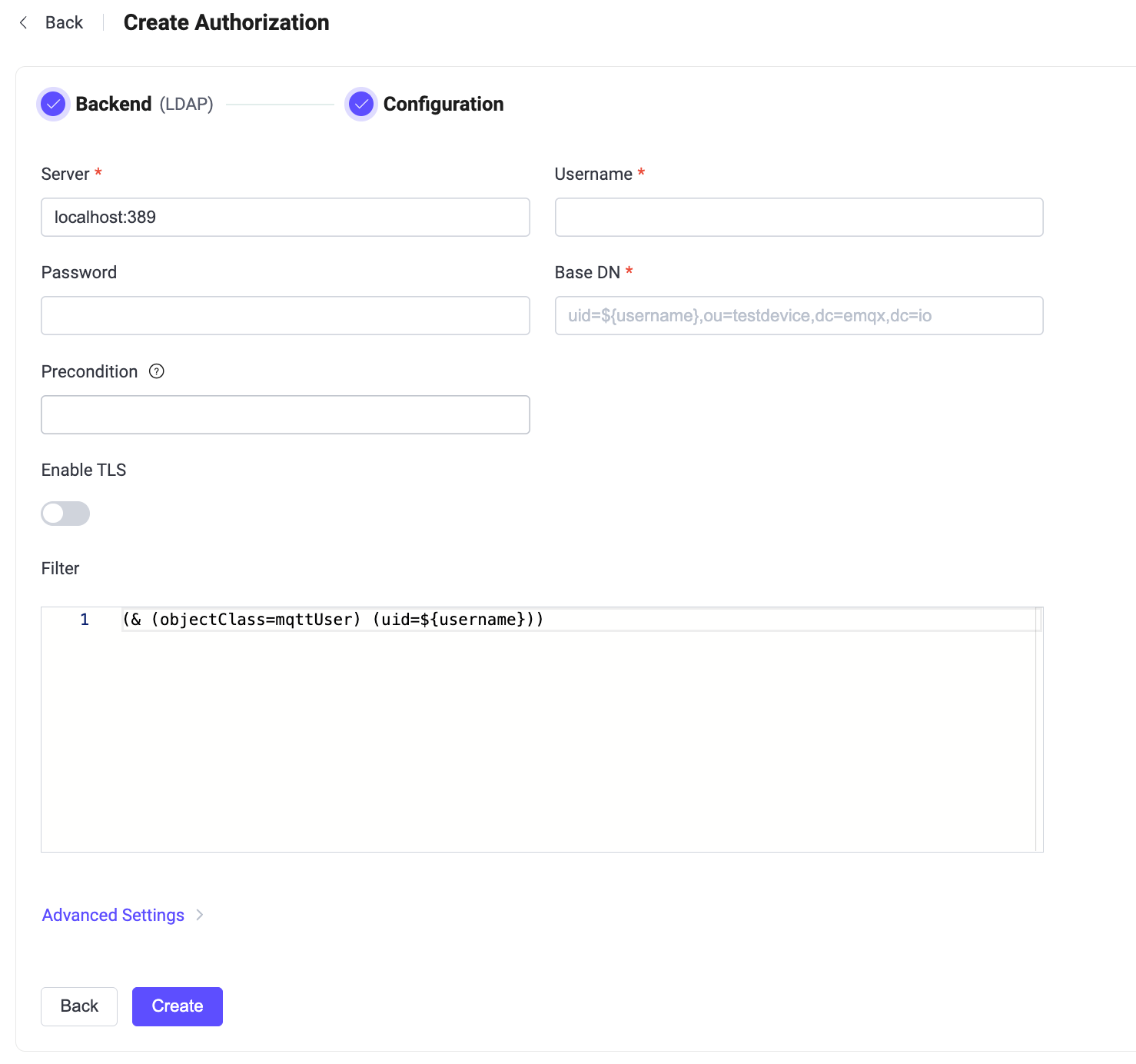

2. Click Create at the top right corner, then click to select LDAP as Backend. Click Next. The Configuration tab is shown below.



3. Follow the instructions below to do the configuration.

   Connect: Fill in the information needed to connect to LDAP.

   • Server: Specify the server address that EMQX is to connect (host:port).
   • Username Specify the LDAP root user name.
   • Password Specify the LDAP root user password.

   TLS Configuration: Turn on the toggle switch if you want to enable TLS.

   Connection Configuration: Set the concurrent connections and waiting time before a connection is timed out.

   • Pool size (optional): Input an integer value to define the number of concurrent connections from an EMQX node to LDAP. Default: 8.
   • Query Timeout (optional): Specify the waiting period before EMQX assumes the query is timed out. Units supported include milliseconds, second, minute, and hour.

   Authorization configuration: Fill in the authorization-related settings:

   • Base DN: The name of the base object entry (or possibly the root) relative to which the search is to be performed. For more information, see RFC 4511 Search Request, the placeholders are supported.

     TIP

     DN refers to Distinguished Name. This is a unique identifier of each object entry and it also describes the location of the entry within the information tree.

   • Filter: The filter that defines the conditions that must be fulfilled in order for the Search to match a given entry. The syntax of the filter follows RFC 4515 and also supports placeholders.

4. Click Create to finish the settings.

Configure LDAP Authorizer via Configuration Items

You can configure the EMQX LDAP authorizer with EMQX configuration items.

The LDAP authorizer is identified by type ldap.

Sample configuration:

{
  type = ldap

  server = "127.0.0.1:389"
  publish_attribute = "mqttPublishTopic"
  subscribe_attribute = "mqttSubscriptionTopic"
  all_attribute = "mqttPubSubTopic"
  acl_rule_attribute = "mqttAclRule"
  query_timeout = "5s"
  username = "root"
  password = "root password"
  pool_size = 8
  base_dn = "uid=${username},ou=testdevice,dc=emqx,dc=io"
  filter = "(objectClass=mqttUser)"
}
