Connect to DMG MORI via MTConnect

This guide demonstrates how to connect DMG MORI CNC to Neuron using the MTConnect protocol, with the MTConnect cppagent as the intermediate agent.

Architecture Overview

DMG MORI Machine 1 ──TCP:7878──┐
                               ├── MTConnect Agent (Docker) ──HTTP:5000── Neuron
DMG MORI Machine 2 ──TCP:7878──┘

Each DMG MORI machine runs an adapter that pushes real-time operating data to the MTConnect cppagent via TCP port 7878. The agent aggregates the data and serves it through an HTTP REST API on port 5000, from which Neuron collects the data using the MTConnect plugin.

Deploy MTConnect Agent

Pull the agent Docker image and run the container. For more details, visit cppagent.

shell

docker pull mtconnect/agent:2.7
docker run -d --name mtcagent -it -p 5000:5000/tcp -v ./conf:/mtconnect/config mtconnect/agent:2.7

The ./conf directory on the host contains the configuration files: agent.cfg and Devices.xml.

Configure agent.cfg

agent.cfg specifies the adapters (DMG MORI machines), the HTTP port, and other agent settings:

ini

Devices = Devices.xml
SchemaVersion = 2.7
WorkerThreads = 3
MonitorConfigFiles = yes
Port = 5000
JsonVersion = 2

MinCompressFileSize = 10k

Files {
  schemas {
    Path = ../data/schemas
    Location = /schemas/
  }
  styles {
    Path = ../data/styles
    Location = /styles/
  }
  Favicon {
      Path = ../data/styles/favicon.ico
      Location = /favicon.ico
  }
}

Directories {
  twin {
    Path = ../twin/
    Location = /twin/
    Default = index.html
  }
}

Sinks {
#  MqttService {
#  }
}

DevicesStyle { Location = /styles/styles.xsl }
StreamsStyle { Location = /styles/styles.xsl }

Adapters {
  DMG_MORI {
    Port = 7878
    Host = 172.16.146.145
  }
  DMG_MORI1 {
    Port = 7878
    Host = 172.16.146.135
  }
}

logger_config {
  output = file /tmp/agent.log
  level = debug
}

Parameter	Description
`Devices`	Path to the device model XML file.
`Port`	HTTP port for the agent API (default 5000).
`Adapters`	Defines the machines that push data to the agent. Each entry specifies the adapter's TCP host and port.

Configure Devices.xml

Devices.xml describes the data model for each machine — what data items are available (axes, controller status, spindle, etc.) and their types. This file follows the MTConnect schema and is typically provided by the machine vendor. Two identical DMG MORI machines with MAPPS controllers are defined in this example.

Configure Neuron

Add Device

Go to Configuration -> South Devices and click Add Device. Select the MTConnect plugin and configure the following parameters:

Parameter	Value
host	MTConnect Agent IP address
port	5000
ns_prefix	m
ns_uri	`urn:mtconnect.org:MTConnectStreams:2.7`

TIP

The version number in ns_uri should match the SchemaVersion configured in agent.cfg. For example, if SchemaVersion = 2.7, use MTConnectStreams:2.7.

Configure Data Groups and Tags

Add a group with the desired collection interval (e.g., 1000 ms). Then add tags using XPath addresses to select the desired data items from the MTConnect stream.

How to Write an Address

To determine the correct address for a data item, fetch the current snapshot from the Agent and locate the target data element in the XML.

shell

wget http://$AGENT_IP:5000/current

For example, a current response for the DMG MORI device may contain the following fragment:

xml

<Samples>
  <Position dataItemId="DMGXact" name="Xact" timestamp="..." subType="ACTUAL">-40.139</Position>
  <Load dataItemId="DMGXload" name="Xload" timestamp="...">6</Load>
</Samples>
<Events>
  <Execution dataItemId="DMGexecution1" name="execution1" timestamp="...">ACTIVE</Execution>
  <PartCount dataItemId="DMGpart_count1" name="part_count1" timestamp="...">17</PartCount>
</Events>
<Condition>
  <Normal dataItemId="DMGmotion1" name="motion1" timestamp="..." type="MOTION_PROGRAM" />
</Condition>

To compose the address:

Use //m: followed by the XML element name (e.g., Position, Load, Execution) and a [@dataItemId="..."] filter.
For items with text content, use the default format: //m:ElementName[@dataItemId="<id>"]
For self-closing tags (often CONDITION items), prepend node-name: to extract the element tag name: node-name://m:*[@dataItemId="<id>"]

Data to Collect	Address
X-axis position (`DMGXact`)	`//m:Position[@dataItemId="DMGXact"]`
Execution status (`DMGexecution1`)	`//m:Execution[@dataItemId="DMGexecution1"]`
Alarm/motion status (`DMGmotion1`)	`node-name://m:*[@dataItemId="DMGmotion1"]`

Address Format

Tags use XML XPath expressions with the m: namespace prefix. The address selects a data item by its dataItemId attribute.

Address	Data Type	Description
`//m:PartCount[@dataItemId="DMGpart_count1"]`	INT32	Part count
`//m:LineLabel[@dataItemId="DMGline1"]`	STRING	Cycle time label
`//m:Execution[@dataItemId="DMGexecution1"]`	STRING	Execution status
`//m:OperationMode[@dataItemId="DMGoperationmode1"]`	STRING	Operation mode
`//m:ControllerMode[@dataItemId="DMGmode1"]`	STRING	Controller mode
`//m:PathFeedrateOverride[@dataItemId="DMGjogoverride1"]`	STRING	Jog feedrate override
`//m:PathFeedrateOverride[@dataItemId="DMGrapidoverride1"]`	STRING	Rapid feedrate override
`//m:PathFeedrate[@dataItemId="DMGpath_feedrate1"]`	DOUBLE	Path feedrate (mm/s)
`//m:RotaryVelocityOverride[@dataItemId="DMGspindleoverride5"]`	STRING	Spindle override
`//m:RotaryVelocityOverride[@dataItemId="DMGspindleoverride8"]`	STRING	Spindle speed override
`//m:Load[@dataItemId="DMGXload"]`	INT32	Servo load 1 (X)
`//m:Load[@dataItemId="DMGYload"]`	INT32	Servo load 2 (Y)
`//m:Load[@dataItemId="DMGZload"]`	INT32	Servo load 3 (Z)
`//m:Load[@dataItemId="DMGBload"]`	INT32	Servo load 4 (B)
`//m:ToolNumber[@dataItemId="DMGtoolnumber1"]`	STRING	Tool number
`//m:Program[@dataItemId="DMGprogram1"]`	STRING	Current program number
`//m:Block[@dataItemId="DMGblock1"]`	STRING	Current program name
`node-name://m:*[@dataItemId="DMGmotion1"]`	STRING	Alarm status

TIP

The dataItemId attribute in the XPath corresponds to the id value defined in Devices.xml. Refer to your Devices.xml file to determine the exact data item IDs available for your machine.

Data Monitoring

After configuring the tags, you can click Monitoring -> Data Monitoring to view the real-time data collected from the DMG MORI machines.

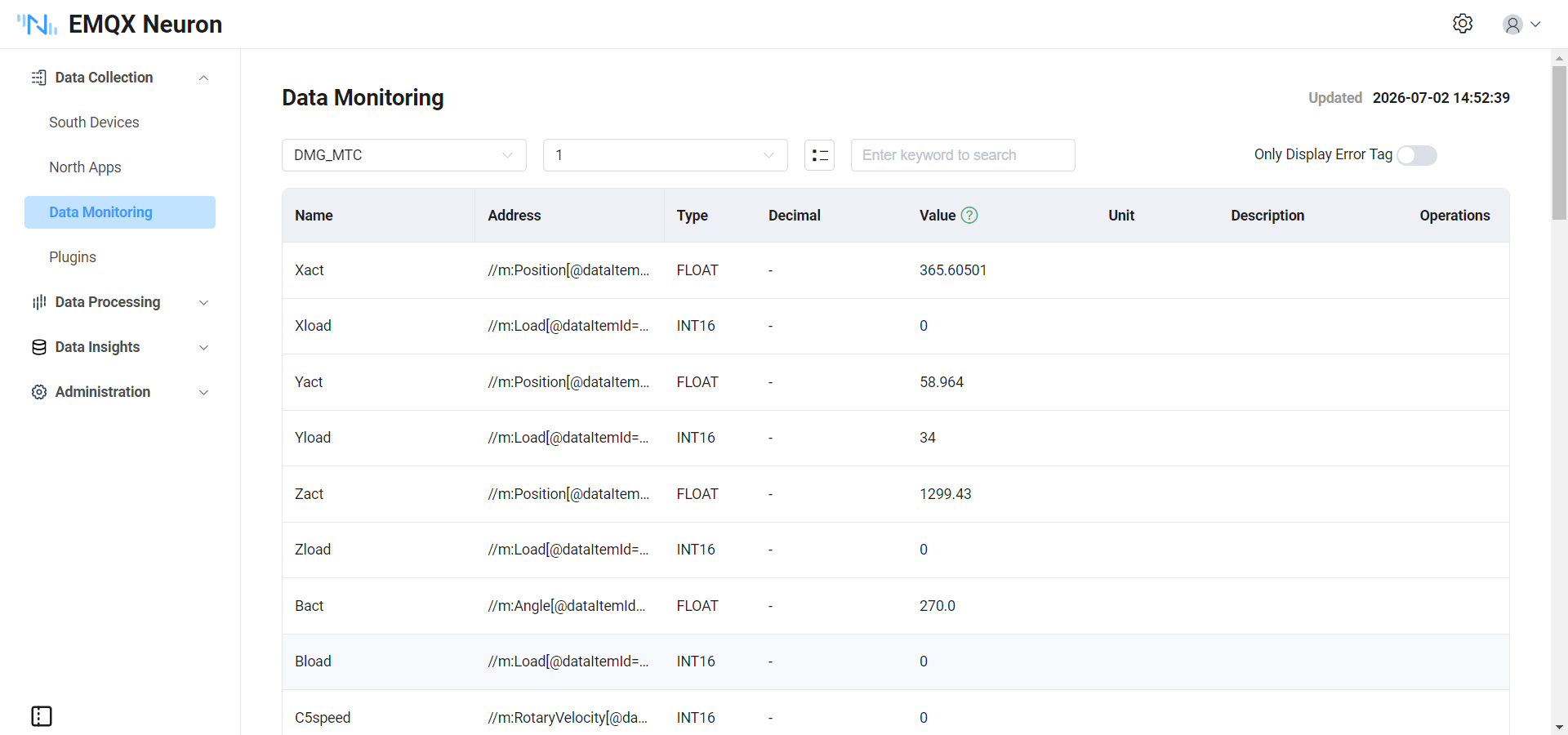

DMG MORI data monitoring

For more details, see Data Monitoring.

Appendix: Devices.xml

xml

<?xml version="1.0" encoding="utf-8"?>
<MTConnectDevices xmlns:mt="urn:mtconnect.org:MTConnectDevices:2.7"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xmlns="urn:mtconnect.org:MTConnectDevices:2.7"
  xsi:schemaLocation="urn:mtconnect.org:MTConnectDevices:2.7 ./schemas/MTConnectDevices_2.7.xsd">
  <Header deviceModelChangeTime="2022-06-17T16:33:21.188094Z" creationTime="2013-04-02T03:40:04Z"
    assetBufferSize="1024" sender="localhost" assetCount="0" version="2.0" instanceId="1"
    bufferSize="131072"/>
  <Devices>
		<Device id="d2" uuid="DMG_MORI" name="DMG_MORI">
			<Description manufacturer="DMG MORI" serialNumber="NHC50171001">DMG MORI with MAPPS controller</Description>
			<Configuration>
				<CoordinateSystems>
					<CoordinateSystem id="dm_base" type="BASE">
						<Origin>0 0 0</Origin>
					</CoordinateSystem>
					<CoordinateSystem id="dm_machine" type="MACHINE" parentIdRef="dm_base">
						<Transformation>
							<Translation>0 0 0</Translation>
							<Rotation>0 0 0</Rotation>
						</Transformation>
					</CoordinateSystem>
					<CoordinateSystem id="dm_work" type="OBJECT" parentIdRef="dm_machine">
						<Transformation>
							<Translation>0 0 0</Translation>
							<Rotation>0 0 0</Rotation>
						</Transformation>
					</CoordinateSystem>
				</CoordinateSystems>
			</Configuration>
			<DataItems>
				<DataItem category="EVENT" id="DMGavail" name="avail" type="AVAILABILITY"/>
				<DataItem category="EVENT" id="DMGestop" name="estop" type="EMERGENCY_STOP"/>
				<DataItem category="EVENT" id="DMGcoolant" name="coolant" type="x:COOLANT"/>
				<DataItem category="EVENT" id="DMGcutting1" name="cutting1" type="x:CUTTING_STATUS"/>
			</DataItems>
			<Components>
				<Axes id="dm_axes" name="axes">
					<Components>
						<Linear id="dm_x" name="X">
							<DataItems>
								<DataItem type="POSITION" subType="ACTUAL" category="SAMPLE" id="DMGXact" name="Xact" units="MILLIMETER" coordinateSystemIdRef="dm_machine"/>
								<DataItem type="LOAD" category="SAMPLE" id="DMGXload" name="Xload" units="PERCENT"/>
							</DataItems>
						</Linear>
						<Linear id="dm_y" name="Y">
							<DataItems>
								<DataItem type="POSITION" subType="ACTUAL" category="SAMPLE" id="DMGYact" name="Yact" units="MILLIMETER" coordinateSystemIdRef="dm_machine"/>
								<DataItem type="LOAD" category="SAMPLE" id="DMGYload" name="Yload" units="PERCENT"/>
							</DataItems>
						</Linear>
						<Linear id="dm_z" name="Z">
							<DataItems>
								<DataItem type="POSITION" subType="ACTUAL" category="SAMPLE" id="DMGZact" name="Zact" units="MILLIMETER" coordinateSystemIdRef="dm_machine"/>
								<DataItem type="LOAD" category="SAMPLE" id="DMGZload" name="Zload" units="PERCENT"/>
							</DataItems>
						</Linear>
						<Rotary id="dm_b" name="B">
							<DataItems>
								<DataItem type="ANGLE" subType="ACTUAL" category="SAMPLE" id="DMGBact" name="Bact" units="DEGREE" coordinateSystemIdRef="dm_machine"/>
								<DataItem type="LOAD" category="SAMPLE" id="DMGBload" name="Bload" units="PERCENT"/>
							</DataItems>
						</Rotary>
						<Rotary id="dm_c5" name="C5">
							<DataItems>
								<DataItem type="ROTARY_VELOCITY" subType="ACTUAL" category="SAMPLE" id="DMGC5speed" name="C5speed" units="REVOLUTION/MINUTE"/>
								<DataItem type="LOAD" category="SAMPLE" id="DMGC5load" name="C5load" units="PERCENT"/>
								<DataItem type="ROTARY_MODE" category="EVENT" id="DMGC5mode" name="C5mode"/>
								<DataItem type="ROTARY_VELOCITY_OVERRIDE" category="EVENT" id="DMGspindleoverride5" name="spindleoverride5" units="PERCENT"/>
								<DataItem type="x:SPINDLE_ROTATING" category="EVENT" id="DMGspindlerotating5" name="spindlerotating5"/>
							</DataItems>
						</Rotary>
						<Rotary id="dm_c6" name="C6">
							<DataItems>
								<DataItem type="ROTARY_VELOCITY" subType="ACTUAL" category="SAMPLE" id="DMGC6speed" name="C6speed" units="REVOLUTION/MINUTE"/>
								<DataItem type="LOAD" category="SAMPLE" id="DMGC6load" name="C6load" units="PERCENT"/>
								<DataItem type="ROTARY_MODE" category="EVENT" id="DMGC6mode" name="C6mode"/>
								<DataItem type="x:SPINDLE_ROTATING" category="EVENT" id="DMGspindlerotating6" name="spindlerotating6"/>
							</DataItems>
						</Rotary>
						<Rotary id="dm_c7" name="C7">
							<DataItems>
								<DataItem type="LOAD" category="SAMPLE" id="DMGC7load" name="C7load" units="PERCENT"/>
							</DataItems>
						</Rotary>
						<Rotary id="dm_c8" name="C8">
							<DataItems>
								<DataItem type="ROTARY_VELOCITY" subType="ACTUAL" category="SAMPLE" id="DMGC8speed" name="C8speed" units="REVOLUTION/MINUTE"/>
								<DataItem type="ROTARY_MODE" category="EVENT" id="DMGC8mode" name="C8mode"/>
								<DataItem type="ROTARY_VELOCITY_OVERRIDE" category="EVENT" id="DMGspindleoverride8" name="spindleoverride8" units="PERCENT"/>
								<DataItem type="x:SPINDLE_ROTATING" category="EVENT" id="DMGspindlerotating8" name="spindlerotating8"/>
							</DataItems>
						</Rotary>
						<Rotary id="dm_c9" name="C9">
							<DataItems>
								<DataItem type="ROTARY_VELOCITY" subType="ACTUAL" category="SAMPLE" id="DMGC9speed" name="C9speed" units="REVOLUTION/MINUTE"/>
								<DataItem type="ROTARY_MODE" category="EVENT" id="DMGC9mode" name="C9mode"/>
								<DataItem type="x:SPINDLE_ROTATING" category="EVENT" id="DMGspindlerotating9" name="spindlerotating9"/>
							</DataItems>
						</Rotary>
					</Components>
				</Axes>
				<Controller id="dm_ctrl" name="controller">
					<DataItems>
						<DataItem type="CONTROLLER_MODE" category="EVENT" id="DMGmode1" name="mode1"/>
						<DataItem type="x:OPERATION_MODE" category="EVENT" id="DMGoperationmode1" name="operationmode1"/>
						<DataItem type="EXECUTION" category="EVENT" id="DMGexecution1" name="execution1"/>
						<DataItem type="PROGRAM" category="EVENT" id="DMGprogram1" name="program1"/>
						<DataItem type="PROGRAM" subType="MAIN" category="EVENT" id="DMGmainprogram1" name="mainprogram1"/>
						<DataItem type="PART_COUNT" category="EVENT" id="DMGpart_count1" name="part_count1"/>
						<DataItem type="TOOL_NUMBER" category="EVENT" id="DMGtoolnumber1" name="toolnumber1"/>
						<DataItem type="x:RESET" category="EVENT" id="DMGreset1" name="reset1"/>
						<DataItem type="CONTROLLER_MODE_OVERRIDE" subType="OPTIONAL_STOP" category="EVENT" id="DMGoptionalstop1" name="optionalstop1"/>
						<DataItem type="CONTROLLER_MODE_OVERRIDE" subType="DRY_RUN" category="EVENT" id="DMGdryrun1" name="dryrun1"/>
						<DataItem type="x:BLOCK_DELETE" category="EVENT" id="DMGblockdelete1" name="blockdelete1"/>
						<DataItem type="PATH_FEEDRATE_OVERRIDE" subType="JOG" category="EVENT" id="DMGjogoverride1" name="jogoverride1" units="PERCENT"/>
						<DataItem type="PATH_FEEDRATE_OVERRIDE" subType="RAPID" category="EVENT" id="DMGrapidoverride1" name="rapidoverride1" units="PERCENT"/>
						<DataItem type="LOGIC_PROGRAM" category="CONDITION" id="DMGlogic1" name="logic1"/>
						<DataItem type="MOTION_PROGRAM" category="CONDITION" id="DMGmotion1" name="motion1"/>
						<DataItem type="LOGIC_PROGRAM" category="CONDITION" id="DMGlogic2" name="logic2"/>
						<DataItem type="MOTION_PROGRAM" category="CONDITION" id="DMGmotion2" name="motion2"/>
						<DataItem type="LOGIC_PROGRAM" category="CONDITION" id="DMGlogic3" name="logic3"/>
						<DataItem type="MOTION_PROGRAM" category="CONDITION" id="DMGmotion3" name="motion3"/>
						<DataItem type="LOGIC_PROGRAM" category="CONDITION" id="DMGlogic4" name="logic4"/>
						<DataItem type="MOTION_PROGRAM" category="CONDITION" id="DMGmotion4" name="motion4"/>
					</DataItems>
					<Components>
						<Path id="dm_path1" name="path">
							<DataItems>
								<DataItem type="PATH_FEEDRATE" subType="ACTUAL" category="SAMPLE" id="DMGpath_feedrate1" name="path_feedrate1" units="MILLIMETER/SECOND"/>
								<DataItem type="BLOCK" category="EVENT" id="DMGblock1" name="block1"/>
								<DataItem type="LINE_LABEL" category="EVENT" id="DMGline1" name="line1"/>
							</DataItems>
						</Path>
					</Components>
				</Controller>
			</Components>
		</Device>
		<Device id="d3" uuid="DMG_MORI1" name="DMG_MORI1">
			<Description manufacturer="DMG MORI" serialNumber="NHC50171001">DMG MORI with MAPPS controller</Description>
			<Configuration>
				<CoordinateSystems>
					<CoordinateSystem id="dm_base_1" type="BASE">
						<Origin>0 0 0</Origin>
					</CoordinateSystem>
					<CoordinateSystem id="dm_machine_1" type="MACHINE" parentIdRef="dm_base_1">
						<Transformation>
							<Translation>0 0 0</Translation>
							<Rotation>0 0 0</Rotation>
						</Transformation>
					</CoordinateSystem>
					<CoordinateSystem id="dm_work_1" type="OBJECT" parentIdRef="dm_machine_1">
						<Transformation>
							<Translation>0 0 0</Translation>
							<Rotation>0 0 0</Rotation>
						</Transformation>
					</CoordinateSystem>
				</CoordinateSystems>
			</Configuration>
			<DataItems>
				<DataItem category="EVENT" id="DMGavail_1" name="avail" type="AVAILABILITY"/>
				<DataItem category="EVENT" id="DMGestop_1" name="estop" type="EMERGENCY_STOP"/>
				<DataItem category="EVENT" id="DMGcoolant_1" name="coolant" type="x:COOLANT"/>
				<DataItem category="EVENT" id="DMGcutting1_1" name="cutting1" type="x:CUTTING_STATUS"/>
			</DataItems>
			<Components>
				<Axes id="dm_axes_1" name="axes">
					<Components>
						<Linear id="dm_x_1" name="X">
							<DataItems>
								<DataItem type="POSITION" subType="ACTUAL" category="SAMPLE" id="DMGXact_1" name="Xact" units="MILLIMETER" coordinateSystemIdRef="dm_machine_1"/>
								<DataItem type="LOAD" category="SAMPLE" id="DMGXload_1" name="Xload" units="PERCENT"/>
							</DataItems>
						</Linear>
						<Linear id="dm_y_1" name="Y">
							<DataItems>
								<DataItem type="POSITION" subType="ACTUAL" category="SAMPLE" id="DMGYact_1" name="Yact" units="MILLIMETER" coordinateSystemIdRef="dm_machine_1"/>
								<DataItem type="LOAD" category="SAMPLE" id="DMGYload_1" name="Yload" units="PERCENT"/>
							</DataItems>
						</Linear>
						<Linear id="dm_z_1" name="Z">
							<DataItems>
								<DataItem type="POSITION" subType="ACTUAL" category="SAMPLE" id="DMGZact_1" name="Zact" units="MILLIMETER" coordinateSystemIdRef="dm_machine_1"/>
								<DataItem type="LOAD" category="SAMPLE" id="DMGZload_1" name="Zload" units="PERCENT"/>
							</DataItems>
						</Linear>
						<Rotary id="dm_b_1" name="B">
							<DataItems>
								<DataItem type="ANGLE" subType="ACTUAL" category="SAMPLE" id="DMGBact_1" name="Bact" units="DEGREE" coordinateSystemIdRef="dm_machine_1"/>
								<DataItem type="LOAD" category="SAMPLE" id="DMGBload_1" name="Bload" units="PERCENT"/>
							</DataItems>
						</Rotary>
						<Rotary id="dm_c5_1" name="C5">
							<DataItems>
								<DataItem type="ROTARY_VELOCITY" subType="ACTUAL" category="SAMPLE" id="DMGC5speed_1" name="C5speed" units="REVOLUTION/MINUTE"/>
								<DataItem type="LOAD" category="SAMPLE" id="DMGC5load_1" name="C5load" units="PERCENT"/>
								<DataItem type="ROTARY_MODE" category="EVENT" id="DMGC5mode_1" name="C5mode"/>
								<DataItem type="ROTARY_VELOCITY_OVERRIDE" category="EVENT" id="DMGspindleoverride5_1" name="spindleoverride5" units="PERCENT"/>
								<DataItem type="x:SPINDLE_ROTATING" category="EVENT" id="DMGspindlerotating5_1" name="spindlerotating5"/>
							</DataItems>
						</Rotary>
						<Rotary id="dm_c6_1" name="C6">
							<DataItems>
								<DataItem type="ROTARY_VELOCITY" subType="ACTUAL" category="SAMPLE" id="DMGC6speed_1" name="C6speed" units="REVOLUTION/MINUTE"/>
								<DataItem type="LOAD" category="SAMPLE" id="DMGC6load_1" name="C6load" units="PERCENT"/>
								<DataItem type="ROTARY_MODE" category="EVENT" id="DMGC6mode_1" name="C6mode"/>
								<DataItem type="x:SPINDLE_ROTATING" category="EVENT" id="DMGspindlerotating6_1" name="spindlerotating6"/>
							</DataItems>
						</Rotary>
						<Rotary id="dm_c7_1" name="C7">
							<DataItems>
								<DataItem type="LOAD" category="SAMPLE" id="DMGC7load_1" name="C7load" units="PERCENT"/>
							</DataItems>
						</Rotary>
						<Rotary id="dm_c8_1" name="C8">
							<DataItems>
								<DataItem type="ROTARY_VELOCITY" subType="ACTUAL" category="SAMPLE" id="DMGC8speed_1" name="C8speed" units="REVOLUTION/MINUTE"/>
								<DataItem type="ROTARY_MODE" category="EVENT" id="DMGC8mode_1" name="C8mode"/>
								<DataItem type="ROTARY_VELOCITY_OVERRIDE" category="EVENT" id="DMGspindleoverride8_1" name="spindleoverride8" units="PERCENT"/>
								<DataItem type="x:SPINDLE_ROTATING" category="EVENT" id="DMGspindlerotating8_1" name="spindlerotating8"/>
							</DataItems>
						</Rotary>
						<Rotary id="dm_c9_1" name="C9">
							<DataItems>
								<DataItem type="ROTARY_VELOCITY" subType="ACTUAL" category="SAMPLE" id="DMGC9speed_1" name="C9speed" units="REVOLUTION/MINUTE"/>
								<DataItem type="ROTARY_MODE" category="EVENT" id="DMGC9mode_1" name="C9mode"/>
								<DataItem type="x:SPINDLE_ROTATING" category="EVENT" id="DMGspindlerotating9_1" name="spindlerotating9"/>
							</DataItems>
						</Rotary>
					</Components>
				</Axes>
				<Controller id="dm_ctrl_1" name="controller">
					<DataItems>
						<DataItem type="CONTROLLER_MODE" category="EVENT" id="DMGmode1_1" name="mode1"/>
						<DataItem type="x:OPERATION_MODE" category="EVENT" id="DMGoperationmode1_1" name="operationmode1"/>
						<DataItem type="EXECUTION" category="EVENT" id="DMGexecution1_1" name="execution1"/>
						<DataItem type="PROGRAM" category="EVENT" id="DMGprogram1_1" name="program1"/>
						<DataItem type="PROGRAM" subType="MAIN" category="EVENT" id="DMGmainprogram1_1" name="mainprogram1"/>
						<DataItem type="PART_COUNT" category="EVENT" id="DMGpart_count1_1" name="part_count1"/>
						<DataItem type="TOOL_NUMBER" category="EVENT" id="DMGtoolnumber1_1" name="toolnumber1"/>
						<DataItem type="x:RESET" category="EVENT" id="DMGreset1_1" name="reset1"/>
						<DataItem type="CONTROLLER_MODE_OVERRIDE" subType="OPTIONAL_STOP" category="EVENT" id="DMGoptionalstop1_1" name="optionalstop1"/>
						<DataItem type="CONTROLLER_MODE_OVERRIDE" subType="DRY_RUN" category="EVENT" id="DMGdryrun1_1" name="dryrun1"/>
						<DataItem type="x:BLOCK_DELETE" category="EVENT" id="DMGblockdelete1_1" name="blockdelete1"/>
						<DataItem type="PATH_FEEDRATE_OVERRIDE" subType="JOG" category="EVENT" id="DMGjogoverride1_1" name="jogoverride1" units="PERCENT"/>
						<DataItem type="PATH_FEEDRATE_OVERRIDE" subType="RAPID" category="EVENT" id="DMGrapidoverride1_1" name="rapidoverride1" units="PERCENT"/>
						<DataItem type="LOGIC_PROGRAM" category="CONDITION" id="DMGlogic1_1" name="logic1"/>
						<DataItem type="MOTION_PROGRAM" category="CONDITION" id="DMGmotion1_1" name="motion1"/>
						<DataItem type="LOGIC_PROGRAM" category="CONDITION" id="DMGlogic2_1" name="logic2"/>
						<DataItem type="MOTION_PROGRAM" category="CONDITION" id="DMGmotion2_1" name="motion2"/>
						<DataItem type="LOGIC_PROGRAM" category="CONDITION" id="DMGlogic3_1" name="logic3"/>
						<DataItem type="MOTION_PROGRAM" category="CONDITION" id="DMGmotion3_1" name="motion3"/>
						<DataItem type="LOGIC_PROGRAM" category="CONDITION" id="DMGlogic4_1" name="logic4"/>
						<DataItem type="MOTION_PROGRAM" category="CONDITION" id="DMGmotion4_1" name="motion4"/>
					</DataItems>
					<Components>
						<Path id="dm_path1_1" name="path">
							<DataItems>
								<DataItem type="PATH_FEEDRATE" subType="ACTUAL" category="SAMPLE" id="DMGpath_feedrate1_1" name="path_feedrate1" units="MILLIMETER/SECOND"/>
								<DataItem type="BLOCK" category="EVENT" id="DMGblock1_1" name="block1"/>
								<DataItem type="LINE_LABEL" category="EVENT" id="DMGline1_1" name="line1"/>
							</DataItems>
						</Path>
					</Components>
				</Controller>
			</Components>
		</Device>
  </Devices>
</MTConnectDevices>

Connect to DMG MORI via MTConnect ​

Architecture Overview ​

Deploy MTConnect Agent ​

Configure agent.cfg ​

Configure Devices.xml ​

Configure Neuron ​

Add Device ​

Configure Data Groups and Tags ​

How to Write an Address ​

Address Format ​

Data Monitoring ​

Appendix: Devices.xml ​
