Kafka 目标（Sink）

This plugin sends the analysis results into Kafka.

Property

Property Name	Options	Description
Broker List	no	kafka broker list
Topic	no	kafka topic
Sasl auth type	no	support none，plain，scram
Sasl username	yes	-
Sasl password	yes	-

Example

Select data with a temperature greater than 50 degrees from the demo_stream data source and forward it to Kafka.

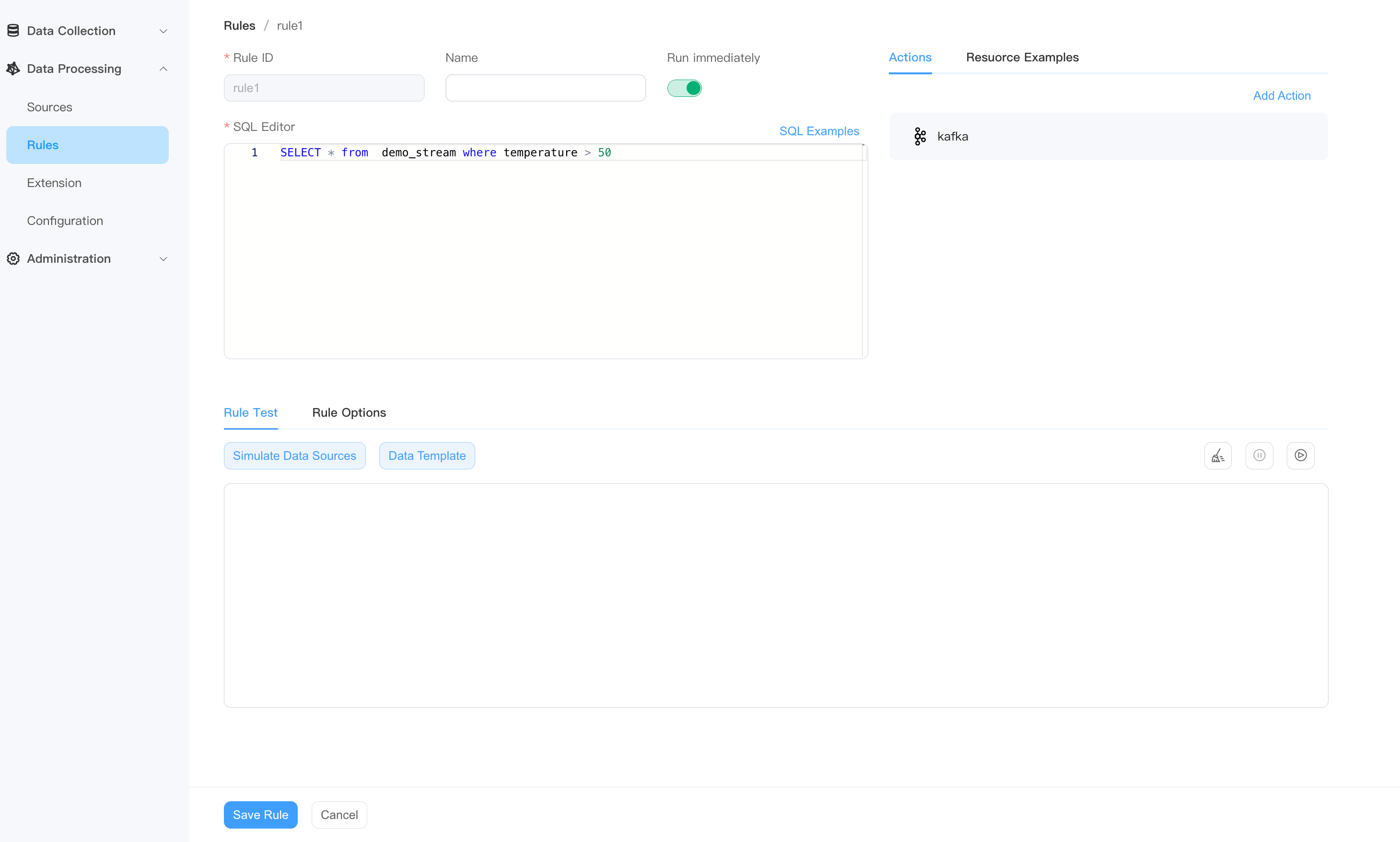

• SQL configuration

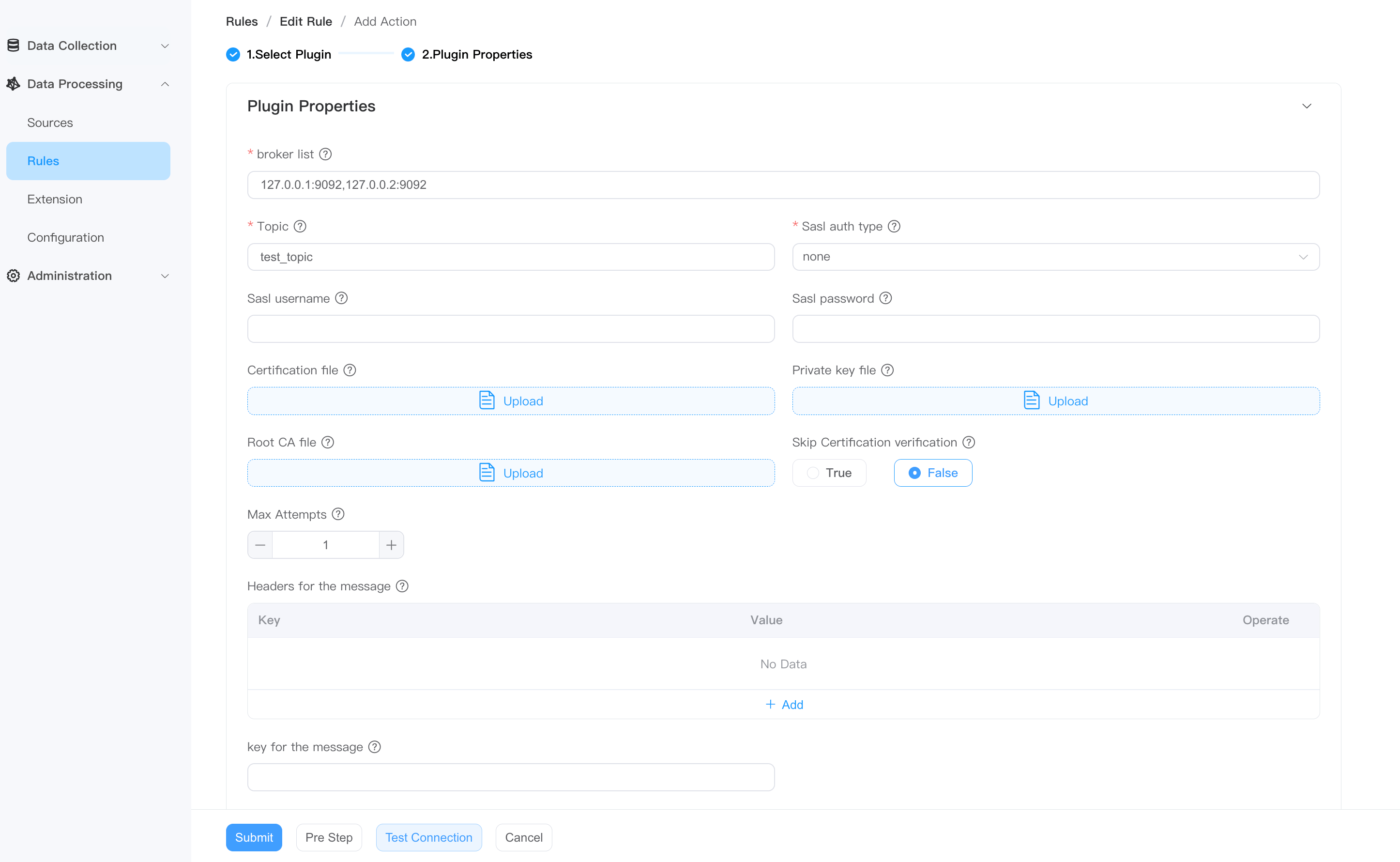

• kafka sink configuration

Precautions

If NeuronEX and kafka are deployed in the same container network through docker compose, the brokers address can be configured in NeuronEX through the kafka host name.

But kafka needs special attention. KAFKA_CFG_ADVERTISED_LISTENERS needs to be configured as the host IP address, as shown below

    zookeeper:
     image: docker.io/bitnami/zookeeper:3.8
     hostname: zookeeper
     container_name: zookeeper
     ports:
      - "2181:2181"
     volumes:
      - "zookeeper_data:/bitnami"
     environment:
       - ALLOW_ANONYMOUS_LOGIN=yes
    kafka:
     image: docker.io/bitnami/kafka:3.4
     hostname: kafka
     container_name: kafka
     ports:
      - "9092:9092"
     volumes:
      - "kafka_data:/bitnami"
     environment:
      - KAFKA_CFG_ZOOKEEPER_CONNECT=zookeeper:2181
      - ALLOW_PLAINTEXT_LISTENER=yes
      - KAFKA_CFG_LISTENERS=PLAINTEXT://:9092
      - KAFKA_CFG_ADVERTISED_LISTENERS=PLAINTEXT://122.9.166.75:9092
     depends_on:
      - zookeeper
