Licensing
EMQX Neuron (formerly NeuronEX) works as soon as it is installed: it ships with a permanent free license covering 30 data tags. You only need a trial or commercial license once you exceed that quota or want the full data processing capability.
Quota comparison
Item | Free (built in) | Trial | Commercial |
|---|---|---|---|
| Data tags | 30 | 1,000 | Per purchase |
| Validity | Permanent | 15 days | Per subscription term |
| Data processing | Testing only — each rule stops automatically after 60 minutes | Full | Full |
| CNC drivers | Not included | Included | Included |
| Hardware binding | Not applicable | Bound to a hardware ID by default | Bound or unbound |
| How to get it | Nothing to do | Apply on the website; at most two per email address | Contact EMQ sales |
The software itself can be downloaded from the EMQ website without a license.
What the free quota covers
The built-in license covers most standard southbound drivers and northbound applications — Modbus, OPC UA, Siemens and Mitsubishi PLCs, EtherNet/IP, IEC 60870, IEC 61850, BACnet, DL/T645, MQTT, Sparkplug B, and more — all usable within the 30-tag limit at no cost.
Note
CNC drivers such as Fanuc Focas Ethernet and Mitsubishi CNC are not part of the permanent free quota. Contact us if you need them.
Drivers and applications are licensed individually. To see exactly what your instance is entitled to, check the Enabled Drivers and Applications field on Administration → License. For the full set of supported protocols, see Southbound Drivers.
Applying for a trial license
Apply on the EMQ website. A trial unlocks every driver, application, and the full data processing engine for 15 days, within a limit of 1,000 data tags. You can reapply after it expires, up to two trial licenses per email address.
TIP
A trial license obtained from the website must be bound to a hardware ID. EMQX Neuron installed in Docker or another container has an empty hardware ID and cannot be bound — in that case, contact us for a license without hardware binding.
Installing a license
A license can be installed more than once; a new one replaces the old.
Method | When to use it |
|---|---|
| Upload a license file | Single deployment — the common case |
| ECP floating license | Several instances, with ECP allocating tags centrally |
Upload a license file
Contact us to request a license. Then go to Administration → License and click Upload License. Once the upload succeeds, the license details appear on the same page.
ECP floating license
Suited to EMQX Neuron instances managed by ECP. When several instances are deployed, ECP manages the total tag count and allocates it flexibly, and also provides fast deployment, remote operation, and central management. See ECP.

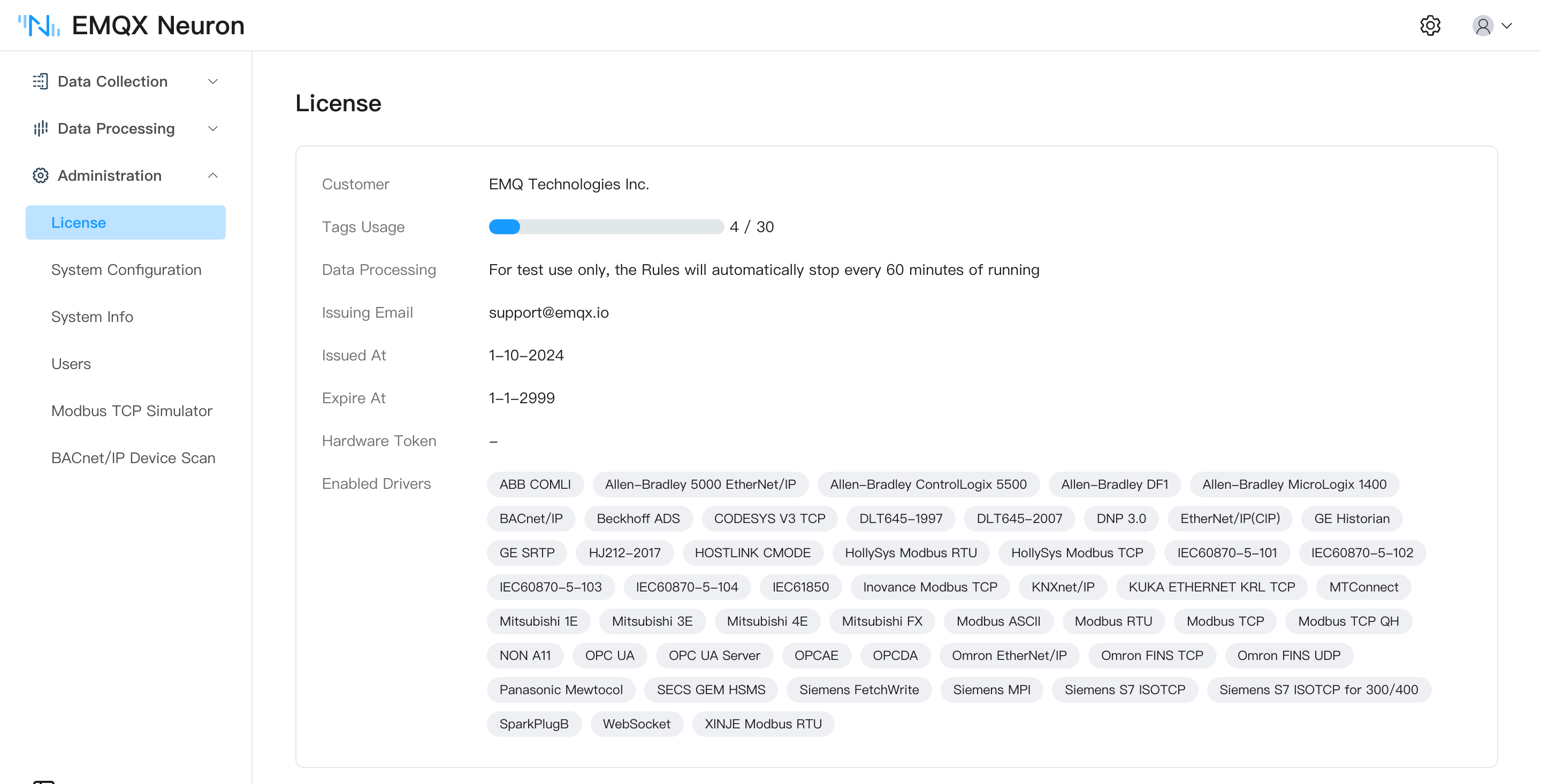

Viewing license information
However the license was installed, the details are on Administration → License:
Field | Description |
|---|---|
| Issued At | When the license takes effect |
| Expire At | The last day the license is valid |
| Tags Usage | The maximum number of tags allowed, and how many are in use |
| Enabled Drivers and Applications | The drivers and applications this license authorizes. Each commercial module is licensed independently |
| Hardware Token | The hardware ID of the running instance — see below |
Hardware token
Licenses come in hardware-bound and unbound forms. A bound license only takes effect on an instance whose hardware token matches; you can read the token on the license page.
TIP
EMQX Neuron installed in Docker or another container has an empty hardware token and cannot use a hardware-bound license.
Expiry and renewal
Once a license expires the system stops functioning normally, so replace it before the expiry date. Renewal works the same as the first install — upload the new license file and it replaces the old one; there is no need to remove the old license first.
Resetting to the free license
On Administration → License, click Reset License to restore the built-in permanent 30-tag free license.
