Quick Start: Experience Namespaces

This section guides you through using the MQTTX client to connect to EMQX and quickly experience the core capabilities of the namespace feature: tenant identification, client isolation, and topic isolation.

Enable the tns Attribute for Namespace Identification

1. First, configure a client attribute in base.hocon to extract the namespace (tenant identifier) from the username:

   mqtt.client_attrs_init = [{expression = "nth(1, tokens(username, '-'))", set_as_attr = tns}]

   Example: If a client connects with the username tenantA-user1, EMQX will extract tenantA as the namespace (tns).

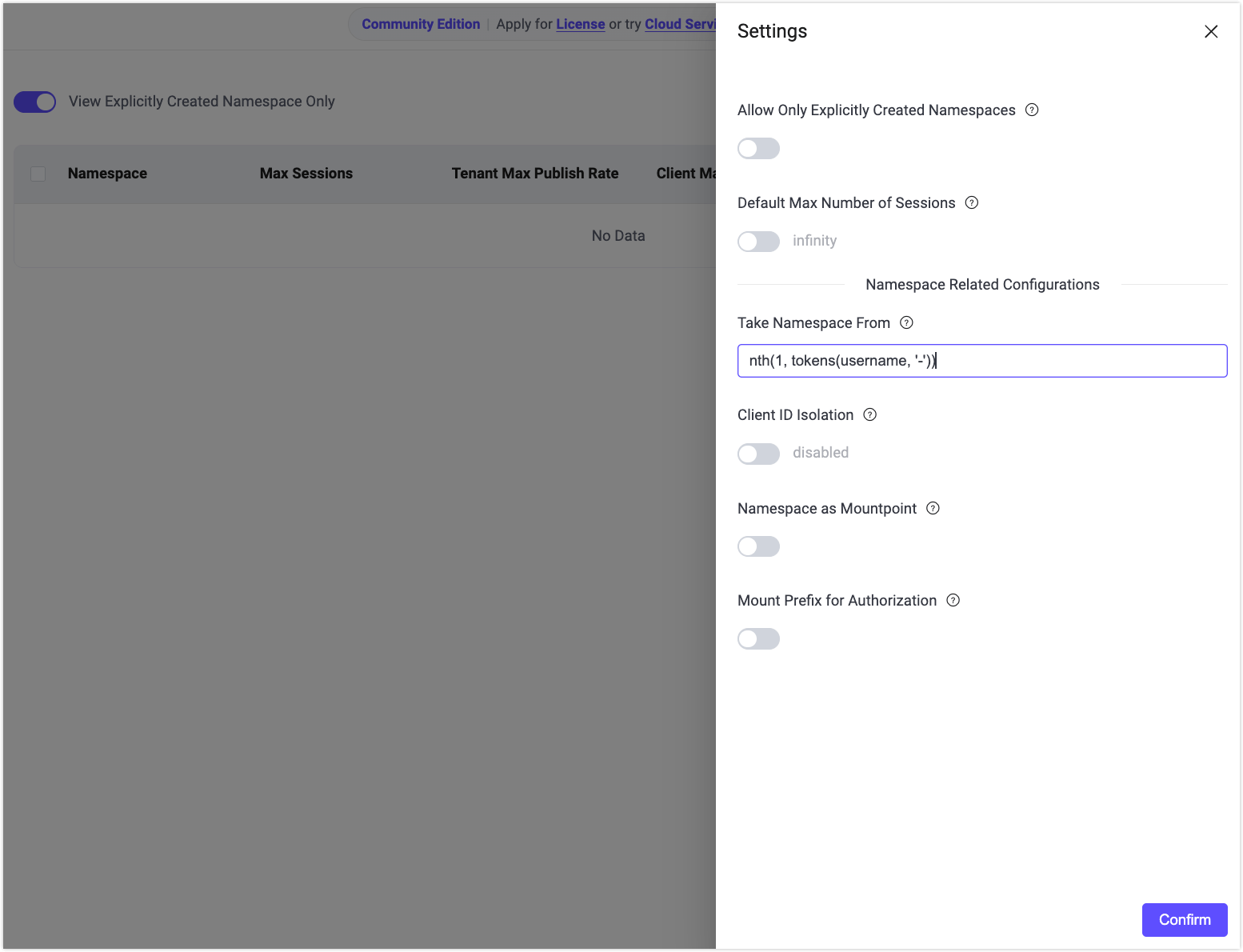

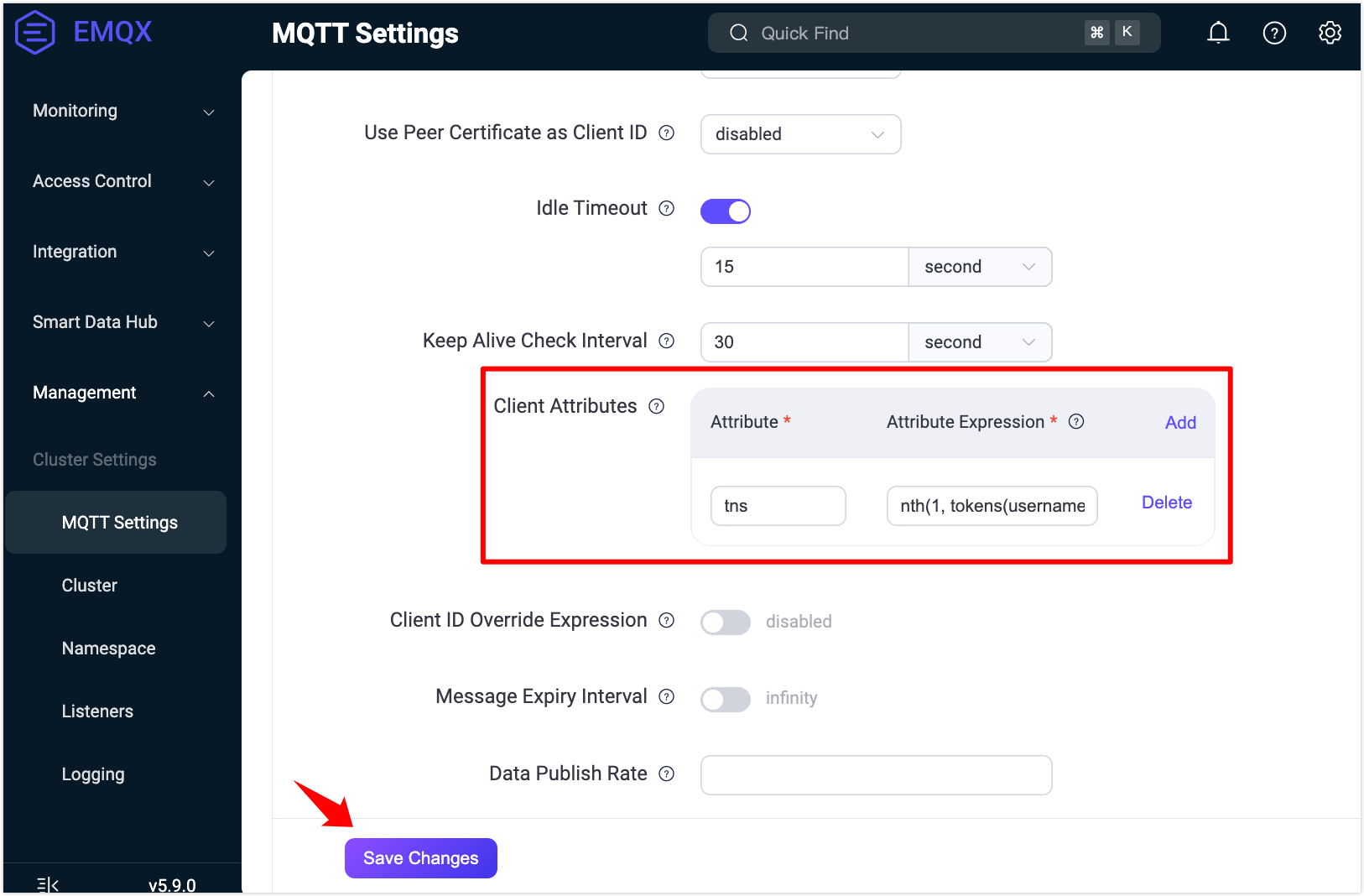

   Alternatively, you can configure this in the Dashboard:



2. Create an MQTT client connection using MQTTX, simulating tenant tenantA, and set the username to tenantA-user1. Connect the client to EMQX.

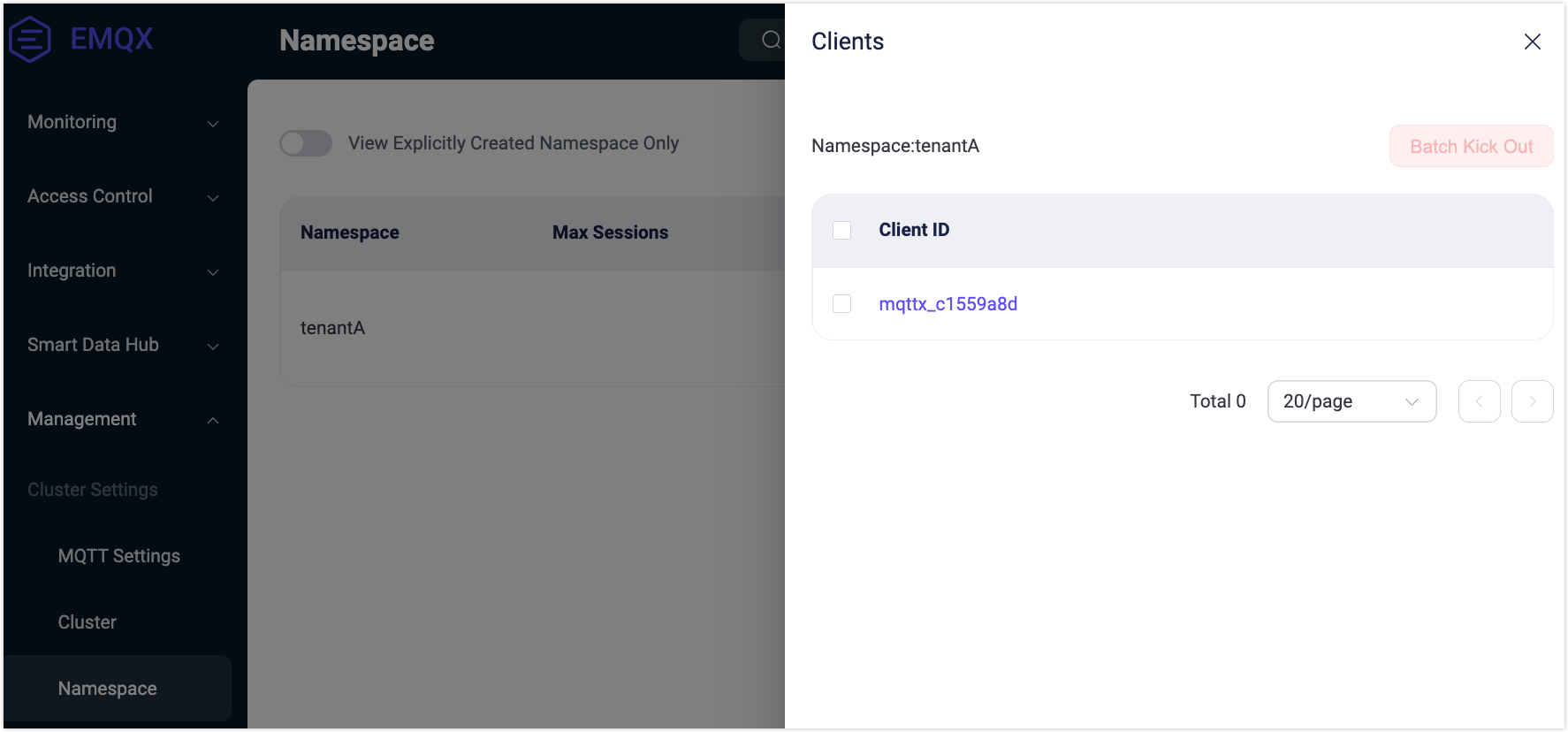

3. Go to the Namespace page in the Dashboard and disable the View Explicitly Created Namespace Only toggle. You should see the automatically created namespace tenantA.

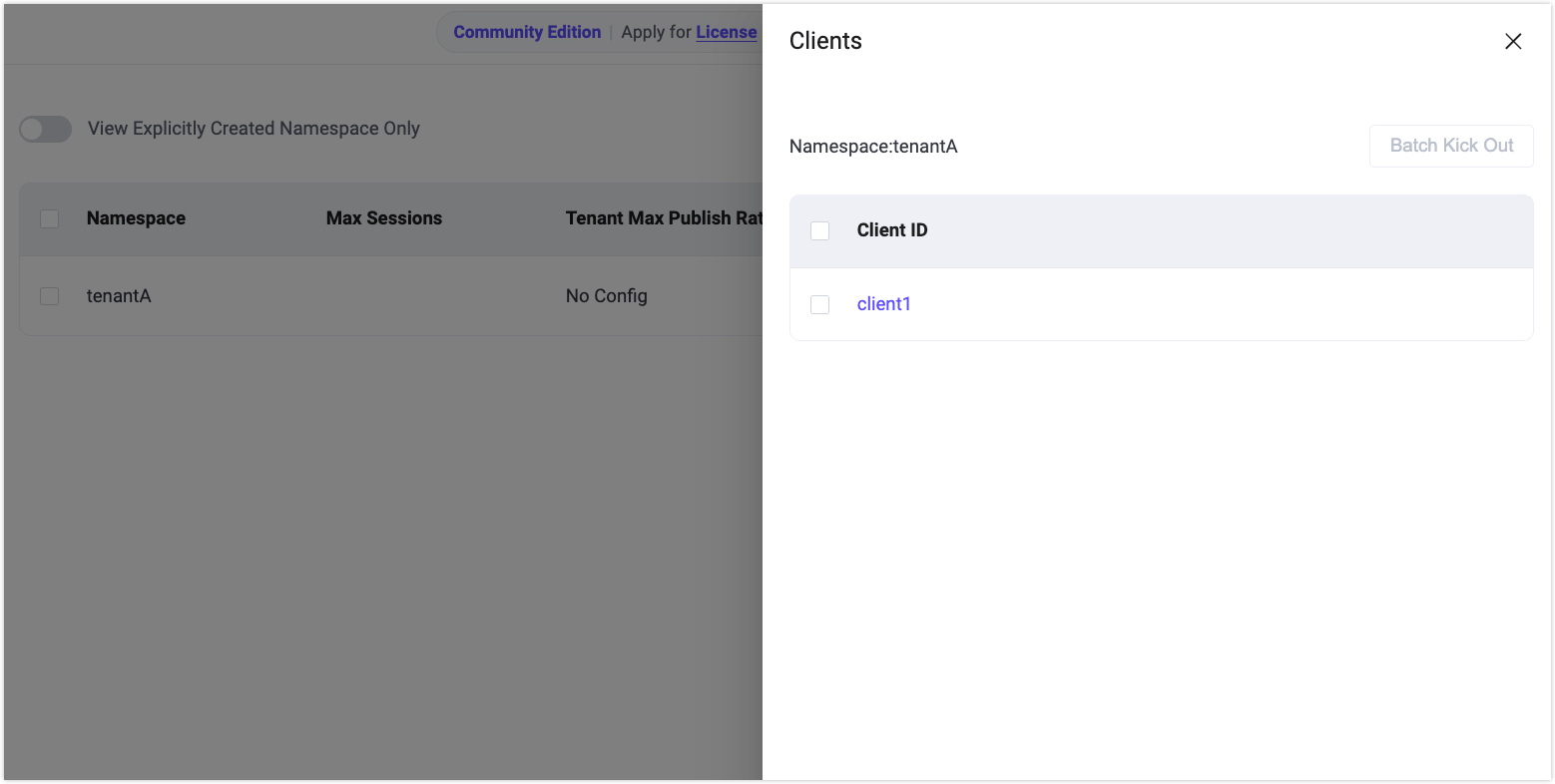

   Click Clients in the Actions column to view the client connected to this namespace.



Configure and Verify Namespace Isolation

1. To isolate client IDs and topics between namespaces, add the following configuration to base.hocon:

   mqtt.clientid_override = "concat([client_attrs.tns, '-', clientid])"
   listener.tcp.default.mountpoint = "${client_attrs.tns}/"

   This configuration will:

   • Automatically prepend the tenant prefix to the client ID to avoid conflicts.
   • Automatically prepend the namespace prefix to topic names for topic-level isolation between tenants.

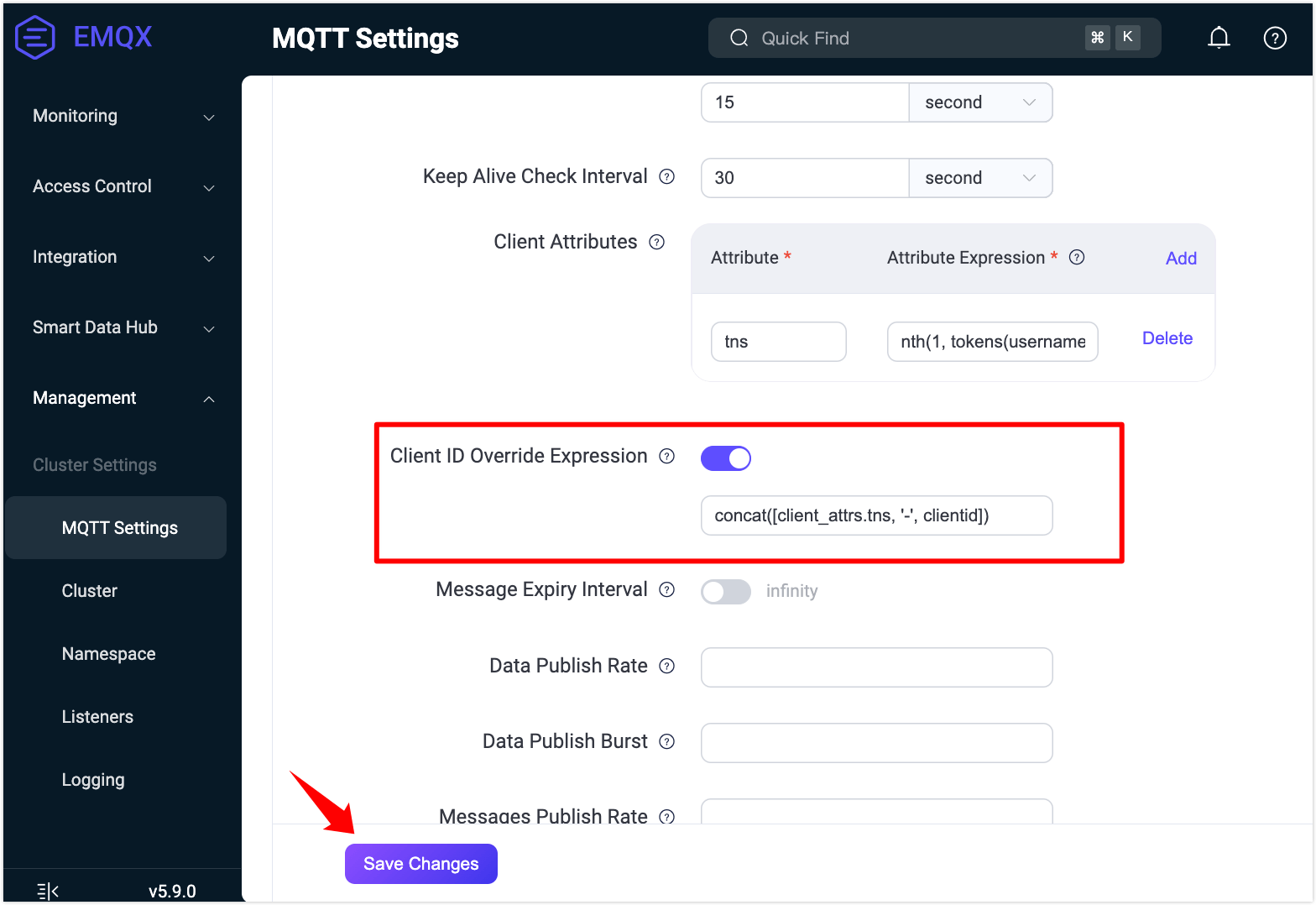

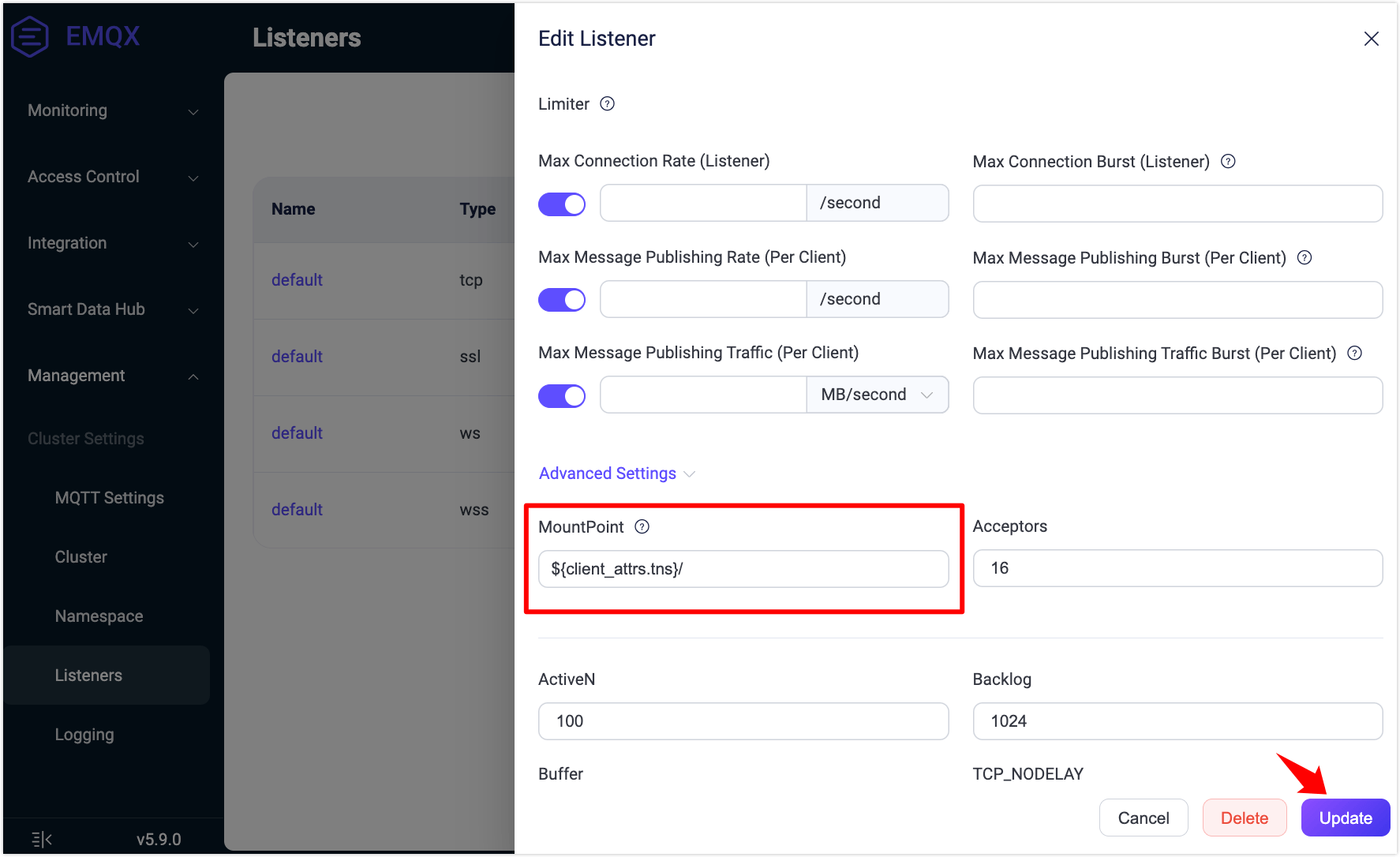

   You can also set this up in the Dashboard:



2. Use MQTTX to create two MQTT client connections to simulate two tenants: tenantA and tenantB.

   Client A (Tenant: tenantA):

   Parameter	Value
   Client ID	client1
   Username	tenantA-user1
   Subscribe	test/topic

   Client B (Tenant: tenantB):

   Parameter	Value
   Client ID	client1
   Username	tenantB-user2
   Publish	test/topic

3. Use Client B to publish a message. Verify the result in MQTTX and the EMQX Dashboard:

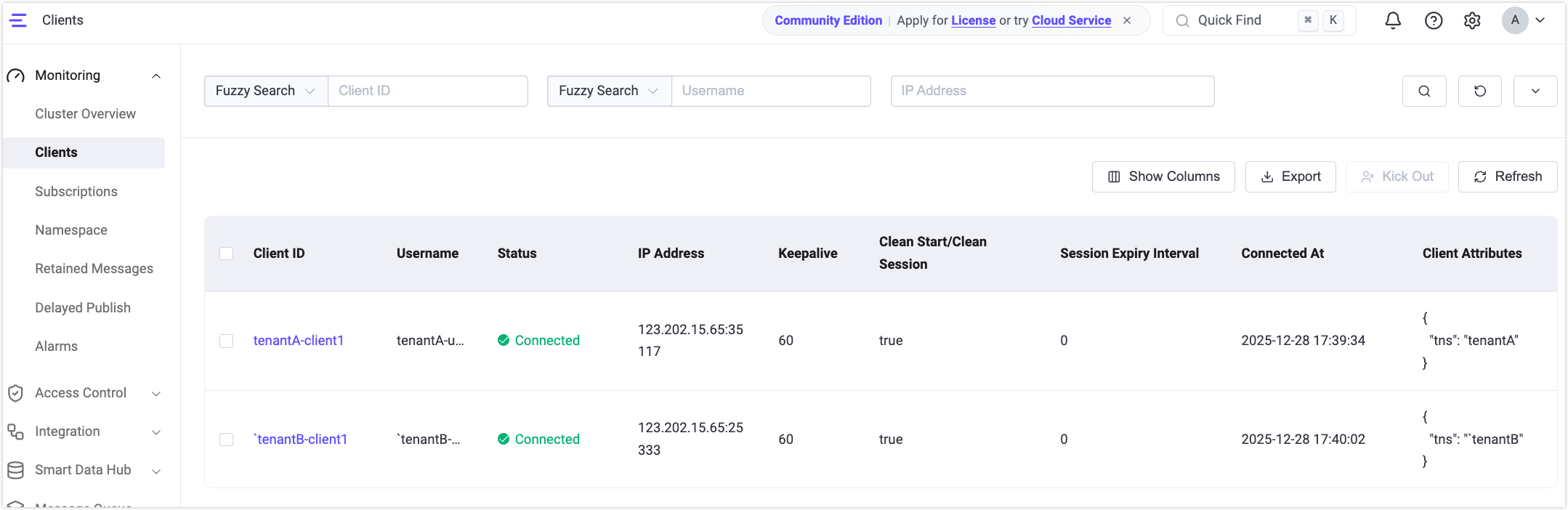

   • Although both clients use the same client ID (client1), due to the prefix rule, they connect as tenantA-client1 and tenantB-client1, avoiding conflicts.
   • Even though both clients use the same topic (test/topic), Client A will not receive messages published by Client B because they are isolated by namespace.
   • In the Monitoring -> Clients page:

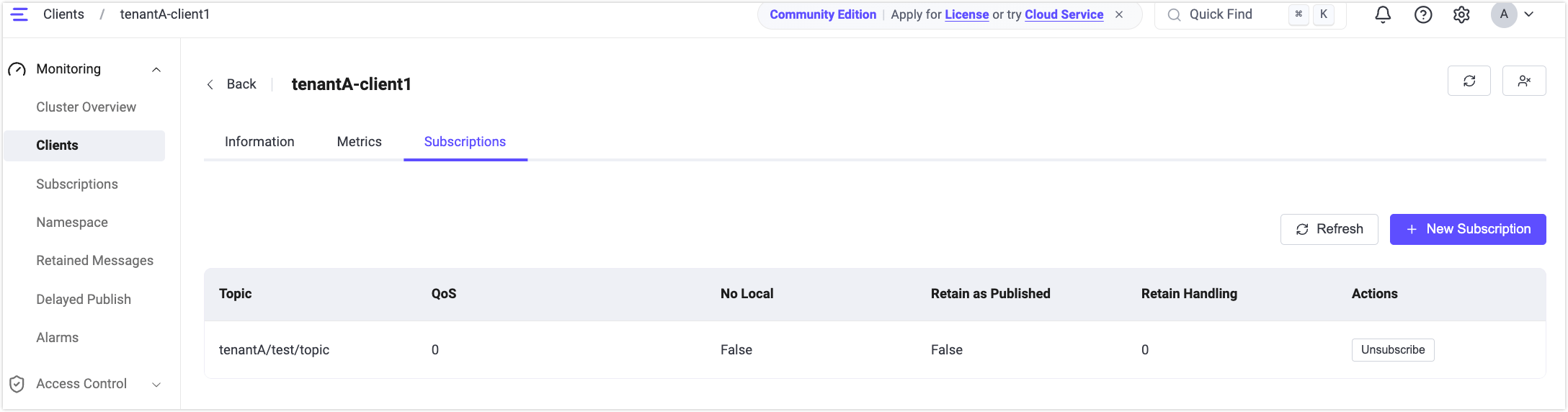

     • Client A's subscribed topic appears as tenantA/test/topic.
     • Client B's published topic appears as tenantB/test/topic.
