Ingest MQTT into Lindorm

Alibaba Cloud Lindorm is a cloud-native multi-model database featuring high throughput, high compression, and scalability. It supports time-series (TSDB), wide table, and vector data models, and is widely used in IoT telemetry, industrial monitoring, and connected vehicle scenarios.

While EMQX does not provide a dedicated Lindorm Sink, Lindorm offers MySQL-compatible interfaces. Users can utilize the MySQL Sink in EMQX's data integration to write device data into Lindorm. This page explains how to extract, transform, and store MQTT data using the EMQX data integration with Lindorm to build a stable and efficient IoT data pipeline.

Lindorm

Lindorm’s backend supports multiple data engines. Among them, the TSDB node is optimized for time-series data, offering high compression, high concurrency, and efficient querying. EMQX, as a MQTT messaging platform, leverages its Rule Engine and Data Integration features to efficiently write MQTT messages to Lindorm (typically to TSDB nodes) without complex coding. This enables structured collection, processing, and storage of device telemetry data.

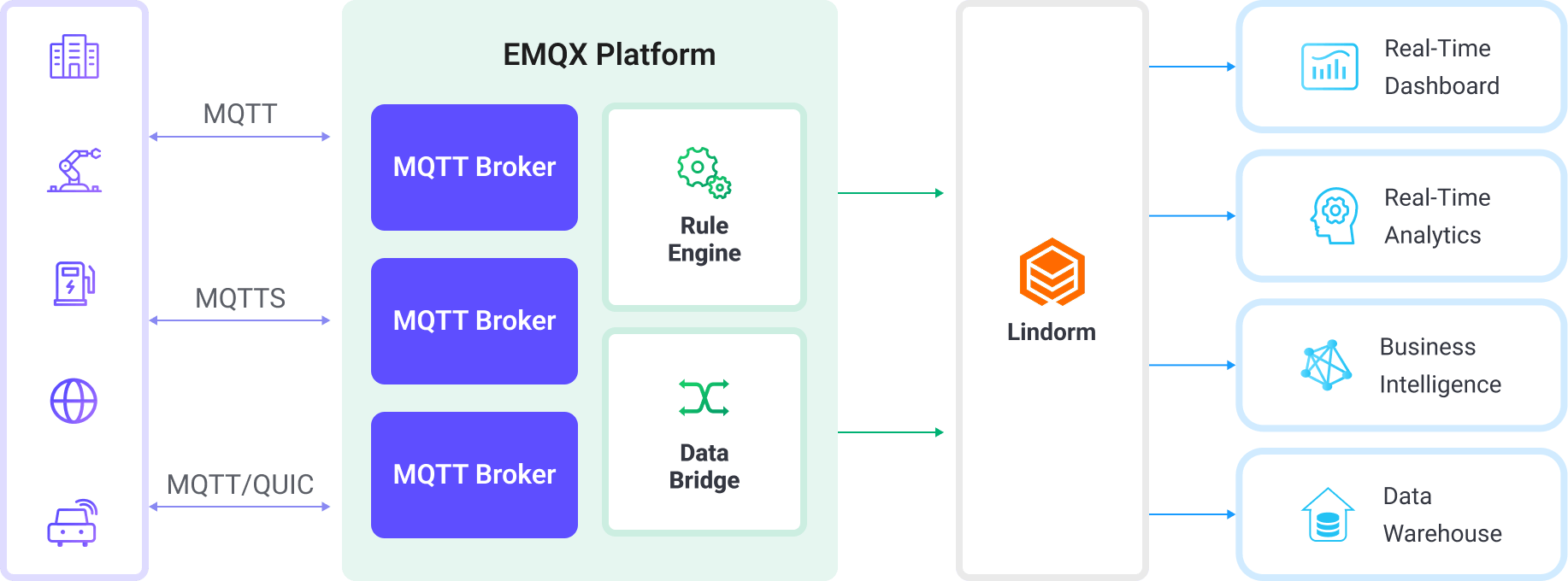

The workflow is as follows:

• Device connects to EMQX: IoT devices establish MQTT connections with EMQX.
• Device message publish and receive: Devices publish telemetry and status data to specific topics, which are received and matched by EMQX's Rule Engine.
• Rule Engine processes messages: Rules match messages based on topics and perform actions such as data transformation, filtering, or enriching with context.
• Write to Lindorm: Triggered rules use the MySQL Sink to call Lindorm's MySQL-compatible interface.
• Lindorm backend storage & optimization: Lindorm organizes data into time-series or wide table formats based on schema definitions, handling compression, indexing, and aggregation.
• External applications query and analyze: Business systems or visualization tools (like QuickBI, DataV) perform device status monitoring, metric tracking, and trend analysis via SQL queries.

Features and Benefits

Integrating Lindorm with EMQX offers the following advantages:

• High concurrency write capability: Lindorm TSDB nodes are designed for high-concurrency scenarios, supporting massive device telemetry ingestion, ideal for industrial monitoring, smart cities, etc.
• Message transformation: Messages can be processed and transformed by EMQX rules before being written to Lindorm, simplifying storage and usage.
• Flexible field mapping and rule handling: EMQX Rule Engine allows dynamic extraction and transformation of message fields with customizable SQL templates for precise data structure control.
• Efficient compression & persistent storage: Lindorm optimizes storage for time-series and structured data, effectively reducing storage costs in high-frequency write scenarios while supporting long-term data retention.
• Runtime metrics: View runtime metrics for each Sink, including total messages, success/failure counts, current rates, etc.

Combined with EMQX's rich message transformation and Lindorm's storage/query capabilities, you can build a reliable and scalable IoT data pipeline to meet diverse business needs.

Before You Start

This section covers the necessary preparations before creating Lindorm Data Integration in EMQX, including Lindorm instance creation, connection setup, and table creation.

Prerequisites

• Familiarity with Rules.
• Familiarity with Data Integration.

Create and Connect a Lindorm Instance

Before integration, ensure you have created a Lindorm instance and configured network access:

1. Log in to Alibaba Cloud Console and create a Lindorm instance.
2. Configure whitelist access to allow EMQX host IP access.
3. Depending on EMQX deployment methods, choose the appropriate Lindorm connection method:
   • If EMQX is deployed on Alibaba Cloud ECS or VPC, use Lindorm's internal VPC access address for better stability and low latency.
   • If EMQX is deployed in local data centers or other clouds:
     • Enable public access for Lindorm.
     • Use the public SQL endpoint (typically port 33060).
     • Add EMQX host's public IP to Lindorm's whitelist.

For details, refer to the official connection guide and JDBC connection for TSDB engine.

Create Database and Table

CREATE DATABASE emqx_data;

CREATE TABLE demo_sensor (
  device_id VARCHAR(255) COMMENT 'TAG',
  time BIGINT,
  msg VARCHAR(255),
  PRIMARY KEY (device_id, time)
);

This table structure is suitable for time-series data, using device_id as the tag, time as timestamp, and msg for business data.

Create a Connector

Before creating a Lindorm Sink (via MySQL protocol), you need to create a MySQL connector in EMQX to establish connectivity with Lindorm.

1. Navigate to Integration -> Connectors in the Dashboard, click Create.

2. Select MySQL as the connector type, click Next.

3. Configure the following:

   • Connector Name: Alphanumeric, e.g., my_lindorm.

   • Server Host:

     • If EMQX is deployed within Alibaba Cloud VPC network (such as ECS instances), fill in the internal SQL address of the Lindorm instance. The format is typically the internal domain provided by Lindorm, for example: ld-xxxx-proxy-sql-lindorm.lindorm.rds.aliyuncs.com:33060.
     • If EMQX is deployed in a local data center or other non-Alibaba Cloud environments, ensure that public access has been enabled in the Lindorm console, and fill in the assigned public SQL address. The format is typically: ld-xxxx-proxy-sql-public.lindorm.rds.aliyuncs.com:33060.

     Ensure that the IP address of the host where EMQX is deployed has been added to the Lindorm access whitelist.

   • Database Name: emqx_data.

   • Username: root.

   • Password: public.

4. Advanced settings (optional): See Advanced Configurations.

5. Before clicking Create, you can click Test Connectivity to test if the connector can connect to the Lindorm.

6. Click the Create button at the bottom to complete the creation of the connector. In the pop-up dialog, you can click Back to Connector List or click Create Rule to continue creating rules with Sinks to specify the data to be forwarded to Lindorm.

Create Lindorm Sink Rule

This section shows how to create a rule to handle MQTT messages from topic # and write them into the demo_sensor table in Lindorm.

1. Go to Integration -> Rules in Dashboard.

2. Click Create, enter Rule ID my_rule.

3. Enter the rule ID my_rule, and input the rule in the SQL editor. In this example, you can store MQTT messages from the # topic into Lindorm. Make sure that the fields selected in the SELECT clause include all the variables used in the SQL template. The rule SQL is as follows:

   SELECT
     clientid AS device_id,
     timestamp AS time,
     payload.msg AS msg
   FROM
     "#"

   TIP

   If you are a beginner user, click SQL Examples and Enable Test to learn and test the SQL rule.

4. Click the + Add Action button to define an action to be triggered by the rule. With this action, EMQX sends the data processed by the rule to Lindorm.

5. Select MySQL from the Type of Action dropdown list. Keep the Action dropdown with the default Create Action value. You can also select a Sink if you have created one. This demonstration will create a new Sink.

6. Enter a name for the Sink. The name should be a combination of upper/lower case letters and numbers.

7. Select the my_lindorm just created from the Connector dropdown box. You can also create a new Connector by clicking the button next to the dropdown box. For the configuration parameters, see Create a Connector.

8. Configure the SQL Template based on the feature to use:

   Note: This is a preprocessed SQL, so the fields should not be enclosed in quotation marks, and do not write a semicolon at the end of the statements.

   INSERT INTO demo_sensor(device_id, time, msg) VALUES (
     ${device_id},
     ${time},
     ${msg}
   )

   If a placeholder variable is undefined in the SQL template, you can toggle the Undefined Vars as Null switch above the SQL template to define the rule engine behavior:

   • Disabled (default): The rule engine can insert the string undefined into the database.

   • Enabled: Allow the rule engine to insert NULL into the database when a variable is undefined.

     TIP

     If possible, this option should always be enabled; disabling the option is only used to ensure backward compatibility.

9. Fallback Actions (Optional): If you want to improve reliability in case of message delivery failure, you can define one or more fallback actions. These actions will be triggered if the primary Sink fails to process a message. See Fallback Actions for more details.

10. Advanced settings (optional): See Advanced Configurations.

11. Click the Create button to complete the Sink configuration. A new Sink will be added to the Action Outputs.

12. Back on the Create Rule page, verify the configured information. Click the Create button to generate the rule.

You have now successfully created the rule. You can see the newly created rule on the Integration -> Rules page. Click the Actions(Sink) tab and you can see the new MySQL Sink.

You can also click Integration -> Flow Designer to view the topology and you can see that the messages under topic # are sent and saved to MySQL.

Test the Rule

Publish a message to the sensor/1 topic using MQTTX:

mqttx pub -i emqx_test -t sensor/1 -m '{ "msg": "hello lindorm" }'

Check the running status of the Sink, there should be one new incoming and one new outgoing message.

Use API to query if data are written in Lindorm successfully:

curl -X POST http://${LINDORM_SERVER}:8242/api/v2/sql?database=emqx_data \
  -H "Content-Type: text/plain" \
  -d 'SELECT * FROM demo_sensor'

Advanced Configurations

Detailed explanation of advanced configuration options for MySQL Connector and Sink (Lindorm):

Field	Description	Default
Connection Pool Size	Number of concurrent connections maintained in the pool for MySQL service communication. Adjust based on system resources and workload.	8
Start Timeout	Maximum wait time (in seconds) for resource readiness after creation. Ensures Lindorm connection is healthy before processing data.	5s
Buffer Pool Size	Number of worker processes managing data flow before sending to Lindorm. Set to 0 for ingress-only scenarios.	16
Request TTL	TTL for buffered requests (in seconds). Requests exceeding this time are considered expired.	45s
Health Check Interval	Frequency (in seconds) for automatic Lindorm connection health checks.	15s
Max Buffer Queue Size	Maximum byte size each buffer worker can hold before flushing data to Lindorm.	256MB
Max Batch Size	Maximum number of records per batch sent to Lindorm. For single-record transfers, set to 1.	1
Query Mode	Choose between sync and async modes. Async mode avoids blocking MQTT message publishing but may affect strict ordering.	async
In-flight Window	Maximum number of in-flight requests pending response. Set to 1 if strict message order from same client is required.	100

---
