HTTP Authentication

EMQX supports password authentication through external HTTP services. When a client connects, EMQX constructs an HTTP request using the client information and determines the authentication result based on the content returned by the request, enabling complex authentication and authorization logic.

Note

HTTP authentication is not supported in EMQX Serverless deployments.

How HTTP Authentication Works

The authentication process is similar to an HTTP API call, where EMQX, acting as the requesting client, needs to construct a request in the format required by the "API" and initiate it to the HTTP service. The HTTP service, in turn, must return results according to the "client's" requirements:

• The response content-type must be application/json.
• The authentication result is indicated in the body with result, which can be allow, deny, or ignore.
• The superuser status can be indicated by the is_superuser flag in the body, which can be set to true or false. When set to true, clients using this username will not be subject to authorization constraints. It is not recommended to set a superuser.
• The HTTP response status code should be 200 or 204. A 4xx/5xx status code will ignore the body and treat the result as ignore, continuing with the authentication chain.

Example response:

HTTP/1.1 200 OK
Headers: Content-Type: application/json
...
Body:
{
    "result": "allow", // "allow" | "deny" | "ignore"
    "is_superuser": true, // options: true | false, default value: false
    "client_attrs": { // optional (since v5.7.0)
    "role": "admin",
    "sn": "10c61f1a1f47"
}

Configure HTTP Authentication

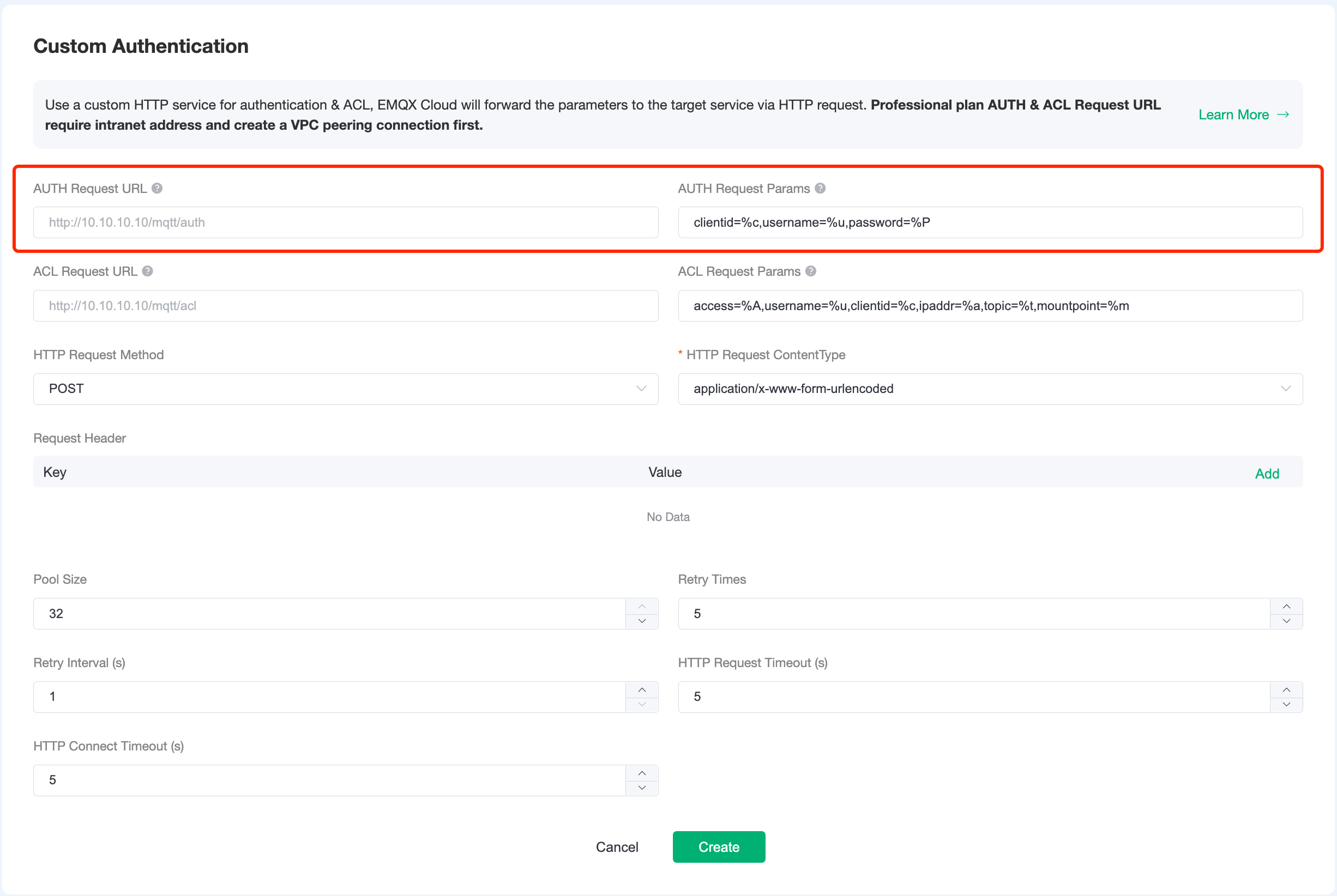

In the deployment, click Access Control -> Authentication -> Extended Authentication, select HTTP Authentication, and click Configure.

For identity verification, EMQX Cloud will use the current client information to fill and initiate the user-configured authentication query request, querying the client's authentication data on the HTTP server side.

You can complete the related configurations as follows:

• Method: Choose the HTTP request method, options: get, post.

  TIP

  The POST method is recommended. Using the GET method may expose some sensitive information (such as plain text passwords) through HTTP server logs. Moreover, use HTTPS for untrusted environments.

• URL: Enter the URL address of the HTTP service.

  TIP

  • For the Dedicated Flex deployment, create a VPC Peering Connection, and use the internal network address as the server address.
  • For the BYOC deployment, create a VPC Peering Connection in your public cloud console. For details, refer to Create VPC Peering Connections. Use the internal network address as the server address.
  • If you encounter an "Init resource failure!" message, check if the server address is correct and ensure that the security group allows access.
  • The URL address must start with either http:// or https://.
  • Avoid using placeholders in the domain name.
  • You can use the following placeholders in the URL path:
    • ${clientid}
    • ${username}
    • ${password}
    • ${peerhost}
    • ${cert_subject}
    • ${cert_common_name}

• Headers (Optional): HTTP request header configuration. Multiple headers can be added.

• OAuth2 Client Credentials (Optional): Enable OAuth2 Client Credentials if the external HTTP authentication service requires EMQX to authenticate before sending authentication requests. This option is available only for deployments running EMQX v6.1.4 or later. For details, see Configure OAuth2 Client Credentials.

• Connection Configurations: Configure concurrent connections, connection timeout, maximum HTTP request numbers, and request timeout duration here.

  • Enable TLS: Configure whether to enable TLS.
  • Connection Pool Size (Optional): An integer specifying the number of concurrent connections from EMQX nodes to the external HTTP Server; default value: 8.
  • Connection Timeout (Optional): Enter the connection timeout duration, and unit: seconds.
  • HTTP Pipeline (Optional): A positive integer specifying the maximum number of HTTP requests that can be made without waiting for a response; default value: 100.
  • Request Timeout (Optional): Enter the request timeout duration, and available units: hours, minutes, seconds, milliseconds.
  • Body: Request template. For POST requests, it is sent in JSON format in the request body. For GET requests, it is encoded as query parameters in the URL. Mapping keys and values can use placeholders. The request body supports the following placeholders:
    • ${clientid}: Will be replaced with the client ID at runtime. The client ID is usually specified explicitly by the client in the CONNECT packet.
    • ${username}: Will be replaced with the username at runtime. The username is taken from the Username field in the CONNECT packet.
    • ${password}: Will be replaced with the password at runtime. The password is taken from the Password field in the CONNECT packet.
    • ${client_attrs.<attribute>}: A client attribute. <attribute> will be replaced by an attribute name set based on predefined configurations at runtime.

Configure OAuth2 Client Credentials

For deployments running EMQX v6.1.4 or later, HTTP authentication supports OAuth2 Client Credentials. When this option is enabled, EMQX obtains, caches, and automatically refreshes an access token from the configured token endpoint. When EMQX sends a request to the external HTTP authentication service, it adds the token to the request as the Authorization: Bearer <access_token> header.

Enable OAuth2 Client Credentials, and configure the following options:

Field	Description
Token Endpoint	Required. OAuth2 authorization server endpoint used to request an access token. The URL must use HTTP or HTTPS and must not contain user information.
Client ID	Required. OAuth2 client ID used to request an access token.
Client Secret	Required. OAuth2 client secret used to request an access token.
Scope	Optional OAuth2 scope requested for the access token.
Token Request Timeout	Timeout for the HTTP request to the token endpoint. The default is 5 seconds.
Token Endpoint TLS	Enables TLS for the token endpoint. This setting is independent of Enable TLS, which controls the connection to the external HTTP authentication service.

EMQX sends a POST request with the application/x-www-form-urlencoded content type to the token endpoint. The request body contains grant_type, client_id, client_secret, and the optional scope. The token endpoint must return a 200 response with a JSON body that contains an access_token. It can also return token_type and expires_in. If present, token_type must be Bearer, and expires_in must be a positive integer.

Important Notice

• Do not configure an Authorization header for HTTP authentication when OAuth2 is enabled. EMQX rejects the configuration because it conflicts with the automatically generated Bearer authorization header.
• The token endpoint must accept the client ID and client secret as form fields in the request body. Authenticating to the token endpoint with an HTTP Basic Authorization header is not supported.
