Event Topics

The Rule of Data Integrations provides several event topics for the FROM clause. You can use rules to extract data from event topics to get event notifications, for example, clients online and offline, client subscriptions, etc. The event topic starts with "$events/", such as "$events/client_connected", which can be specified in the FROM clause of the rule.

This section introduces the usage of event topics and the meaning of each field from three aspects: client connect and disconnect events, message events, and topic subscribe and unsubscribe events.

TIP

By default, clients are unable to subscribe directly to MQTT event messages. This section describes using rules to subscribe to these messages.

See the table below for the supported event topic list.

Event Topic List

Event topic name	Explanation
$events/message_delivered	Message delivery
$events/message_acked	Message acknowledged
$events/message_dropped	Message dropped when routing
$events/delivery_dropped	Message dropped when delivering
$events/client_connected	Connection complete
$events/client_disconnected	Disconnect
$events/client_connack	Connection acknowledged
$events/client_check_authz_complete	Authorization check complete
$events/client_check_authn_complete	Authentication check complete
$events/session_subscribed	Subscribe
$events/session_unsubscribed	Unsubscribe

Message Delivery Event ("$events/message_delivered")

This event topic can be used to trigger a rule when a message is delivered to a client.

For example, to extract data from the "$events/message_delivered" event topic that includes the following data fields, ID and username of the publisher, message topic, message QoS, EMQX node with the event triggered, and the time when the event was triggered, you can use the statement below:

Example:

SELECT
  from_clientid,
  from_username,
  topic,
  qos,
  node,
  timestamp
FROM
  "$events/message_delivered"

Output:

{
  "topic": "t/a",
  "timestamp": 1645002753259,
  "qos": 1,
  "node": "emqx@127.0.0.1",
  "from_username": "u_emqx_1",
  "from_clientid": "c_emqx_1"
}

Below are detailed explanations of each field.

Code	Explanation
id	MQTT message ID
from_clientid	Client ID of the publisher
from_username	Username of the publisher
clientid	Client ID of the subscriber
username	Username of the subscriber
payload	MQTT payload
peerhost	Client IP address
topic	MQTT topic
qos	QoS level
flags	Flags
pub_props	PUBLISH Properties (MQTT 5.0 clients only)
timestamp	Event trigger time (unit: ms)
publish_received_at	Time when PUBLISH message reaches EMQX (unit: ms)
node	EMQX node where the event triggered

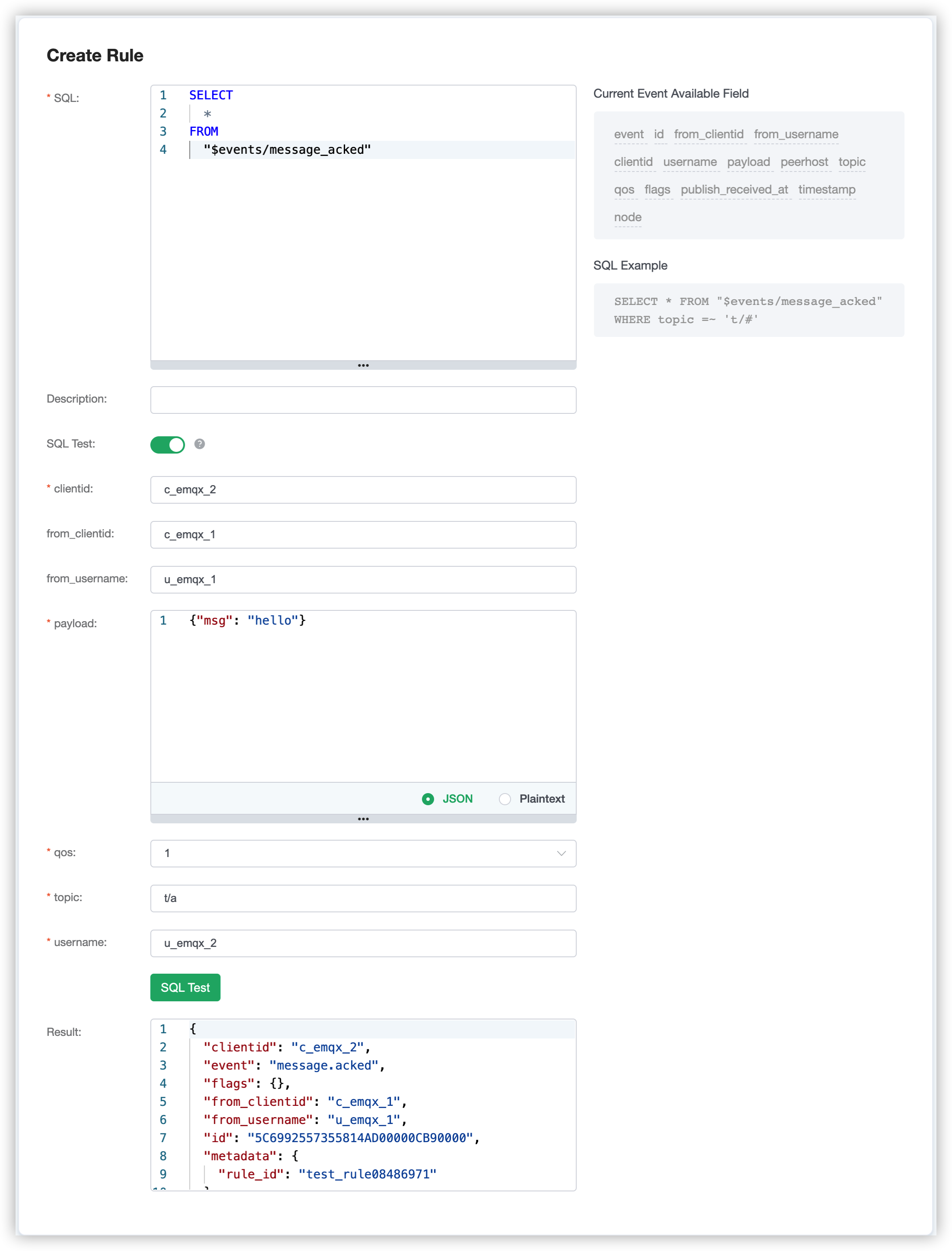

Message Acknowledged Event ("$events/message_acked")

This event topic can be used to trigger a rule when the message delivery is acknowledged.

TIP

Only availabe for QOS 1 and QOS 2 messages.

For example, to extract data from the "$events/message_acked" event topic that includes the following data fields, ID and username of the publisher, message topic, message QoS, EMQX node where the event triggered, and the time when the event was triggered, you can use the statement below:

Example:

SELECT
  from_clientid,
  from_username,
  topic,
  qos,
  node,
  timestamp
FROM
  "$events/message_acked"

Output:

{
  "topic": "t/a",
  "timestamp": 1645002965664,
  "qos": 1,
  "node": "emqx@127.0.0.1",
  "from_username": "u_emqx_1",
  "from_clientid": "c_emqx_1"
}

Below are detailed explanations of each field.

Code	Explanation
id	MQTT message ID
from_clientid	Client ID of the publisher
from_username	Username of the publisher
clientid	Client ID of the subscriber
username	Username of the subscriber
payload	MQTT payload
peerhost	Client IPAddress
topic	MQTT topic
qos	QoS levels
flags	Flags
pub_props	PUBLISH Properties (MQTT 5.0 only)
puback_props	PUBACK Properties (MQTT 5.0 only)
timestamp	Event trigger time (in milliseconds)
publish_received_at	Time when PUBLISH message reaches EMQX (unit: ms)
node	EMQX node where the event triggered

Message Dropped When Routing Event ("$events/message_dropped")

This event topic can be used to trigger a rule when a message is dropped during routing.

For example, to extract data from the "$events/message_dropped" event topic that includes the following data fields: drop reason, message topic, message QoS, EMQX node where the event triggered, and the time when the event was triggered, you can use the statement below:

Example:

SELECT
  reason,
  topic,
  qos,
  node,
  timestamp
FROM
  "$events/message_dropped"

Output:

{
  "topic": "t/a",
  "timestamp": 1645003103004,
  "reason": "no_subscribers",
  "qos": 1,
  "node": "emqx@127.0.0.1"
}

Field	Explanation
id	MQTT message ID
reason	Dropping reasons: no_subscribers: No clients subscribe to the topic receive_maximum_exceeded: awaiting_rel queue is full packet_identifier_inuse: Receive a QoS 2 message with unreleased packet ID
clientid	Client ID of the publisher
username	Username of the publisher
payload	MQTT payload
peerhost	Client IP Address
topic	MQTT topic
qos	QoS levels
flags	Flags
pub_props	PUBLISH Properties (MQTT 5.0 only)
timestamp	Event trigger time (unit: ms)
publish_received_at	Time when PUBLISH message reaches EMQX (unit: ms)
node	Node where the event is triggered

Message Dropped When Delivering Event ("$events/delivery_dropped")

This event topic can trigger a rule when a message is dropped during delivery.

For example, to extract data from the "$events/delivery_dropped" event topic that includes the following data fields: publisher ID and username, drop reason, message topic and QoS, you can use the statement below:

Example:

SELECT
  from_clientid,
  from_username,
  reason,
  topic,
  qos
FROM "$events/delivery_dropped"

Output:

{
  "topic": "t/a",
  "reason": "queue_full",
  "qos": 1,
  "from_username": "u_emqx_1",
  "from_clientid": "c_emqx_1"
}

Below are detailed explanations of each field.

Explanation
id	MQTT message ID
reason	Dropping reasons: queue_full: Message (QoS>0) queue is full. no_local: Clients are not allowed to receive messages published by themselves. expired: Message or the Session expired. qos0_msg: Message (QoS 0) queue is full.
from_clientid	Client ID of the publisher
from_username	Username of the publisher
clientid	Client ID of the subscriber
username	Username of the subscriber
payload	MQTT payload
peerhost	Client IP Address
topic	MQTT topic
qos	Message QoS
flags	Flags
pub_props	PUBLISH Properties (MQTT 5.0 clients only)
timestamp	Event trigger time (unit: ms)
publish_received_at	Time when PUBLISH message reaches EMQX (unit: ms)
node	EMQX node where the event is triggered

Connection Complete Event ("$events/client_connected")

This event topic can be used to trigger a rule when a client is connected successfully.

For example, to extract data from the "$events/client_connected" event topic that includes the following data fields: client ID and username, keepalive interval, and whether the connected MQTT client is acting as a bridge, you can use the statement below:

Example:

SELECT
  clientid,
  username,
  keepalive,
  is_bridge
FROM
  "$events/client_connected"

Output:

{
  "username": "u_emqx",
  "keepalive": 60,
  "is_bridge": false,
  "clientid": "c_emqx"
}

Refer to the table below for fields that can be selected from the received MQTT messages:

Field	Explanation
clientid	Client ID
username	Client username
mountpoint	Mountpoint for bridging messages
peername	IP address and port of terminal
sockname	IP Address and Port listened by EMQX
proto_name	Protocol name
proto_ver	Protocol version
keepalive	MQTT keepalive interval
clean_start	MQTT clean_start
expiry_interval	MQTT session expiration time
is_bridge	Whether the client is acting as a bridge
connected_at	Client connection completion time (unit: ms)
conn_props	CONNECT Properties (MQTT 5.0 clients only)
timestamp	Event trigger time (unit: ms)
node	EMQX node where the event is triggered
client_attrs	Client attributes

Disconnect Event ("$events/client_disconnected")

This event topic can be used to trigger a rule when a client is disconnected.

For example, you can use the statement below to extract data from the "$events/client_disconnected" event topic that includes the following data fields: client ID, username, disconnect reason, disconnect time, and EMQX node where the event is triggered.

Example:

SELECT
  clientid,
  username,
  reason,
  disconnected_at,
  node
FROM
  "$events/client_disconnected"

Output:

{
  "username": "u_emqx",
  "reason": "normal",
  "node": "emqx@127.0.0.1",
  "disconnected_at": 1645003578536,
  "clientid": "c_emqx"
}

Field	Explanation
reason	Disconnect reasons normal: The client is intentionally disconnected kicked: EMQX has forcibly removed the client through REST API keepalive_timeout: The specified keepalive time period expired. not_authorized: Authorization failed. tcp_closed: The peer has closed network connection. discarded: Another client ( with clean_start set to true) connected with the same ClientID, causing the previous connection to be dropped. takenover: Another client ( with clean_start set to false) connected with the same ClientID, taking over the previous connection.. internal_error: An error has occurred due to an improperly formatted message or other unknown issues.
clientid	Client ID
username	Client username
peername	IP Address and Port number
sockname	IP Address and Port number listened by EMQX
disconnected_at	Client disconnection completion time (unit: ms)
disconn_props	DISCONNECT Properties (MQTT 5.0 clients only)
timestamp	Event trigger time (unit: ms)
node	EMQX node where the event is triggered
client_attrs	Client attributes

Connection Acknowlege Event ("$events/client_connack")

This event topic can be used to trigger a rule when the EMQX sends a CONNACK packet to the client.

Example:

SELECT
  clientid,
  username,
  reason_code,
  node
FROM
  "$events/client_connack"

Output:

{
  "username": "u_emqx",
  "reason_code": "success",
  "node": "emqx@127.0.0.1",
  "connected_at": 1645003578536,
  "clientid": "c_emqx"
}

Refer to the table below for fields that can be extracted:

Field	Explanation
reason_code	Reason code*
clientid	Client ID of the publisher
username	Username of the publisher
peername	IP and port
sockname	IP and port listened by EMQX
proto_name	Protocol name
proto_ver	Protocol version
keepalive	MQTT keepalive interval
clean_start	MQTT clean_start
expiry_interval	MQTT session expiration time
conn_props	CONNECT Properties (MQTT 5.0 clients only)
timestamp	Event trigger time (unit: ms)
node	EMQX node where the alarm is triggered.

[^*]: The MQTT v5.0 protocol renames the return code to a reason code, adding a reason code to indicate more types of errors (Reason code and ACK - MQTT 5.0 new features).

Here is the reason code for MQTT v3.1.1 and MQTT v5.0.

Reason Code	Description
connection_accepted	Connection accepted
unacceptable_protocol_version	EMQX does not support the MQTT protocol requested by the client.
client_identifier_not_valid	The client ID is not allowed by EMQX.
server_unavaliable	Network connection has been established, but MQTT service is unavailable.
malformed_username_or_password	Username or password is in the wrong data format.
unauthorized_client	Client connection is not authorized.

Reason Code	Description
success	Connection successful
unspecified_error	Unknown error
malformed_packet	Packet malformed
protocol_error	Protocol issue
implementation_specific_error	Specific implementation error
unsupported_protocol_version	Unsupported protocol version
client_identifier_not_valid	Invalid client ID
bad_username_or_password	Invalid username/password
not_authorized	Unauthorized
server_unavailable	Server unavailable
server_busy	Server busy
banned	Banned
bad_authentication_method	Invalid authentication method
topic_name_invalid	Invalid topic name
packet_too_large	Packet too big
quota_exceeded	Quota exceeded
retain_not_supported	Retain message feature unsupported
qos_not_supported	Unsupported QoS level
use_another_server	Use different broker
server_moved	Broker relocated
connection_rate_exceeded	Connection rate limit reached

Authorization Check Complete Event ("$events/client_check_authz_complete")

This event topic can be used to trigger a rule when the authorization check for the client is complete.

Example:

SELECT
  clientid,
  username,
  topic,
  action,
  result,
  authz_source,
  node
FROM
  "$events/client_check_authz_complete"

Output:

{
  "username": "u_emqx",
  "topic": "t/a",
  "action": "publish",
  "result": "allow",
  "authz_source": "cache",
  "node": "emqx@127.0.0.1",
  "clientid": "c_emqx"
}

Refer to the table below for fields that can be extracted.

Field	Explanation
clientid	Client ID
username	Username
peerhost	Client IP Address
topic	MQTT topic
action	Publish or subscribe action
result	Access control check result
authz_source	The authorization source
timestamp	Timestamp (unit: ms)
node	EMQX node where the event is triggered.
client_attrs	Client attributes

Authentication Check Complete Event ("$events/client_check_authn_complete")

This event topic can be used to trigger a rule when the authentication check for the client is complete.

Example:

SELECT
  clientid,
  username,
  reason_code,
  is_superuser,
  is_anonymous
FROM
  "$events/client_check_authn_complete"

Output:

{
  "clientid": "c_emqx",
  "username": "u_emqx",
  "reason_code": "success",
  "is_superuser": true,
  "is_anonymous": false
}

Refer to the table below for fields that can be extracted.

Field	Explanation
clientid	Client ID
username	Username
peername	Client IP Address
reason_code	Authentication result
is_superuser	Whether this client is a super user
is_anonymous	Whether this client is a anonymous user
client_attrs	Client attributes

Subscriber Event ("$events/session_subscribed")

This event topic can be used to trigger a rule when the client subscribes successfully.

Example:

SELECT
  clientid,
  username,
  topic,
  qos
FROM
  "$events/session_subscribed"

Output:

{
  "username": "u_emqx",
  "topic": "t/a",
  "qos": 1,
  "clientid": "c_emqx"
}

Refer to the table below for fields that can be extracted.

Field	Explanation
clientid	Client ID
username	Client username
peerhost	Client IP Address
topic	MQTT topic
qos	QoS levels
sub_props	SUBSCRIBE Properties (MQTT 5.0 client only)
timestamp	Event trigger time (unit: ms)
node	EMQX node where the event is triggered
client_attrs	Client attributes

Unsubcribe Event ("$events/session_unsubscribed")

The rule is triggered when the terminal subscription is cancelled successfully.

Example:

SELECT
  clientid,
  username,
  topic,
  qos
FROM
  "$events/session_unsubscribed"

Output:

{
  "username": "u_emqx",
  "topic": "t/a",
  "qos": 1,
  "clientid": "c_emqx"
}

Refer to the table below for fields that can be extracted.

Field	Explanation
clientid	Client ID
username	Client username
peerhost	Client IP Address
topic	MQTT topic
qos	QoS levels
unsub_props	UNSUBSCRIBE Properties (MQTT 5.0 clients only)
timestamp	Event trigger time (unit: ms)
node	EMQX node where the event is triggered
client_attrs	Client attributes
