Change Deployment Tier

The EMQX Platform allows users to scale up or down their Dedicated/Premium deployments by changing the deployment tier to handle more or fewer MQTT connections or messages per second, depending on the deployment's needs.

TIP

Serverless and BYOC deployments do not support tier changes.

This page provides a guide for changing the deployment tier in the EMQX Platform Console. Access permissions and restrictions are set to ensure secure and controlled scaling operations.

Overview

The tier-changing feature allows users with the appropriate permissions to:

  • Scale their running deployments through the EMQX Platform Console.
  • Perform tier changes directly, with limitations in place to prevent frequent changes.
  • Roll back tier changes if necessary.

Feature Availability

This feature is only available for specific deployment types and statuses. Refer to the table below for availability:

Deployment TypeScaling Option AvailabilityAction
Serverless / BYOCNot AvailableNo changing tier option displayed.
Non-trial Running Dedicated (Hourly Billing Method)AvailableChanging tier directly in the Console without submitting a support ticket.
Running Dedicated (Annual Prepaid Method)LimitedChange Tier button displayed, prompting ticket submission.
Running PremiumLimitedChange Tier button displayed, prompting ticket submission.

Permissions

Only users with root, administrator, or project administrator permissions can access the changing tier option for deployments.

Change Tier for a Dedicated Deployment

Before your start, make sure your deployment is in the running state.

  1. Go to your deployment and click Settings from the left menu.

  2. Navigate to Tier, and click Change Tier.

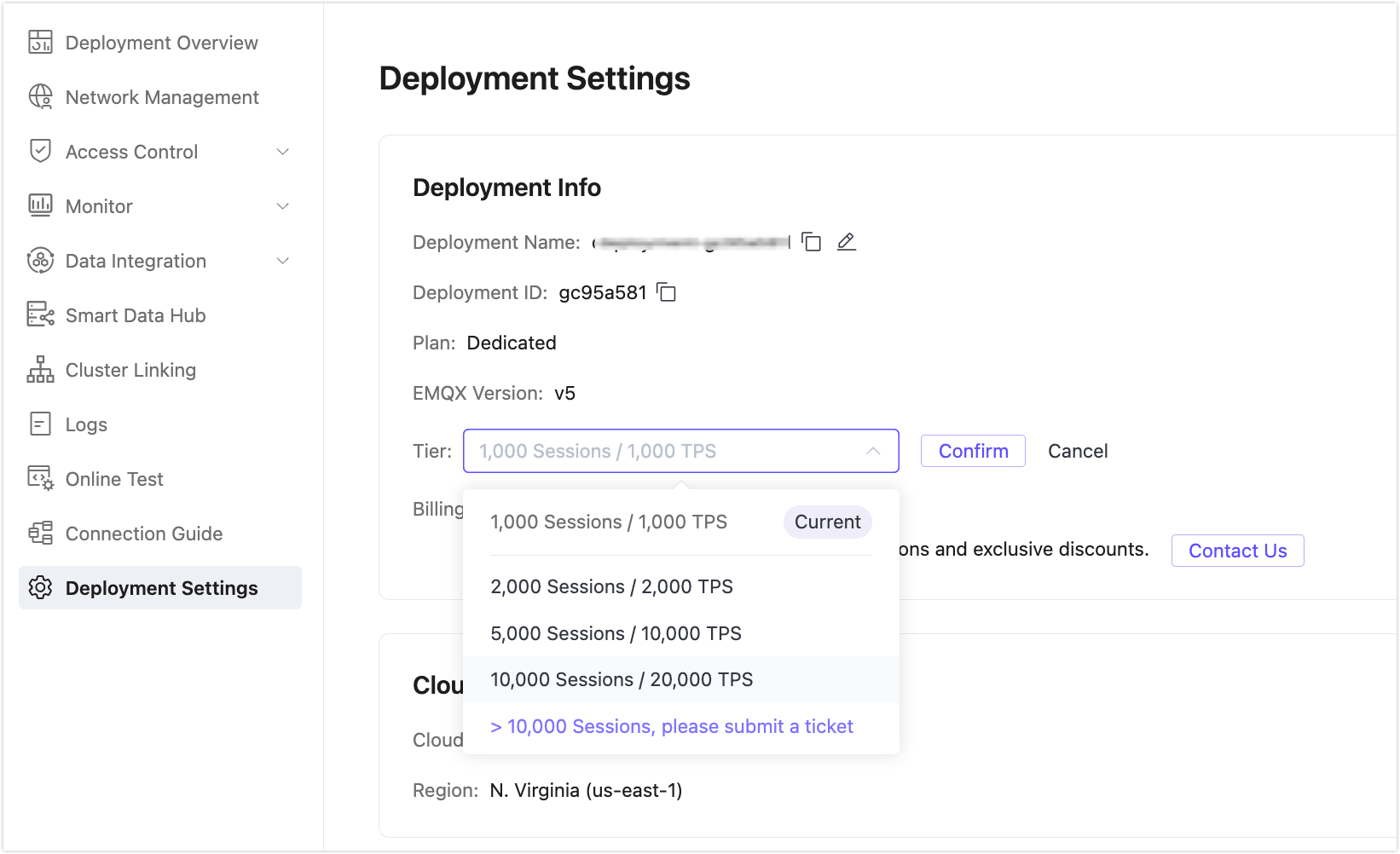

  3. Select the desired tier option from the dropdown and click the Confirm button next to the dropdown.

    • For the >10,000 Sessions option, you have to submit a ticket. You will be redirected to the Tickets page and prompted to fill in the ticket.
    change_tier
  4. A Change Tier pop-up dialogue will appear to prevent unintended actions. Click Confirm to initiate the request.

Once confirmed, the request will be sent to the backend, and you will be redirected to the Deployment Overview page. A notification will inform you that the scaling process has started. You will receive a prompt when the scaling process is complete.

Restrictions on Changing Tier

To prevent misuse, changing tiers is limited to one action per 12 hours. If you attempt to initiate another changing tier action within this period, an error message will notify you of the restriction.

Rollback for Changing Tier

In case of any issues with the scaling change, a rollback option is available through EMQX support. This feature allows you to revert to the previous specifications if problems occur after scaling. Submit a ticket if rollback assistance is needed.
