Ingest MQTT Data into TDengine ​

TDengine is a big data platform, designed and optimized specifically for the Internet of Things (IoT) and Industrial Internet of Things (IIoT) scenarios. At its heart lies a high-performance time-series database, characterized by its cluster-oriented architecture, cloud-native design, and minimalistic approach. EMQX Platform supports integration with TDengine, enabling massive data transmission, storage, analysis, and distribution from a large number of devices and data collectors. It provides real-time monitoring and early warning of business operation states, offering real-time business insights.

This page provides a comprehensive introduction to the data integration between EMQX Platform and TDengine with practical instructions on creating and validating the data integration.

How It Works ​

TDengine data integration is a built-in feature in EMQX Platform. With a built-in rule engine component, the integration simplifies the process of ingesting data from EMQX Platform to TDengine, eliminating the need for complex coding. EMQX Platform forwards device data to TDengine through the rule engine and action. Through the TDengine data integration, MQTT messages and client events can be stored in TDengine. Additionally, data updates or deletions in TDengine can be triggered by events, thereby enabling the recording of information such as device online status and historical online/offline events.

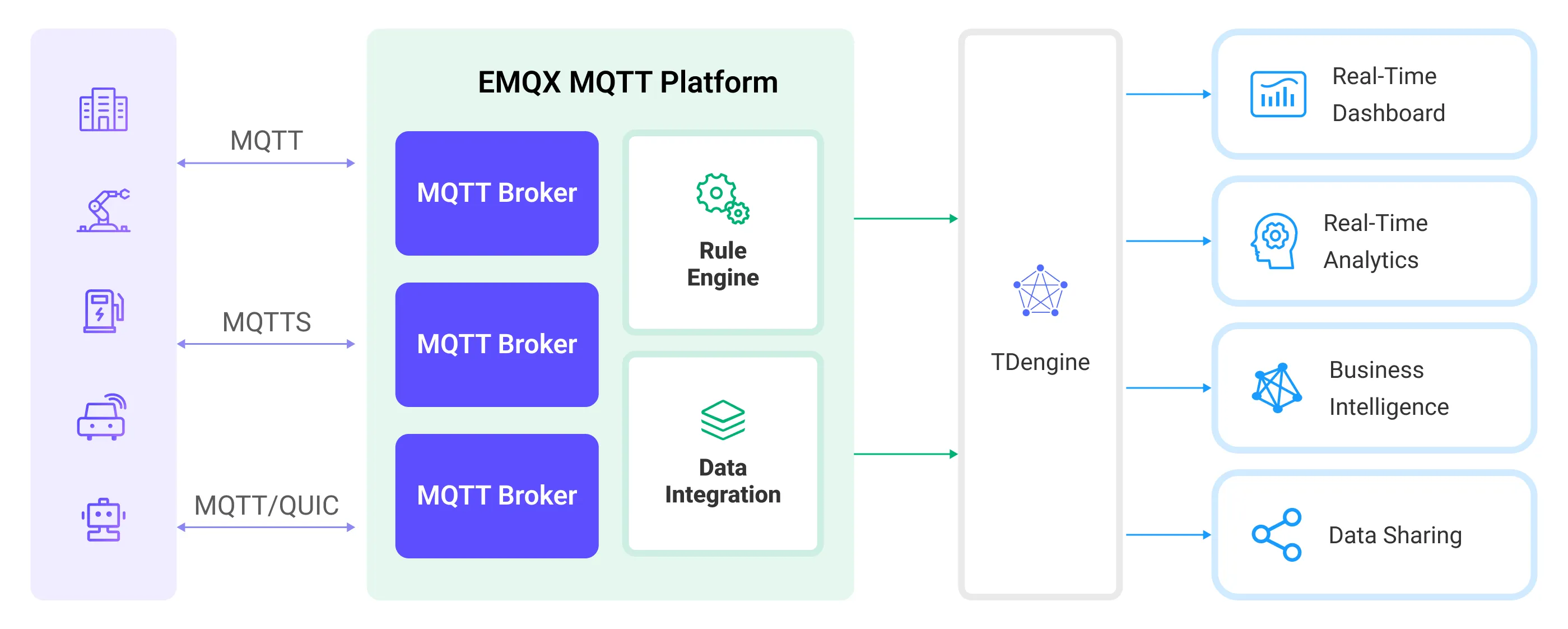

The diagram below illustrates the typical architecture of EMQX Platform and TDengine data integration in the industrial IoT:

EMQX Platform-TDengine Integration

Taking the industrial energy consumption management scenario as an example, the workflow is as follows:

  1. Message publication and reception: Industrial devices establish successful connections to EMQX Platform through the MQTT protocol and regularly publish energy consumption data using the MQTT protocol. This data includes production line identifiers and energy consumption values. When EMQX Platform receives these messages, it initiates the matching process within its rules engine.
  2. Rule Engine Processes Messages: The built-in rule engine processes messages from specific sources based on topic matching. When a message arrives, it passes through the rule engine, which matches it with corresponding rules and processes the message data. This can include transforming data formats, filtering specific information, or enriching messages with context information.
  3. Data ingestion into TDengine: Rules defined in the rule engine trigger operations to write messages to TDengine. The TDengine action provides SQL templates that allow flexible definitions of the data format to write specific message fields to the corresponding tables and columns in TDengine.

After energy consumption data is written to TDengine, you can analyze your data in real-time using standard SQL and powerful time-series extensions, seamlessly integrating with numerous third-party batch analyses, real-time analysis, reporting tools, AI/ML tools, and visualization tools. For example:

  • Connect to visualization tools such as Grafana to generate charts and display energy consumption data.
  • Connect to application systems such as ERP or Power BI for production analysis and production plan adjustments.
  • Connect to business systems to perform real-time energy usage analysis, facilitating data-driven energy management.

Features and Benefits ​

The TDengine data integration brings the following features and advantages to your business:

  • Efficient Data Handling: EMQX Platform can handle a large number of IoT device connections and message throughput efficiently. TDengine excels in data writing, storage, and querying, meeting the data processing needs of IoT scenarios without overwhelming the system.
  • Message Transformation: Messages can undergo rich processing and transformation within EMQX Platform rules before being written to TDengine.
  • Cluster and Scalability: EMQX Platform and TDengine support clustering capabilities and are built on cloud-native architecture, enabling full utilization of the cloud platform's elastic storage, computing, and network resources, allowing for flexible horizontal scaling as your business grows to meet expanding demands.
  • Advanced Querying Capabilities: TDengine provides optimized functions, operators, and indexing techniques for efficient querying and analysis of timestamp data, enabling precise insights to be extracted from IoT time-series data.

Before You Start ​

This section describes the preparations you must complete before you start creating the TDengine data integration, including how to set up the TDengine server and create data tables.

Prerequisites ​

Set up Network ​

Before you start, you need to create a deployment (EMQX cluster) on the EMQX Platform and configure the network.

  • For Dedicated/Premium deployment users: First, create a VPC Peering Connection. After establishing the peering connection, you can log in to the Platform Console via the internal network IP to access the target connector. Alternatively, set up a NAT Gateway to access the target connector through a public IP.
  • For BYOC (Bring Your Own Cloud) deployment users: Establish a peering connection between the VPC where BYOC is deployed and the VPC where the target connector is located. After creating the peering connection, you can access the target connector via the internal network IP. If you need to access resources via a public IP address, configure a NAT gateway for the VPC where BYOC is deployed in the public cloud console.

Install TDengine ​

Install TDengine via Docker, and then run the docker image.

bash
# To start the TDengine docker image
docker run --name TDengine -p 6041:6041 tdengine/tdengine

# Access the container
docker exec -it TDengine bash

# Locate the TDengine server in the container
taos

# Create and then select the database
CREATE DATABASE mqtt;

use mqtt;

Create a Data Table in TDengine ​

Before you create data bridges for TDengine, you need to create a data table in the TDengine database for message storage.

Use the following SQL statements to create data table t_mqtt_msg in the TDengine database. The data table stores the client ID, topic, payload, and creation time of every message.

sql
   CREATE TABLE t_mqtt_msg (
       ts timestamp,
       msgid NCHAR(64),
       mqtt_topic NCHAR(255),
       qos TINYINT,
       payload BINARY(1024),
       arrived timestamp
     );

Create a Connector ​

Before creating data integration rules, you need to first create a TDengine connector to access the TDengine server.

  1. Go to your deployment. Click Data Integration from the left-navigation menu. If it is the first time for you to create a connector, select TDengine under the Data Persistence category. If you have already created connectors, select New Connector and then select TDengine under the Data Persistence category.

  2. Connector Name: The system will automatically generate a connector name.

  3. Enter the connection information:

    • Server Host: Enter http://127.0.0.1:6041, or the actual URL if the TDengine server is running remotely.
    • Username: Enter root.
    • Password: Enter taosdata.
    • Configure advanced settings according to your business needs (optional).

  4. Click the Test button. If the TDengine service is accessible, a prompt indicating connector available will be returned.

  5. Click the New button to complete the creation.

Next, you can create data bridge rules based on this Connector.

Create a Rule ​

This section demonstrates how to create a TDengine Rule and add action to the rule via the EMQX Platform Console.

  1. Click New Rule in the Rules area or click the New Rule icon in the Actions column of the connector you just created.

  2. Set the rules in the SQL Editor based on the feature to use, Our goal is to trigger the engine when the client sends a temperature and humidity message to the temp_hum/emqx topic. Here you need a certain process of SQL:

    sql
     SELECT
   *,
   now_timestamp('millisecond')  as ts
 FROM
   "temp_hum/emqx"

    TIP

    If you are a beginner user, click SQL Examples and Enable Test to learn and test the SQL rule.

  3. Click Next to add an action.

  4. Select the connector you just created from the Connector dropdown box.

  5. Database Name: Enter mqtt.

  6. Configure the SQL Template for the action. You can use the following SQL to complete data insertion. It also supports batch setting via CSV file. For details, refer to Batch Setting.

    sql
    INSERT INTO t_mqtt_msg(ts, msgid, mqtt_topic, qos, payload, arrived)
    VALUES (${ts}, '${id}', '${topic}', ${qos}, '${payload}', ${timestamp})

    If a placeholder variable is undefined in the SQL template, you can toggle the Undefined Vars as Null switch above the SQL template to define the rule engine behavior:

    • Disabled (default): The rule engine can insert the string undefined into the database.

    • Enabled: Allow the rule engine to insert NULL into the database when a variable is undefined.

      TIP

      If possible, this option should always be enabled; disabling the option is only used to ensure backward compatibility.

  7. Expand Advanced Settings to configure Sync/Async mode, queue and batch, and other parameters as appropriate Advanced Settings Options (optional)

  8. Click the Confirm button to complete the rule creation.

  9. In the Successful new rule pop-up, click Back to Rules, thus completing the entire data integration configuration chain.

Batch Setting ​

In TDengine, a single data entry may contain hundreds of data points, making the task of writing SQL statements challenging. To address this issue, EMQX Platform offers a feature for batch setting SQL.

When editing the SQL template, you can use the batch setting feature to import fields for insertion operations from a CSV file.

  1. Click the Batch Setting button below the SQL Template to open the Import Batch Setting popup.

  2. Follow the instructions to download the batch setting template file, then fill in the key-value pairs of Fields in the template file. The default template file content is as follows:

    FieldValueChar ValueRemarks (Optional)
    tsnowFALSEExample Remark
    msgid${id}TRUE
    mqtt_topic${topic}TRUE
    qos${qos}FALSE
    temp${payload.temp}FALSE
    hum${payload.hum}FALSE
    status${payload.status}FALSE
    • Field: Field key, supports constants or ${var} format placeholders.
    • Value: Field value, supports constants or ${var} format placeholders. Although SQL requires character types to be wrapped in quotes, quotes are not needed in the template file, but whether the field is a character type is specified in the Char Value column.
    • Char Value: Used to specify whether the field is a character type, to add quotes to the field when generating SQL upon import. If the field is a character type, fill in TRUE or 1; otherwise, fill in FALSE or 0.
    • Remarks: Used only for notes within the CSV file, cannot be imported into EMQX Platform.

    Note that the data in the CSV file for batch setting should not exceed 2048 rows.

  3. Save the filled template file and upload it to the Import Batch Setting popup, then click Import to complete the batch setting.

  4. After importing, you can further adjust the SQL in the SQL Template, such as setting table names, formatting SQL code, etc.

Test the Rule ​

You are recommended to use MQTTX to simulate temperature and humidity data reporting, but you can also use any other client.

  1. Use MQTTX to connect to the deployment and send messages to the following Topic.

    • topic: temp_hum/emqx

    • client id: test_client

    • payload:

      json
      {
  "temp": "27.5",
  "hum": "41.8"
}

  2. Check the running status of the action, there should be 1 new incoming and 1 new outgoing message.

  3. Check whether the data is written into the t_mqtt_msg data table.

bash
taos> select * from t_mqtt_msg;
           ts            |             msgid              |           mqtt_topic           | qos  |            payload             |         arrived         |
==============================================================================================================================================================
 2024-03-29 06:57:37.300 | 000614C727B230AE67180100069... | temp_hum/emqx                            |    1 | {
  "temp": "27.5",
  "hum"... | 2024-03-29 06:57:37.300 |
Query OK, 1 row(s) in set (0.002968s)
