# Logs

EMQX Cloud provides real-time online viewing of EMQX logs.

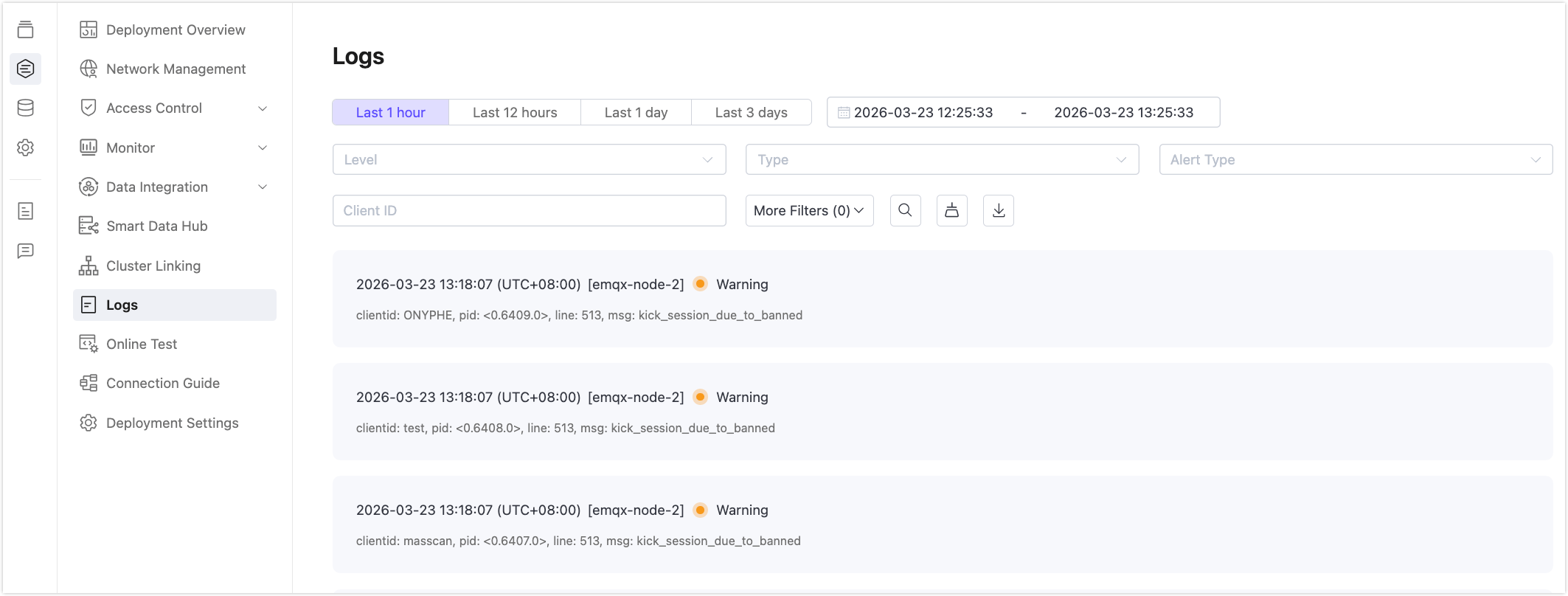

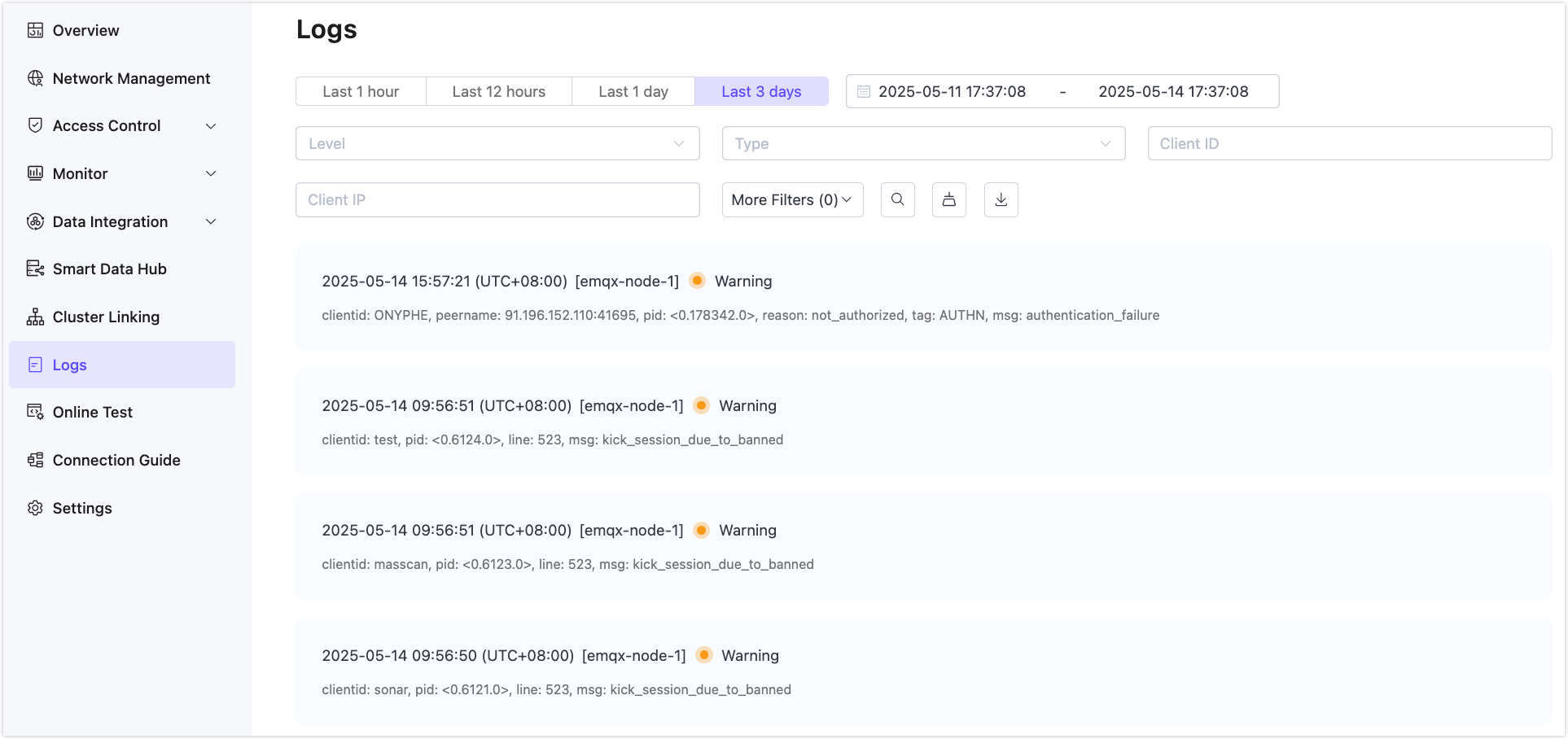

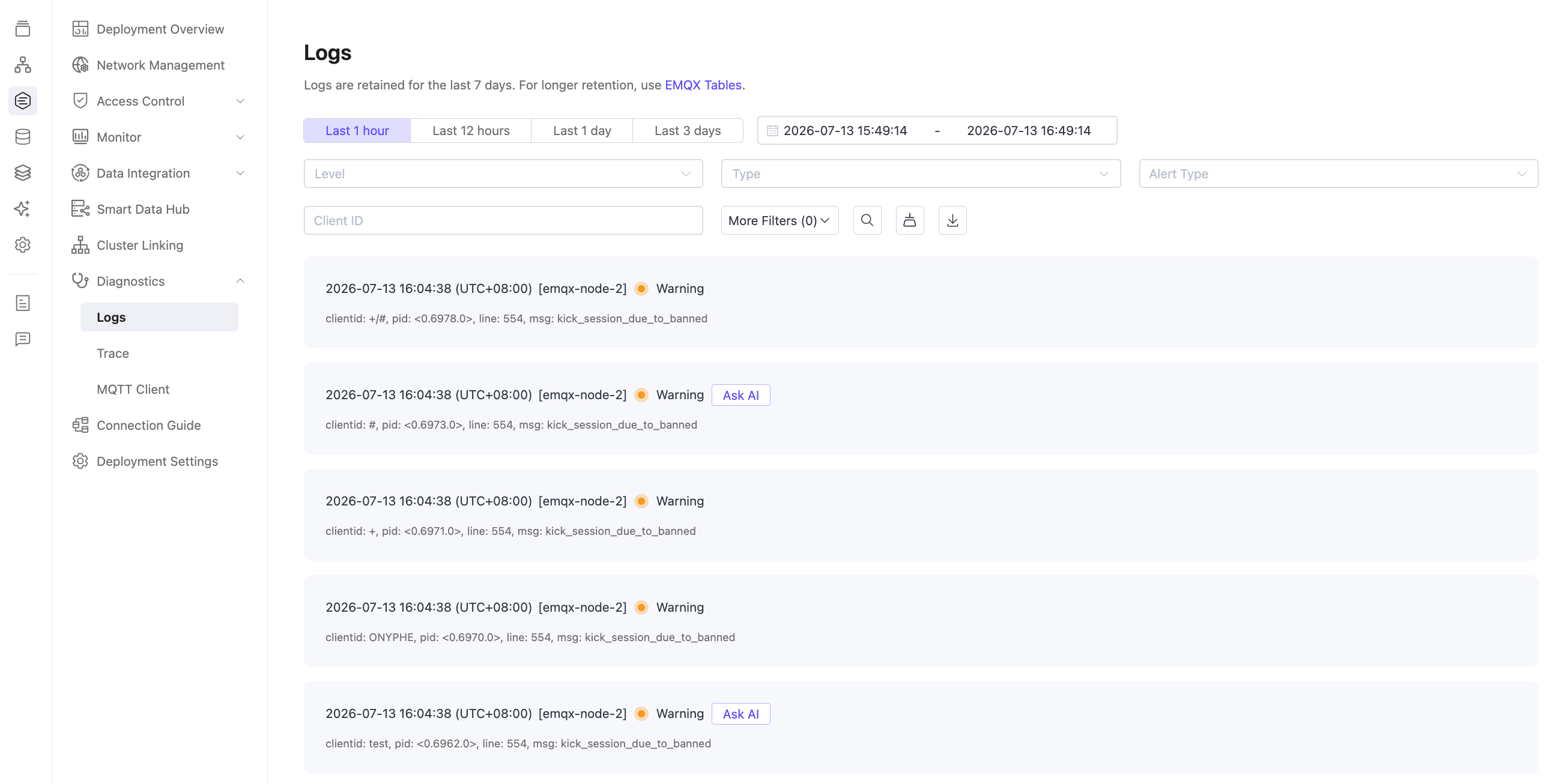

# View Deployment Logs

Logs analysis reconfigures the ability to parse and search for logs, providing two EMQX nodes [emqx-node-1], [emqx-node-2] with multiple levels of log information, including ClientID, ClientIP, Username, Topic, Resource, and Rule ID, as well as filtering by error type.

Data Integration: Data integration related errors. Errors caused by the corresponding service not running or other reasons. For example, MySQL is not running when storing to MySQL, unauthorized, or table errors, etc.

Client: Client-related errors, including incorrect authentication information, incorrect access control information, and other reasons for not being able to connect.

Message: Message-related errors, such as encoding problems, message loss and abandonment, etc.

Module: emqx module related errors, such as custom authentication errors due to inability to connect to the corresponding service.

EMQX Internal Errors: Erlang and errors that cannot be classified to the above cases.

view_log

# Common Logs Analysis

# Client authentication failed (warning)

  • Log
[Channel] Client xxx (Username: 'xxx') login failed for not_authorized
1
  • Solution
Check that client authentication is correctly configured.
1

# Client ACL authentication failed (warning)

  • Log
[Channel] Cannot publish message to xxx due to Not authorized.
1
  • Solution
Check that the deployment ACL is configured correctly
1

# Non-standard MQTT protocol connections (warning)

  • Log
[MQTT] Parse failed for function_clause[{emqx_frame,parse_packet,[{mqtt_packet_header,4,false,3,true}
1
  • Solution
Check that the MQTT protocol used by the client connection is the standard MQTT protocol
1

# Message drop alerts (warnings)

  • Log
Dropped msg due to queue is full: Message(Id=xxx, QoS=1, Topic=xxx)
1
  • Solution
The client sets clean session to False or the client sets automatic reconnection.
1

# TPS over limit alarm (warning)

  • Log
[Channel] Cannot publish messages to /acp_player/heartbeat due to Quota exceeded.
1
  • Solution
Timely adjustment of the client sending rate so that the sending rate is less than the TPS of the deployment limit
1

# Data Integration MySQL Resource Exception (error)

  • Log
Initiate 'mysql:resource:7aba6137' failed {{shutdown,{failed_to_start_child,worker_sup,{shutdown,{failed_to_start_child,{worker,1},timeout}}}},{child,undefined,{pool_sup,'mysql:resource:7aba6137'}
1
  • Solution
Checking MySQL Resources in Data Integration
1

# Data Integration Webhook Resource Exception (error)

  • Log
cluster_call error found, ResL: [{{emqx_web_hook_actions,on_resource_create},{error,{error,check_http_connectivity_failed}
1
  • Solution
Checking Webhook resources in data integration
1

# Data Integration Webhook Status Exception (error)

  • Log
[WebHook Action] HTTP request failed with status code: 401
1
  • Solution
Check that the authentication configured for the Webhook resource in the data integration is correctly available
1

# Data Integration Kafka Resource Exceptions (error)

  • Log
cluster_call error found, ResL: [{{emqx_bridge_kafka_actions,on_resource_create},{error,connect_kafka_server_fail,[{
1
  • Solution
Checking the status of data integration Kafka resource for availability
1

# Data integration SQL template configuration error (error)

  • Log
[RuleEngine MySql] insert failed reason: {1406,<<"22001">>, <<"Data too long for column 'topic' at row 1">>}
1
  • Solution
Check that the SQL for the rules in the data integration is written correctly
1

# Data integration response action failed (error)

  • Log
[RuleEngine MySql] Take action <<"data_to_mysql_1634029957602201470">> failed, continue next action, reason: {error,{data_to_xxx,
1
  • Solution
Check that the action for the rule in the data integration is written correctly
1
